24v PSUs
60w 24v PSU
£21.00
-
60w 24v Constant Voltage Single Output LED Driver.
Branded 'Meanwell' drivers renowned for their long term reliability and safety.
These units have built in protection against : Open Circuits, Short Circuits, Over Loads, Over Heating
IP67 - EXTERNAL & INTERNAL - 180-264VAC input only
Fully encapsulated with IP67 level (Note.5)
Protections: Short circuit / Over load / Over voltage / Over temperature
Cooling by free air convection
Pass LPS
100% full load burn-in test
Suitable for LED lighting and moving sign applications
High reliability / Low cost
2 years warranty - Datasheet Download
18w 24v PSU
£9.00
-
18w 24v Constant Voltage Single Output LED PSU.
Branded 'Meanwell' drivers renowned for their long term reliability and safety.
These units have built in protection against : Open Circuits, Short Circuits, Over Loads, Over Heating
IP67 - EXTERNAL & INTERNAL - 180-264VAC input only
Fully encapsulated with IP67 level (Note.5)
Protections:Short circuit / Over load / Over voltage / Over temperature
Cooling by free air convection
Pass LPS
100% full load burn-in test
Suitable for LED lighting and moving sign applications
High reliability / Low cost
2 years warranty - Datasheet Download
100w 24v PSU
£35.00
-
100w 24v Constant Voltage Single Output LED PSU.
Branded 'Meanwell' drivers renowned for their long term reliability and safety.
These units have built in protection against : Open Circuits, Short Circuits, Over Loads, Over Heating
IP67 - EXTERNAL & INTERNAL - 180-264VAC input only
Fully encapsulated with IP67 level (Note.5)
Protections:Short circuit / Over load / Over voltage / Over temperature
Cooling by free air convection
Pass LPS
100% full load burn-in test
Suitable for LED lighting and moving sign applications
High reliability / Low cost
2 years warranty - Datasheet Download
150w 24v PSU
£49.00
-
150w 24v Constant Voltage Single Output LED PSU.
Branded 'Meanwell' drivers renowned for their long term reliability and safety.
IP67 - EXTERNAL & INTERNAL - 180-264VAC input only
Fully encapsulated with IP67 level (Note.5)
Protections:Short circuit / Over load / Over voltage / Over temperature
Cooling by free air convection
Pass LPS
100% full load burn-in test
Suitable for LED lighting and moving sign applications
High reliability / Low cost
2 years warranty - Datasheet Download
45w 24v Plug Style PSU
£18.00
-
45w 24v 'Plug In' style Power Supply
Supplied with 1800mm cable and a standard 2.1mm DC Male plug end wired in.
Ready to use right out of the box.
We sell the 2.1mm Female DC sockets if required -
No load power consumption
Protections: short circuit//overload voltage/overload current
UK and European versions available
Compact and light-weight
Withstands operating environment of 0-40°C
Efficiencies up to 86%
1 year warranty - Datasheet Download
60w 24v Plug Style PSU
£29.00
-
60w 24v 'Plug In' style Power Supply
Supplied with 1800mm cable and a standard 2.1mm DC Male plug end wired in.
Ready to use right out of the box.
We sell the 2.1mm Female DC sockets if required -
No load power consumption
Protections: short circuit//overload voltage/overload current
UK and European versions available
Compact and light-weight
Withstands operating environment of 0-40°C
Efficiencies up to 86%
1 year warranty
15w 24v Plug Style PSU
£12.00
-
15w 24v 'Plug In' style Power Supply
Supplied with 1800mm cable and a standard 2.1mm DC Male plug end wired in.
Ready to use right out of the box.
We sell the 2.1mm Female DC sockets if required -
No load power consumption
Protections: short circuit//overload voltage/overload current
UK and European versions available
Compact and light-weight
Withstands operating environment of 0-40°C
Efficiencies up to 86%
1 year warranty - Datasheet Download
35w 24v PSU
£19.00
-
35w 24v Constant Voltage Single Output LED Driver.
Branded 'Meanwell' drivers renowned for their long term reliability and safety.
These units have built in protection against : Open Circuits, Short Circuits, Over Loads, Over Heating
IP67 - EXTERNAL & INTERNAL - 180-264VAC input only
Fully encapsulated with IP67 level (Note.5)
Protections: Short circuit / Over load / Over voltage / Over temperature
Cooling by free air convection
Pass LPS
100% full load burn-in test
Suitable for LED lighting and moving sign applications
High reliability / Low cost
2 years warranty - Datasheet Download
20w 24v PSU
£13.00
-
20w 24v Constant Voltage Single Output LED Driver.
Branded 'Meanwell' drivers renowned for their long term reliability and safety.
These units have built in protection against : Open Circuits, Short Circuits, Over Loads, Over Heating
IP67 - EXTERNAL & INTERNAL - 180-264VAC input only
Fully encapsulated with IP67 level (Note.5)
Protections:Short circuit / Over load / Over voltage / Over temperature
Cooling by free air convection
Pass LPS
100% full load burn-in test
Suitable for LED lighting and moving sign applications
High reliability / Low cost
2 years warranty - Datasheet Download
240w 24v PSU
£89.00
-
240w 24v Constant Voltage Heavy Duty LED PSU.
This slim, low profile unit is designed for long term reliability and safety.
.
There are 2 parallel outputs totalling a max output of 240w.These units are not dimmable if you wish to dim the LED strip then you must place a dimmer on the low voltage side
Rated IP67
-
Universal AC input / full range
Built-in active PFC function, PF>0.93
Protections: Short circuit/Over load/Over voltage/Over temperature
Cooling by free air convection.
Rated IP67 for indoor and outdoor use.
Built-in constant current limiting circuit
Built-in fan speed control
Remote ON-OFF control(Optional)
LED indicator for power on
100% full load burn-in test
Fixed switching frequency at PFC:67KHz PWM:134KHz
3 years warranty - Datasheet Download
500w 24v PSU
£137.00
-
500w 24v 20.9A Constant Voltage Single Output LED Driver. Designed for long term reliability and safety, this slim, low profile unit has built in protection against : Open Circuits, Short Circuits, Over Loads, Over Heating.
These are open frame power supplies and need to be positioned internally, with good airflow, but out of reach due to the partially closed terminals.
-
Universal AC input / full range
Built-in active PFC function, PF>0.93
Protections:Short circuit/Over load/Over voltage/Over temperature
Built-in cooling fan speed control
Built-in fan speed control
LED indicator for power on
100% full load burn-in test
Fixed switching frequency at PFC:67KHz PWM:134KHz
3 years warranty - Datasheet Download
Â
240w 24v PSU
£67.00
-
Meanwell 240w 24v Constant Voltage LED Driver. Designed for long term reliability and safety, this slim, low profile unit has built in protection against : Open Circuits, Short Circuits, Over Loads, Over Heating. There are 2 parallel outputs totalling a max output of 240w.
These are open frame power supplies and need to be positioned internally, with good airflow, but out of reach, due to the partially closed terminals.
- Size: 190*93*50mm (L*W*H)
Universal AC input / full range
Built-in active PFC function, PF>0.95
Protections:Short circuit/Over load/Over voltage/Over temperature
Forced air cooling by in-built DC Fan
Built-in fan ON-OFF control
LED indicator for power on
Fixed switching frequency at 90KHz
3 years warranty - Datasheet Download
200w 24v PSU Dimmable
£96.00
-
200w 24v Dimmable Constant Voltage LED PSU.
0-10V/Potentiometer/1-10VPWM dimmable
IP66 - EXTERNAL & INTERNAL - 100-265VAC input only
Rated Current: 8.33A
Fully encapsulated with IP66
Protections:Short circuit / Over load / Over voltage / Over temperature
Cooling by free air convection
85% full load burn-in test
Suitable for LED lighting and moving sign applications
High reliability / Low cost
1 year warranty - Datasheet Download
200w 24v PSU
£80.00
-
200w 24v Constant Voltage LED Driver. Designed for long term reliability and safety, this slim, low profile unit has built in protection against : Open Circuits, Short Circuits, Over Loads, Over Heating.
Ecopac Branded PSU - 180-305VAC 50hz
Input Voltage 24vdc
Operating Voltage Max 8.3amp
Output Wattage 180 x 66 x 32
Dimensions
Rated IP67
2 years warranty - Datasheet Download
480w 24v PSU
£192.00
-
480w 24v 20A Constant Voltage Single Output LED Driver.
This slim, low profile unit is designed for long term reliability and safety.The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications.
The HLG-480H is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system. -
Size: 262 x 125 x 44mm
Universal AC input / full range
Built-in active PFC function, PF>0.93
Protections: Short circuit/Over load/Over voltage/Over temperature
Built-in cooling fan speed control
Built-in fan speed control
LED indicator for power on
100% full load burn-in test
Fixed switching frequency at PFC:67KHz PWM:134KHz
3 years warranty - Datasheet Download

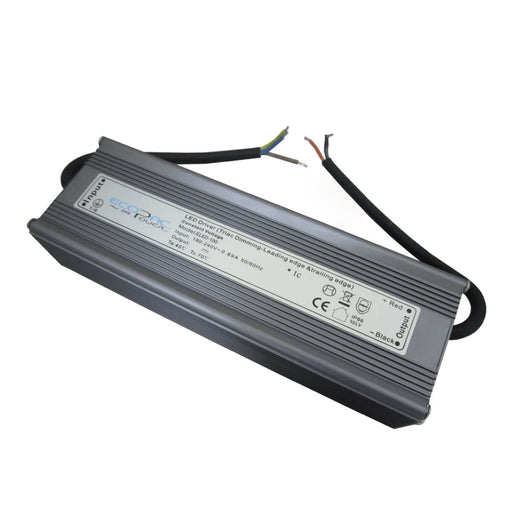

100w 24v PSU Triac Dimmable
£76.00
-
100w 24v Triac (Mains) Dimmable LED PSU.
Works with leading edge Triac dimmers
IP66 - EXTERNAL & INTERNAL - 180-264VAC input only
Rated Current: 4.16A
Fully encapsulated with IP66
Protections:Short circuit / Over load / Over voltage / Over temperature
Cooling by free air convection
85% full load burn-in test
Suitable for LED lighting and moving sign applications
High reliability / Low cost
1 year warranty - Datasheet Download

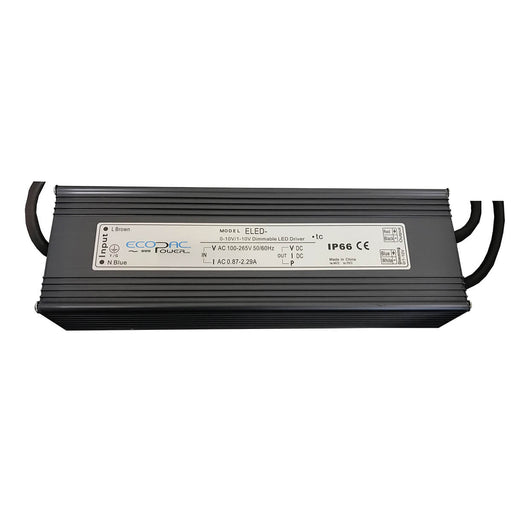

100w 24v PSU Dimmable
£68.00
-
100w 24v Dimmable Constant Voltage LED PSU.
0-10V/Potentiometer/1-10V PWM dimmable
IP66 - EXTERNAL & INTERNAL
- 100-265VAC input only
Rated Current 4.15A
Fully encapsulated with IP66
Protections:Short circuit / Over load / Over voltage / Over temperature
Cooling by free air convection
85% full load burn-in test
Suitable for LED lighting and moving sign applications
High reliability / Low cost
1 year warranty - Datasheet Download

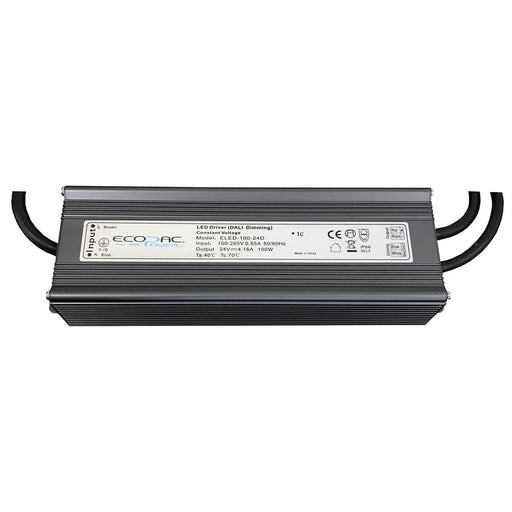

100w 24v PSU DALI Dimmable
£72.00
-
100w 24v DALI Dimmable Constant Voltage LED PSU.
Dimming Range from 0.1% to 100%
IP66 - EXTERNAL & INTERNAL
- 100-265VAC input only
Rated Current 4.16A
Dimming Range from 0.1% to 100%
Fully encapsulated with IP66
Protections:Short circuit / Over load / Over voltage / Over temperature
Cooling by free air convection
Pass LPS
85% full load burn-in test
Suitable for LED lighting and moving sign applications
High reliability / Low cost
2 years warranty - Datasheet Download
320w 24v PSU
£154.00
-
320w 24v Constant Voltage Heavy Duty LED PSU.
This slim, low profile unit is designed for long term reliability and safety.
There are 2 parallel outputs totalling a max output of 240w.These units are not dimmable - if you wish to dim the LED strip then you must place a dimmer on the low voltage side.
-
Universal AC input / full range
Built-in active PFC function, PF>0.93
Protections: Short circuit/Over load/Over voltage/Over temperature
Cooling by free air convection. Rated IP67 for indoor and outdoor use. Built-in constant current limiting circuit
Built-in fan speed control
Remote ON-OFF control(Optional)
LED indicator for power on
100% full load burn-in test
Fixed switching frequency at PFC:67KHz PWM:134KHz
3 years warranty - Datasheet Download
320w 24v PSU
£72.00
-
320w 24v 13.4A Constant Voltage Single Output LED Driver.
This slim, low profile unit is designed for long term reliability and safety.These are open frame power supplies and need to be positioned internally, with good airflow, but out of reach due to the partially closed terminals.
-
Universal AC input / full range
Built-in active PFC function, PF>0.93
Protections: Short circuit/Over load/Over voltage/Over temperature
Built-in cooling fan speed control
Built-in fan speed control
LED indicator for power on
100% full load burn-in test
Fixed switching frequency at PFC:67KHz PWM:134KHz
3 years warranty - Datasheet Download

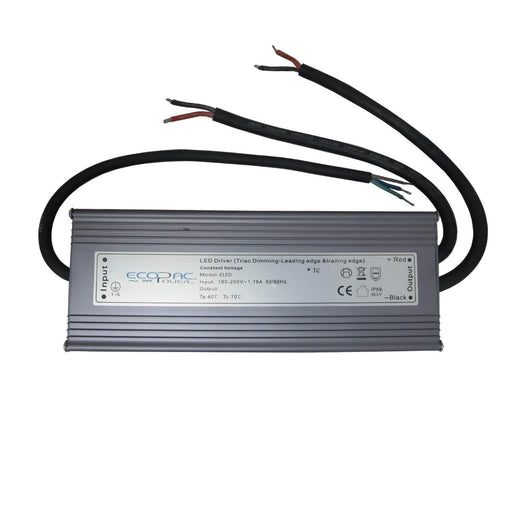

200w 24v PSU Triac Dimmable
£110.00
-
200w 24v Triac (Mains) Dimmable LED Driver.
Works with leading edge Triac dimmers
These units have built in protection against : Open Circuits, Short Circuits, Over Loads, Over Heating
IP66 - EXTERNAL & INTERNAL - 180-240VAC input only
Rated Current: 8.33A
Fully encapsulated with IP66
Protections:Short circuit / Over load / Over voltage / Over temperature
Cooling by free air convection
86% full load burn-in test
Suitable for LED lighting and moving sign applications
High reliability / Low cost
1 year warranty - Datasheet Download
