Dimmers
Rotary Dimmer, 30A
£15.50
-
This little unit packs a big punch with a massive 30A capability.
From 100% full brightness down to 20% without flickering.
It's to be placed between the 12v/24v supply of the PSU and the LED.
Simply turn the dial to adjust the brightness to your personal needs.
Due to the dimmer having open screw terminals, it would need to be placed in a waterproof enclosure if the dimmer needs to be situated outside. It doesn't need airflow.
- Operating Voltage : 12v or 24v
Temperature Range: -20 to 60C
Dimensions: 83 x 64 x 24mm + fitting plates
Output Current: Max 30A
**To figure out how many amps your LED will use, divide the total number of Watts by the voltage.
ie: 200 x SG3 LED modules @ 0.3w each = 60w total - 60w divided by 12v = 5amps
Rotary Dimmer 8A
£12.00
- 100% full brightness down to 20% without flickering.
Sits between the PSU and the lights
Simply turn the dial to adjust the brightness to your personal needs
The controller itself will need to be protected from the weather and can either be positioned inside the sign, a waterproof junction box or inside the building.
Will work with any of our 12v or 24v single colour modules and strips. - Input Voltage: 12/24vdc
Max Current Load: 8A
Max Output Power: 96w/192w (12v/24v)
Working Temp: -20C ~ 55C
Controller Size: 89*59*35mm + knob
**To figure out how many amps your LED will use, divide the total number of Watts by the voltage.
ie: 20 x Sgled3 LED modules @ 0.3w each = 6w total - 6w divided by 12v = 0.5amps
Micro Dimmer/Flasher with Remote 6A
£12.00
- This easy to operate ultra compact, micro dimmer has multiple options.
The Remote Control has 8 modes and 'one press' feature for 25%, 50% and 100% brightness.
It's to be placed between the PSU and the LEDs to control the LED functions.
By using convenient 2.1mm DC fixings at either end it couldn't be simpler.
The connectors can be cut off and used with bare wires if necessary.
Simple!
This product isn't waterproof. It needs to be suitably protected from the weather and can either be positioned in a waterproof junction box or inside the building/house.
Will work with any of our 5v/12v/24v single colour modules and strips. - Input Voltage: 5-24vdc
Max Current Load: 6A
Max Outpur Power: 30w/72w/144w (5/12v/24v)
Working Temp: -30C ~ 55C
Controller Size: 42*12*3mm + connectors
Working Frequency: 433.92Mhz
Range: 30m in open space
Micro Dimmer/Flasher 12A
£7.00
- This easy to operate ultra slim, micro dimmer has multiple options.
It's to be placed between the PSU and the LEDs to control the LED functions.
By using convenient 2.1mm DC fixings at either end it couldn't be simpler.
The connectors can be cut off and used with bare wires if necessary.
To change the modes, brightness and speeds just press the buttons, Job Done!
This product isn't waterproof. It needs to be suitably protected from the weather and can either be positioned in a waterproof junction box or inside the building/house.
Will work with any of our 5v/12v/24v single colour modules and strips. - Input Voltage: 5-24vdc
Max Current Load: MAX 12A
Max Outpur Power: 60w/144w/288w (5v/12v/24v)
Working Temp: -30C ~ 55C
Controller Size: 42*12*3mm + connectors

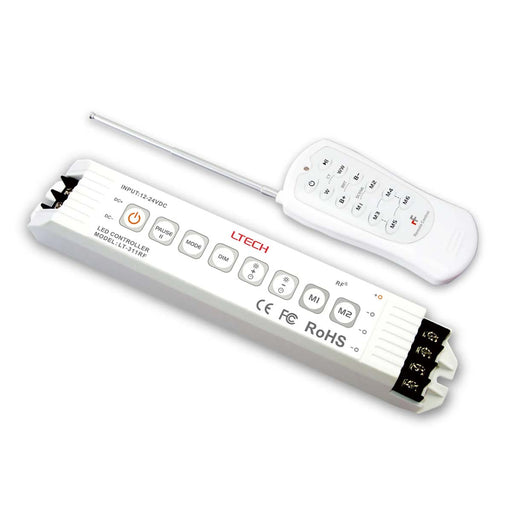

311 Dimmer/Flasher with Remote 18A
£45.00
-
Our 311RF Dimmer with Remote are robust & powerful. With a whopping 18A to play with, this will control heavy duty signs & displays.
The controller has all the buttons you'd need right on the controller itself, but it comes with a handy remote which mirrors the buttons for ease of use.
With various memory buttons, speed, brightness and a mode button that lets you choose from 6 pre-programmed effects and the option to program your own basic scene, you'll be spoilt for choice.
The controller itself will need to be protected from the weather and can either be positioned inside the sign, a waterproof junction box or inside the building.
Will work with any of our 12v/24v single colour modules and strips.
- Input Voltage: 12-24vdc
Max Current Load: 6A x 3Channels MAX 18A
Max Outpur Power: 216w/432w (12v/24v)
Working Temp: -30C ~ 55C
Controller Size: 211*40*30mm
Remote Size: 122*50*16mm
Working Frequency: 433.92Mhz
Remote Working Voltage: 12V (Battery A23, V23GA, MN21)
Range: 100m
Mini Dimmer with Remote 9A
£28.00
- The only thing limited with this Mini Dimmer and Remote control is space!
The remote has a handy storage case that can be wall mounted for convenience and a sleep mode to preserve battery life.
From 100% down to nil, the range of illumination will suit every mood.
The controller itself will need to be protected from the weather and can either be positioned inside the sign, a waterproof junction box or inside the building.
Will work with any of our 12v/24v single colour modules and strips. - Input Voltage: 12-24vdc
Max Current Load: 3A x 3Channels MAX 9A
Max Output Power: 106w/216w (12v/24v)
Working Temp: -30C ~ 55C
Controller Size: 135*30*20mm
Remote Size: 104*60*9mm
Working Frequency: 433.92Mhz
Remote Working Voltage: DC3V (Battery CR2032)
Range: 40m
1-10V Rotary Dimmer
£16.00
-
1-10V Mains Rotary Dimmer Module.
Integrated over temperature protection fuse
- Input Voltage: 1-10V
Safety to EN60669-2-1:2000
EMC Standards: EN550155
Dimensions: 62.5 x 26.2 x 46.3mm - Datasheet Download
Triac Rotary Dimmer
£16.00
-
Triac (Mains) Dimmer Module.
Leading edge phase control
Integrated over temperature protection fuse
- Input Voltage: 220-240V
Safety to EN60669-2-1:2000
EMC Standards: EN550155
Dimensions: 62.2*26.4*48.5mm - Datasheet Download
720 Linear Driver RGB/Dali/DMX
£111.00
-
LINEARdrive 720D is a constant voltage LED driver. It features four LED outputs that can be controlled directly from the controllers interface or individually via DMX or DALI systems.
You can configure the driver over its intuitive, 3-button user interface with display: it lets you configure the number of channels, DMX or DALI settings for networked mode and show, colour and dimming values for standalone operation.
The driver features wire restraints which make it perfectly suited for independent installations. - Voltage: 12 - 28 VDC for LINEARdrive 100D/180D/720D1
LINEARdrive 720D: 24A, irrespective of PSU voltage
Operating Voltage: 5V, 12V, 24V or 48V
Size: 121 x 39 x 39mm
Max 24A - 6A x 4ch - Quick Start Guide Download
Datasheet
