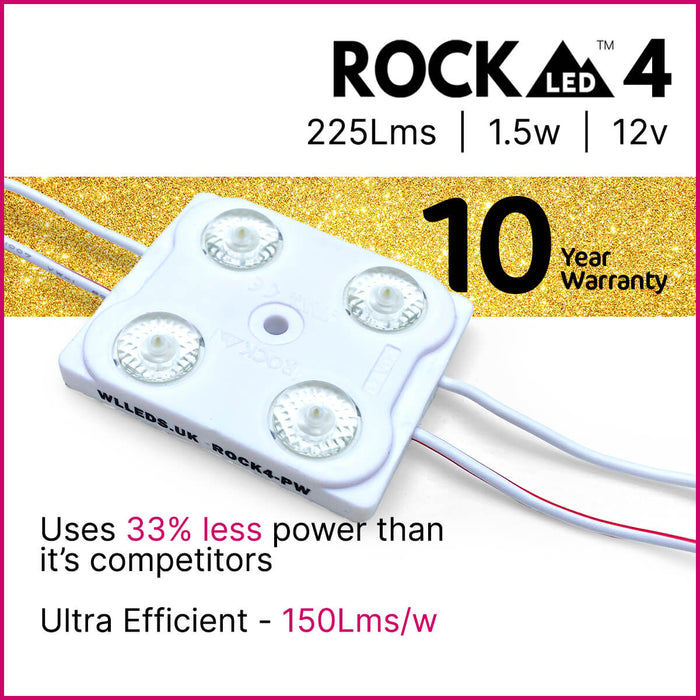

ROCK4 LED Module – Market-Leading Efficiency for Large-Scale Signage
Our ROCK4 LED Modules deliver exceptional efficiency at >160Lm/W with an unbeatable 10-year warranty, making them the ultimate choice for large-format signage applications. With a unique 3:1 lens design requiring just 9 modules per square metre for lightbox illumination, ROCK4 significantly reduces installation costs while maintaining superior brightness and uniform coverage.
Key Advantages:
-
>160Lm/W Market-Leading Efficiency – Highest luminous output in the ROCK series for maximum energy savings
-
9 Modules per m² Coverage – Revolutionary efficiency reduces module count and installation time
-
175° Ultra-Wide Beam Angle – 3:1 lens technology ensures complete coverage with zero hotspots
-
10-Year Replacement Warranty – Unbeatable reliability backed by our industry-leading guarantee
-
Integrated Heat Management – Built-in heat sink reduces light degradation and maintains colour consistency
Perfect Applications:
-
Deep Built-Up Letters – Optimised for 80-200mm return depths with exceptional uniformity
-
Large-Format Lightboxes – Maximum efficiency with minimal module requirements
-
Architectural Features – Powerful illumination for substantial installations
-
High-Impact Signage – Superior performance for maximum visibility applications
-
Commercial Displays – Cost-effective solution for large-scale retail installations
Installation Advantages:
-
Pre-Mounted VHB Adhesive – Professional-grade 3M tape for instant, secure mounting
-

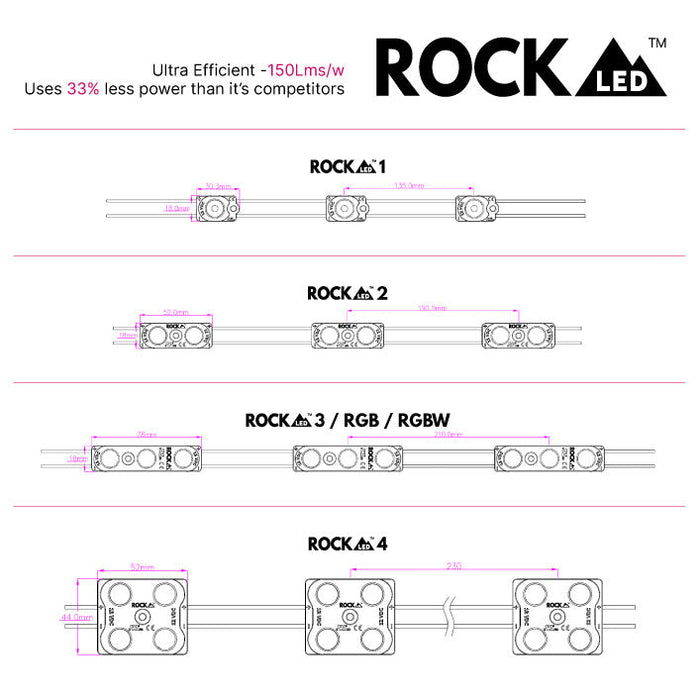

Efficient Form Factor – 52mm x 44mm x 9.5mm provides maximum coverage per module
-
Wide Spacing Capability – 180-230mm centre-to-centre for faster installation
-
12V DC Operation – Compatible with standard power supplies for simple integration
System Planning Made Simple:
-
Per Module = 1.5W consumption, 240 lumens output
-
1m² Lightbox = Only 9 modules required
-
60mm Returns = 180mm centre-to-centre spacing
-
80mm Returns = 230mm centre-to-centre spacing (optimal efficiency)
-
Power Planning = Allow 20% headroom: 100W PSU = 53 modules max (79W)
Browse our 12V LED Power Supplies and LED Controllers or contact our technical team for free consultation: sales@weloveleds.co.uk
Professional Quality You Can Trust:
Engineered for 50,000+ hour operation with our exceptional 10-year replacement warranty. SMD2835 LED technology ensures consistent colour rendering and minimal degradation throughout the product lifecycle.
Planning a bigger project? We offer complete signage solutions and technical support for commercial installations.
Professional LED Module Technology
The ROCK4 utilises advanced SMD2835 LED technology with unique 3:1 optical lenses, delivering exceptional light distribution specifically engineered for large-format signage. The 175° beam angle combined with superior luminous efficiency ensures complete coverage with minimal module density, revolutionising installation efficiency for lightbox applications.
Technical Specifications
- Model: ROCK4 LED Module
- LED Type: SMD2835
- Voltage: 12V DC constant voltage
- Power Consumption: 1.5W per module
- Luminous Flux: 240 lumens per module
- Luminous Efficiency: >160Lm/W
- Beam Angle: 175° (3:1 lens technology)
- Colour Temperature: Pure White (6300K-7300K)
Environmental & Performance
- Operating Temperature: -25°C to +55°C
- Storage Temperature: -40°C to +80°C
- Humidity: 10-90% RH non-condensing
- Dimensions: 52mm × 44mm × 9.5mm per module
- Weight: 12g per module
- IP Rating: IP67 (Fully submersible protection)
- Lifespan: 50,000+ hours L70
- Warranty: 10-year replacement warranty
Optical Performance
3:1 Lens Technology: Revolutionary optical design achieves unprecedented coverage efficiency, requiring just 9 modules per square metre for uniform lightbox illumination. This advanced lens system provides a 3:1 ratio of coverage to depth, eliminating hotspots while dramatically reducing installation time and costs.
Installation & Compatibility
- Mounting: Pre-applied VHB adhesive tape
- Module Spacing: 180-230mm flexible spacing options
- Chain Configuration: 20 modules per chain (~4 per metre)
- Dimmable: Yes - compatible with PWM and voltage dimmers
- Compatible PSUs: All 12V constant voltage drivers
- Compatible Controllers: Works with all single-colour controllers
Quality Notes
- Batch Consistency: While we strive to avoid mixing batches in the same order, LED modules purchased at different times may have slight variations in colour
- Heat Management – Integrated heat sink maintains colour consistency and extends operational life
- Professional Installation: For optimal results, maintain recommended spacing and ensure adequate ventilation in enclosed applications
