SKU ELED-100-24V

100w 24v PSU Dimmable

  • Voltage: 24v
  • Watts: 100w
  • Dim function: 0-10v/1-10VPWM
  • IP Rating: IP66
  • Warranty: 5yr
Original price £68.00 - Original price £68.00
Original price
£68.00
£68.00 - £68.00
Current price £68.00

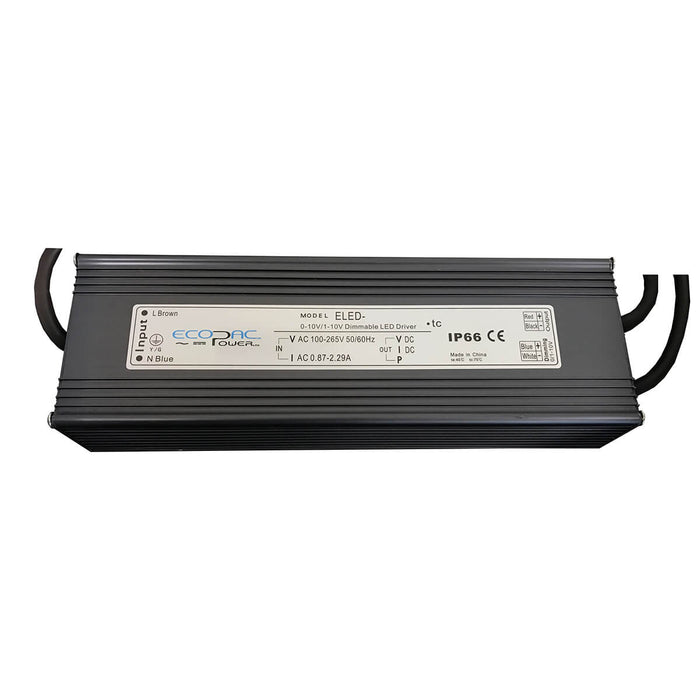

100W 24V 0-10/1-10v Dimmable Constant Voltage Single Output LED PSU

High-performance and reliable power supply solution.
For optimal longevity, it is factory recommended to run at a maximum of 95% capacity.

3 in 1 dimming function (0/1-10Vdc or 10v PWM signal or resistance).

Rated IP66: Suitable for both internal and external use.

Technical Specifications:

  • Input Voltage: 200-240VAC
  • Output Voltage: 24V
  • Output Current: 4.17A
  • Power: 100W
  • Dimensions: 230x70x43mm
  • Protection Features: Short circuit, overload, over voltage, over temperature
  • Cooling Method: Free air convection
  • Efficiency: Up to 86%
  • IP Rating: IP66
  • Warranty: 5 years RTB
