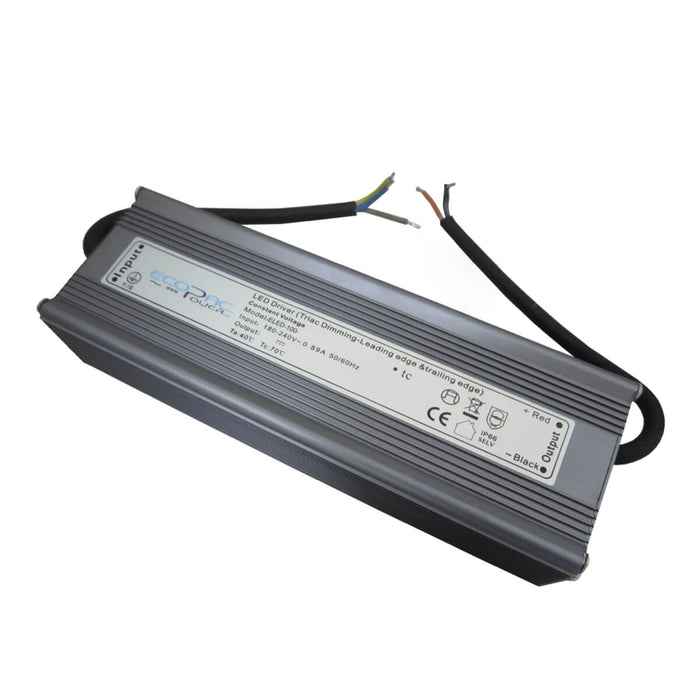

100w 24v PSU Triac Dimmable
ELED-100-24T
£76.00
-
100w 24v Triac (Mains) Dimmable LED PSU.
Works with leading edge Triac dimmers
IP66 - EXTERNAL & INTERNAL - 180-264VAC input only
Rated Current: 4.16A
Fully encapsulated with IP66
Protections:Short circuit / Over load / Over voltage / Over temperature
Cooling by free air convection
85% full load burn-in test
Suitable for LED lighting and moving sign applications
High reliability / Low cost
1 year warranty - Datasheet Download
