E10 Complete Unit
- What's Included?
- Other Info
With 13 cabochon colours & 2 LED colours to choose from you can create 1000's of combinations. If you want to mix & match, select 'mixed' from the drop down list and write the colours and quantities in the notes section on checkout. Our E10 'Complete Units' are a convenient way of adding more lighting to our kits. Each kit page tells you how many additional lights can be added without upgrading the PSU supplied with the kit. Just select the colours from the drop down list and we'll send you all you need to get going.
Download our guides:
Cabochon Kit Checklist
Cabochon Fitting Guide
We can tailor make kits, suited specifically for your needs, just let us know your requirements by emailing them to firstname.lastname@example.org
Please ensure you have enough LEDs to complete your whole project. Although we endeavour to never mix batches on the same order, LEDs bought at different times cannot be guaranteed to have the same wattage and therefore to light up the same.

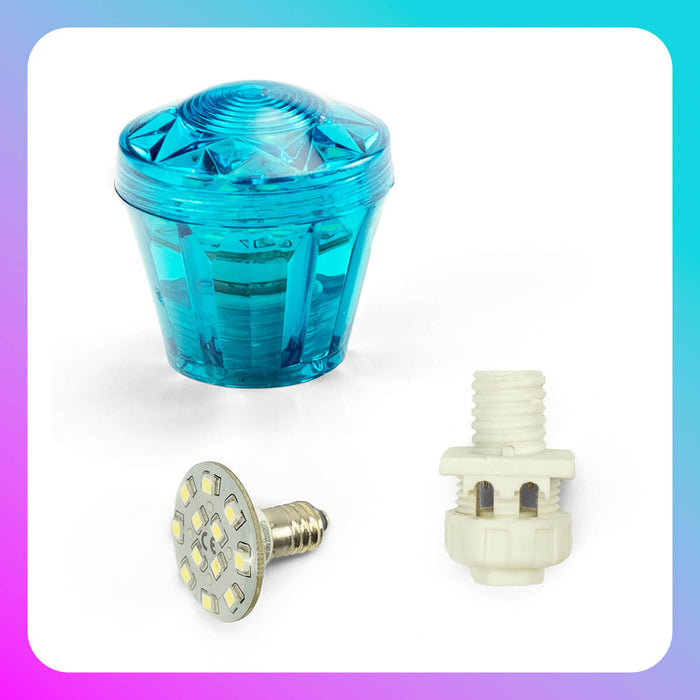

- The complete unit includes:
1 x E10 Cabochon Cap and Base
1 x E10 Lampholder and back nut
1 x E10 24v, 0.85w-1.2w, LED bulb - current batches: 1.1w & 1.2w
We can tailor make kits, suited specifically for your needs, just let us know your requirements by emailing them to email@example.com
- E10 Cabochons are 40mm dia tapering down to 25mm x 43mm high.
- Max thickness of material for the lampholder to push through is 10mm.
- Apx 25mm clearance required on the backside of the material for the wiring and lampholder nut
- LED bulbs - 0.85-1.2w 24v
- Each lampholder is rated upto 240v but is stamped with 24v for the kits purposes.
Our E10 Fairground lights create a strikingly radial effect from the base, while the cap generates a highly attractive Diamond like effect, emitting powerful luminosity from all angles, for all to see.
They are made of multicoloured transparent methachrylate and has a bright effect with central luminous lens. It comes in 2 parts with a lens cap and a conic base with internal thread for an E10 socket.
Fitting - Drill a 14mm hole in your panel or letter face, push the lamp holder fitting through the back of the hole and screw the E10 Base to the front on the thread of the spike fitting. Easy. The LED or incandescent bulb can be screwed in through the centre of the base and then the cap as screwed over the top. This isn't only a very simple method for the initial fix, it is also perfect for the maintenance of the sign as you only need to be able to get to the face.
