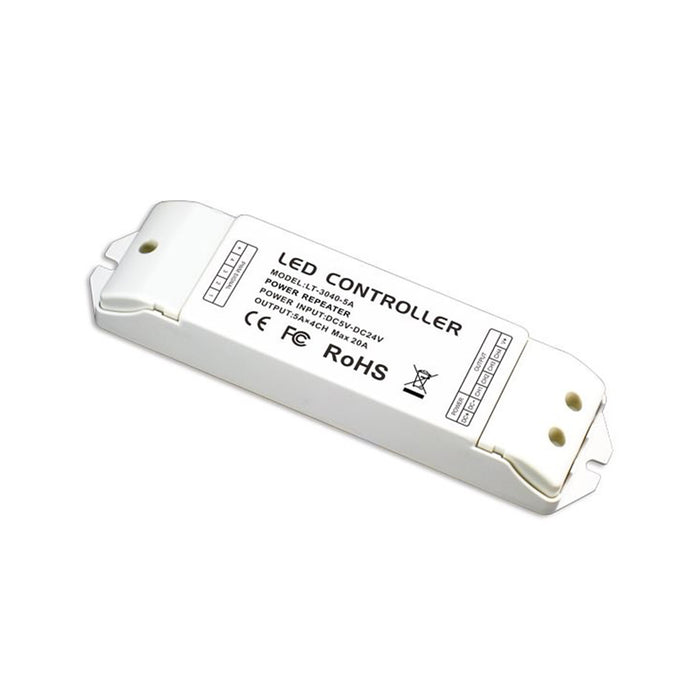

LT-3040-5A | Signal Amplifier/Repeater | RGBW

LT-3040-5A | Signal Amplifier/Repeater | RGBW

£60.00 - £60.00
£60.00
£60.00 - £60.00
£60.00

Need to run a single RGB/RGBW controller across more strip or module than the voltage drop will allow?
Drop in the LT-3040-5A RGBW Signal Amplifier/Repeater and keep every pixel as bright as the first.

  • Boosts the data + power coming out of any 5 V – 24 V RGB or RGBW controller

  • Lets one remote/run manage multiple extra lengths (beyond 5 m @ 12 V or 10 m @ 24 V)

  • Simple “controller → amplifier → LEDs” daisy-chain—add more amps for truly long runs

  • Perfect partner for our 12 V / 24 V RGBW strips and modules

Mount the amplifier inside the sign body, in a waterproof junction box, or indoors; just keep it dry and within the -30 °C – 55 °C operating window.

  • RGBW Signal Amplifier Unit

You’ll also need:

  1. Compatible 5 V – 24 V RGB/RGBW controller
  2. Matching 5 V – 24 V DC power supply sized to total load
  3. Enclosure or protected location for outdoor installs

Technical Details

  • Input voltage: 5 – 24 V DC
  • Channels / load: 4 × 5 A (max 20 A total)
  • Output power: 100 W / 240 W / 480 W (at 5 V / 12 V / 24 V)
  • Working temperature: -30 °C → 55 °C
  • Housing size: 175 × 44 × 30 mm (L × W × H)
  • IP rating: IP20 (protect from moisture)
  • Warranty: 12months

Notes:

  • Use one amplifier every time the LED load past a controller output exceeds 5 m (12 V) or 10 m (24 V) of strip, or equivalent module load.
  • Chain additional amplifiers if you need still longer runs.
  • LEDs bought at different times may vary slightly in colour; order full project quantities for perfect uniformity.
