Wireless Receiver

LT-3053-5A

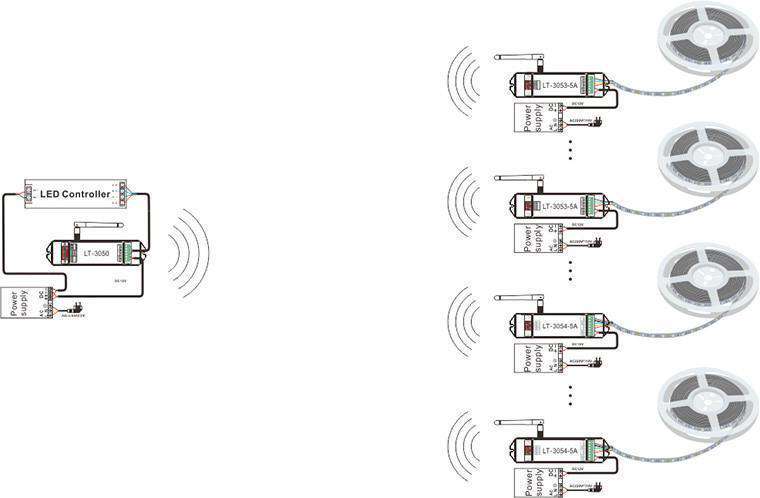

  • The LED Receiver gets information wirelessly via the 3050 wireless transmitter using a 300Hz~20KHz PWM pulse signal.
    *This receiver needs to be used with our transmitter LT-3050.
    When the 2 are set to the same frequency the receiver will repeat the signal sent from this transmitter. Multiple receivers can be used with the same transmitter.
    A sending end can configure unlimited receiving ends.
    A very good solution for the LED project that needs to sync control wirelessly i.e, between buildings, both sides of the roads, river banks and bridges, etc.etc.


    Can be used with single colour and RGB strips/modules.

  • Operating Voltage : 5v~24v
    Max Current Load: 5A x 3ch MAX 15A
    Max Output: 75w/180w/360w (5v/12v/24v)
    Working Frequency Channel: 2.4GHz ISM 64 channels
    Receiver Sensitvity: -96dBm
    Range: Up to 350m
    Dimensions: 175 x 44 x 30mm + aerial


  • Datasheet Download
