SGMICRO LED Module

Original price £0.45 - Original price £0.45
Original price
£0.45
£0.45 - £0.45
Current price £0.45
Colour: Pure White (6300-7300K)
  • Features
  • More Info
  • Technical
  • SGMICRO FEATURES

    -  Ideal for acrylic encapsulation 30-40mm depth
    -  High efficiency LED modules >104Lm/w!!
    -  Available in 1 colour, Pure White (6500k)
    -  12v / 0.24w / 25Lm
    -  Beam angle 120°
    -  IP20
    -  Industry leading 1yr Warranty

    Use these LEDs with our 12v Power Supplies Dimmers

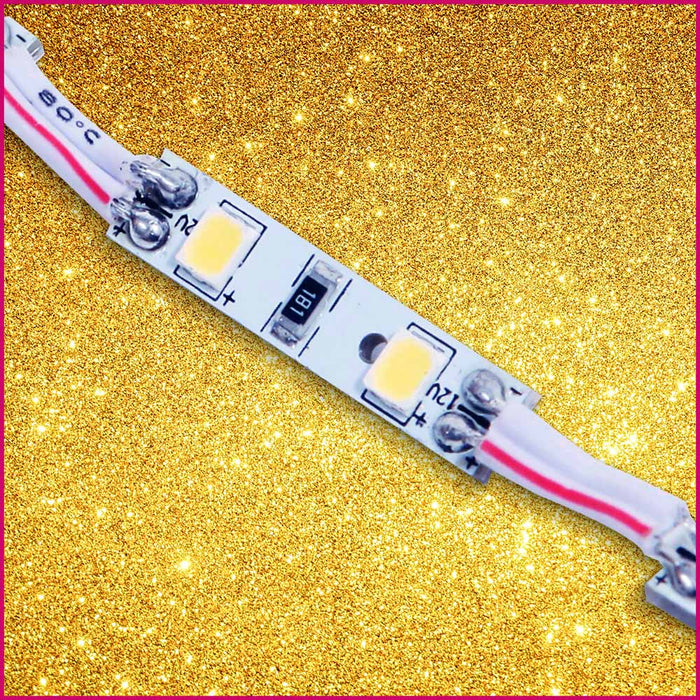

  • Our SGMICRO LED Module is amongst the tiniest of tiny LEDs. at only 24mm*5mm*2.5mm it's a perfect for those tight spaces without compromising on quality and still giving nice even light.
    For exceptional versatility, the SGMicro has 2 diodes per module and a wire length of 10mm between modules.
    Please download our specification PDF, in the tabs above, for more information.

    Available in 1 colour: Pure White (6500K)

    This is the only module we have that is rated IP20 and is ideal for use in internal signage. Can be fit using a small tack through the hole or pushed into an appropriate groove. It includes an integrated heat sink to reduce light degradation and colour deviation


    Download the Datasheet

    The 'SG' brand of LED modules are an efficient sign grade module. They offer the specification you need for most general signage requirements, with rock bottom prices.

    Please Note:
    Whilst we endeavour to never mix batches on the same order, LEDs bought at different times, may have slightly different colours.


  • Spacings

    -  35mm - Full Stretch Centre to centre spacing
    -  40mm - Minimum return depth for even illumination
    -  Row & LED Spacings Guide
        - 40mm Returns <  = 35mm spacings


    Technical

    -  LED:  SMD2835
    -  Size:  25mm x 5mm x 2.5mm
    -  Quantity: 20 per chain - approx 29 p/m
    -  Voltage:  12V DC
    -  Wattage:  0.24W per module (at full power)
    -  Colour:  Pure White (6500K)
    -  Lumens:  104LM/w
    -  Fixing:  Push fit, tack
    -  Beam Angle:  120°
    -  Warranty:  up to 1 Years
    -  Rating:  IP20
