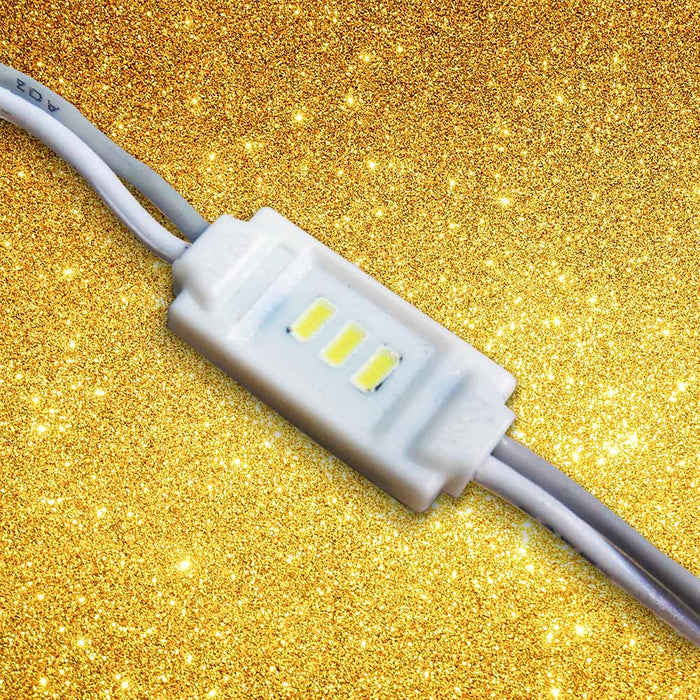

SG1 LED Module

Suitable Applications:

Built up letters with a depth from 50-70mm
👉 Best bang for your buck between 60-70mm 👍

  • Voltage: 12v
  • Watts: 0.3w
  • Lumens: 27lm
  • IP Rating: IP65
  • Warranty: 1yr
Original price £0.45 - Original price £0.45
Original price
£0.45
£0.45 - £0.45
Current price £0.45
Colour: Pure White
  • Features
  • More Info
  • Technical
  • SG1 FEATURES

    -  Ideal for channel letter applications 50-60mm depth
    -  High efficiency LED modules >90Lm/w!!
    -  Available in 2 colours, Pure White (6500k) and Warm White (3200k)
    -  12v / 0.3w / 27Lm
    -  Beam angle 120°
    -  IP65
    -  Industry leading 1yr Warranty

    Use these LEDs with our 12v Power Supplies & Dimmers






  • Our SG1 LED Module is ultra slim, tiny and very bright. Perfect for halos on flat cut lettering, shallow built up letters or awkward shapes where space is at a premium. The SG1 module has a beam angle of 120° so works very well with channel letters from a return depth of 50mm.
    Please download our specification PDF, in the tabs above, for more information.

    Available in 2 colours: Pure White (6500K) & Warm White (3000K)

    As with most of our LED modules, it is completely encapsulated for outdoor use and comes with suitable VHB tape already applied. It includes an integrated heat sink to reduce light degradation and colour deviation


    Download the Datasheet

    The 'SG' brand of LED modules are an efficient sign grade module. They offer the specification you need for most general signage requirements, with rock bottom prices.

    Please Note:
    Whilst we endeavour to never mix batches on the same order, LEDs bought at different times, may have slightly different colours.


  • Spacings

    -  64mm - Full Stretch Centre to centre spacing
    -  50mm - Minimum return depth for even illumination
    -  Row & LED Spacings Guide
        - 50mm Returns <  = 50mm spacings
        - 60mm Returns <  = 64mm spacings


    Technical

    -  LED:  SMD2835
    -  Size:  18mm x 8mm x 3mm
    -  Quantity: 20 per chain - approx 16 p/m
    -  Voltage:  12V DC
    -  Wattage:  0.3W per module (at full power)
    -  Colours:  Pure White (6300/7300K) and Warm White (2700/3200K)
    -  Lumens:  90LM/w
    -  Fixing:  Pre-mounted adhesive tape to rear
    -  Beam Angle:  120°
    -  Warranty:  up to 1 Years
    -  Rating:  IP65
