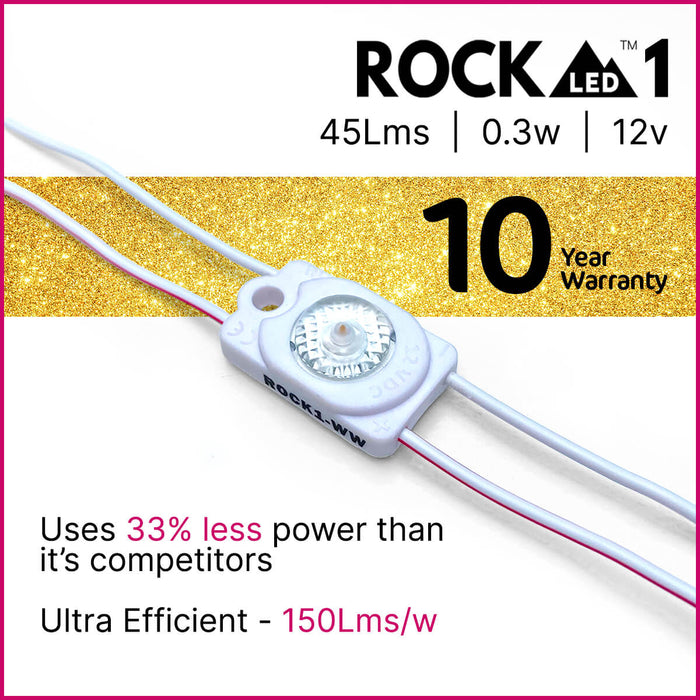

ROCK1 LED Module

Original price £0.70 - Original price £0.70
Original price
£0.70 - £0.70
Current price £0.70

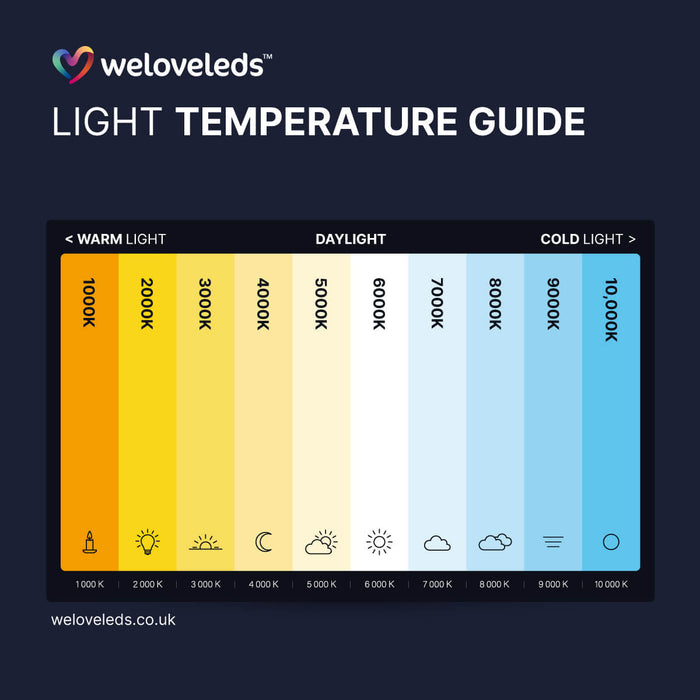

Colour: Pure White (6600-7300K)
  • Features
  • More Info
  • Technical

  • Rock LED

    -  Ideal for sign lighting applications - 40mm minimum depth
    -  Our unique 3:1 lens means you use upto 50% less ROCK1 modules to light a channel letter, than some other modules.
    -  High efficiency LED modules >150Lm/w!! - A 33% saving in running costs.
    -  Available in 2 colours, Pure White** (6600k-7300k) and Warm White (3000k)
    -  12v / 0.3w / 50Lm
    -  Beam angle 175°
    -  Dmmable
    -  IP67
    -  Industry leading 10yr Warranty

    Use these LEDs with our 12v Power Supplies & Dimmers

  • Rock LED

    ROCK1 LED Modules have been designed for ultra high efficiency and long life. With an unbeatable >150Lm/w and 10yr warranty, you can't buy better. Ideal for sign lighting applications with a  40-50mm depth. The ROCK1 module has an ultra wide beam angle of 175° so works very well on slimline letters. It is completely encapsulated for outdoor use and comes with suitable VHB tape already applied. It includes an integrated heat sink to reduce light degradation and colour deviation.

    Download the Datasheet

    The 'ROCK' brand of LED modules are a high end quality LED. They offer the specification you would expect from the best, with exceptional value for money

    Warranty - Our ROCK LED range comes with a 10yr replacement warranty as standard. Any time between delivery of the goods and 10yrs after, should the modules fail we will replace them. We will require photos to show the 'problem' leds, plus pictures of the power supply and any controllers on the same system prior to sending the replacements, but assuming everything has been wired correctly and using the correct controllers/power supplies, we will replace as soon as possible. We may also need the faulty LEDs sending back to us, at our cost, to further investigate the problem.
    For more information please see Condition 10 on our Ts & Cs.

    Please Note:
    Whilst we endeavour to never mix batches on the same order, LEDs bought at different times, may have slightly different colours.

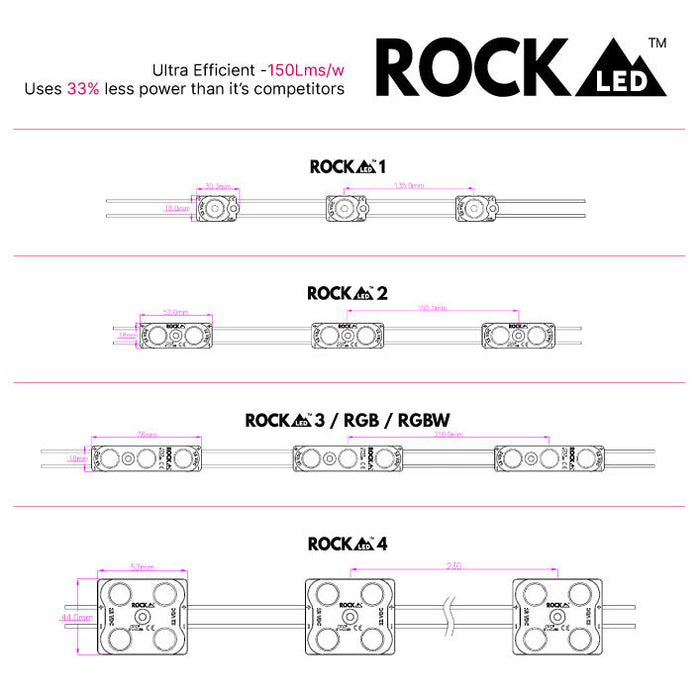

  • Spacings

    -  135mm - Full Stretch Centre to centre spacing
    -  40mm - Minimum return depth for even illumination
    -  Row & LED Spacings Guide
        - 40mm Returns <  = 120mm spacings
        - 50mm Returns <  = 135mm spacings


    -  LED:  SMD2835
    -  Size:  30.3mm x 18mm x 9.5mm
    -  Quantity: 50 per chain - approx 7 p/m
    -  Voltage:  12V DC
    -  Wattage:  0.3W per module
    -  Colours:  Pure White (6600/7300K) and Warm White (2700/3200K)
    -  Lumens:  150LM/w
    -  Fixing:  Pre-mounted adhesive tape to rear
    -  Beam Angle:  175° 3:1
    -  Dimmable:  Yes
    -  Warranty:  up to 10 Years Replacement Warranty
    -  Operating Temp:  -25°C to +55°C
    -  Rating:  IP67
