Use with other E14 components to create fairground style signs, letters and lighting
Style/Size:E14 and G45
Our E14 'Complete Units' are a convenient way of adding more lighting to our kits. Each kit page tells you how many additional lights can be added without upgrading the PSU supplied with the kit. Just select the colours from the drop down list and we'll send you all you need to get going.
With 3 LED colours & 2 fixing colours to choose from you can create a variety of combinations. If you want to mix & match, select 'mixed' from the drop down list and write the colours and quantities in the notes section on checkout.

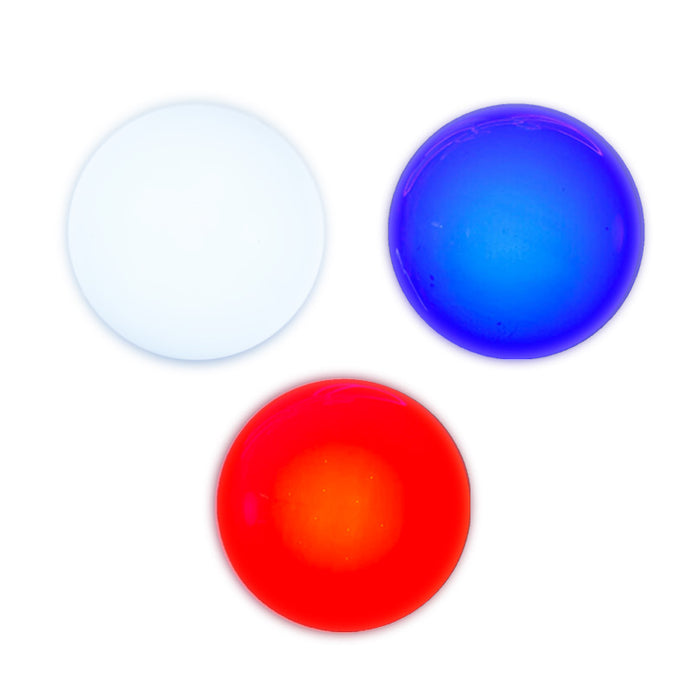

Available in Ice White 10000K, Red and Blue. All colours are opal white when not lit.
This complete unit includes: 1 x G45 Vintage Golfball Bulb 1 x E14 Lampholder & back nut 1 x E14 Face Nut
- E14 Cabochons are 60mm dia tapering down to 40mm x 63mm high - Max thickness of material for the lampholder to push through is 10mm. - Apx 25mm clearance required on the backside of the material for the wiring and lampholder nut - LED bulbs - 0.85-1.2w 24v - Each lampholder is rated up to 240v but is stamped with 24v for the kits purposes.
Our E14 Fairground lights create a strikingly radial effect from the base, while the cap generates a highly attractive Diamond like effect, emitting powerful luminosity from all angles, for all to see. They are made of multicoloured transparent methachrylate and has a bright effect with central luminous lens. It comes in 2 parts with a lens cap and a conic base with internal thread for an E14 socket.
Fitting - Drill a 20mm hole in your panel or letter face, push the lamp holder fitting through the back of the hole and screw the E14 Base to the front on the thread of the spike fitting. Easy. The LED or incandescent bulb can be screwed in through the centre of the base and then the cap as screwed over the top. This isn't only a very simple method for the initial fix, it is also perfect for the maintenance of the sign as you only need to be able to get to the face.
Cabochon Cap & Base
Power: 1.15w per led bulb
Cabochon Colours: 3 available
Max thickness of material for the lampholder to push through is 10mm.
Apx 25mm clearance required on the backside of the material for the wiring and lampholder nut if they are being fit inside a trough letter for example.
Each lampholder is rated up to 240v but is stamped with 24v for the kits purposes.
