Flat E14 Complete Unit - 15 Colours

Original price £5.25 - Original price £5.25
Original price
£5.25 - £5.25
Current price £5.25

Suitable Applications:

Use with other E14 components to create fairground style signs, letters and lighting

  • Style/Size: E14
  • Voltage: 24v
  • Wattage: 1.2w p/light
  • Lumens:
Colour: Clear
  • Description
  • Technical
  • E14 Flat Cabochon in White.

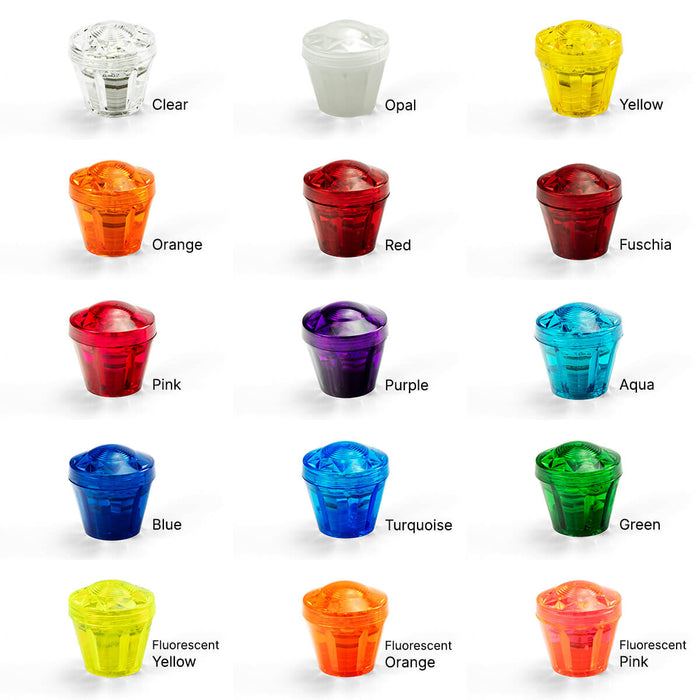

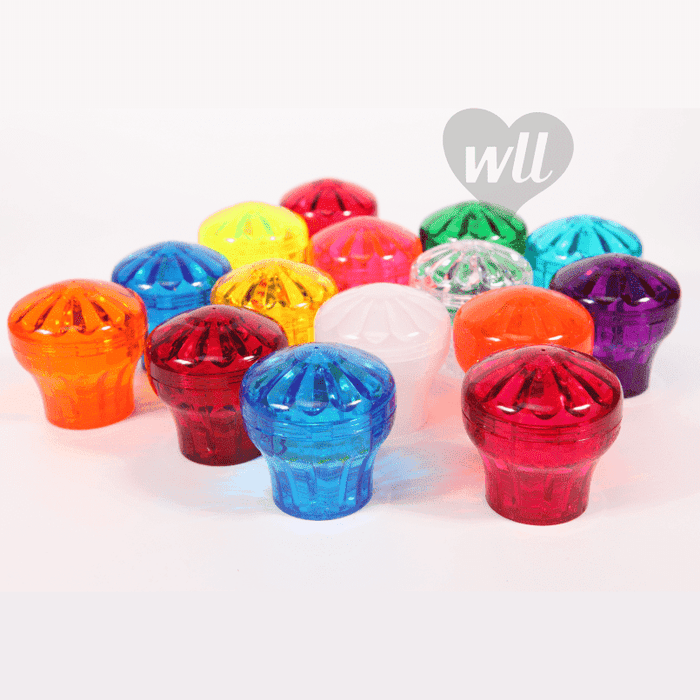

    With a choice of 15 Diamante cap colours:
    Aqua, Clear, Orange, Yellow, Blue, Green, Red, Opal, Fuchsia, Magenta, Orange, Purple, Turquoise, Fluorescent Pink, Fluorescent Yellow & Fluorescent Orange

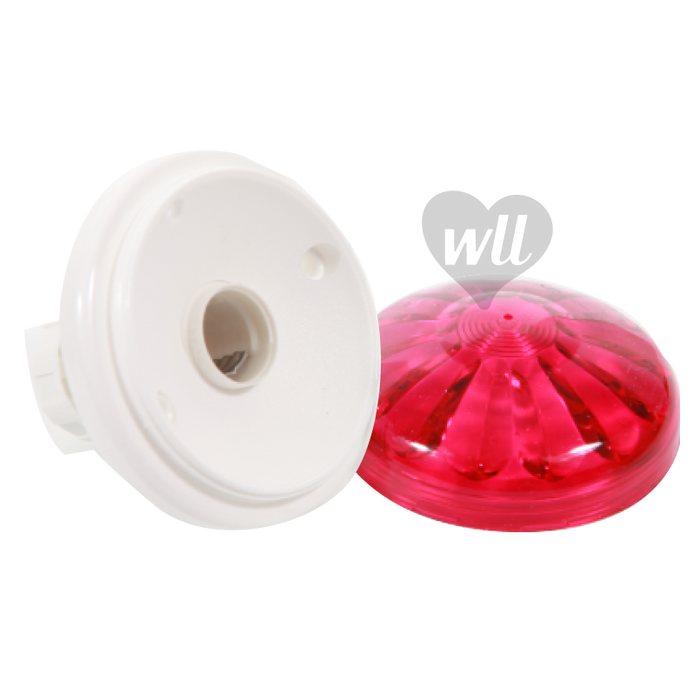

    The Flat Cabochon base is approx 64mm dia, and with the standard E14 60mm dia cap, the overall height is 30mm.
    It has an extended back which protrudes 11mm and is 22mm dia.
    A standard E14 lampholder would screw into the this part from the back
    Our E14 Flat Fairground lights create a different effect from the standard cabochons, giving an stunning illumination to the face whilst being very low profile units.
    The caps are made of multicolor transparent metachrylate and have a bright effect with central luminous lens.

    Complete unit comprises:
    1. 1no E14 Flat cabochon and cap
    2. 1no E14 Spike Lampholder and Nut
    3. 1no E14 1.6w 24v 12-LED bulb - available in Ice White only, please check for availability before ordering as there is limited stock.

    You will need an appropriately sized 24v Power Supply Unit (PSU) to illuminate these. Click here to have a look.

  • Fitting:
    Drill a 19.5mm hole in your panel or letter face, push the spike lamp holder fitting through the back of the hole and screw the E14 Flat Cabochon Adapter to the front on the thread of the spike fitting. Easy.
    The LED can be screwed in through the centre of the adapter and then the cap is screwed over the top.
    This isn't only a very simple method for the initial fix, it is also perfect for the maintenance of the sign as you only need to be able to get to the face.
  • Cabochon Cap & Base
  • LED Bulb
  • Lampholder
  • Cabochon Colours: 15 available
  • LED Colours: Pure White 8000k & Warm White 3000k
  • Material: Methachrylate
  • Max thickness of material for the lampholder to push through is 10mm.
  • Apx 25mm clearance required on the backside of the material for the wiring and lampholder nut if they are being fit inside a trough letter for example.
  • Each lampholder is rated up to 240v but is stamped with 24v for the kits purposes.
