E14 Cabochon Kits

Original price £55.00 - Original price £55.00
Original price
£55.00 - £55.00
Current price £55.00
SKU E14_Kit
  • Description
  • What's Included?
  • Using Outside?
  • Other Info
  • Our high quality E14 (60mm dia) lighting kits come with everything you need to get your project 'lit up!'. Designed with ease of use in mind, these kits are perfect for you to add iconic 'Fairground' lighting to your own items such as signage, home decor, art installations or anything else that you want to make look cool!

    Choose your kit size, pick your colours and away you go! If you want to mix up the colours, select 'Mixed' in the drop down menu and write in the colours and amounts you want in the notes section, easy!

    Perfect for use inside and outside (see 'Using Outside?' tab)

    Are you making Marquee Letters? If so, check out the Marquee Kits specifically for that purpose.

    All our kits can be tailored to your requirements. Get in touch for details

  • Key for the table below:

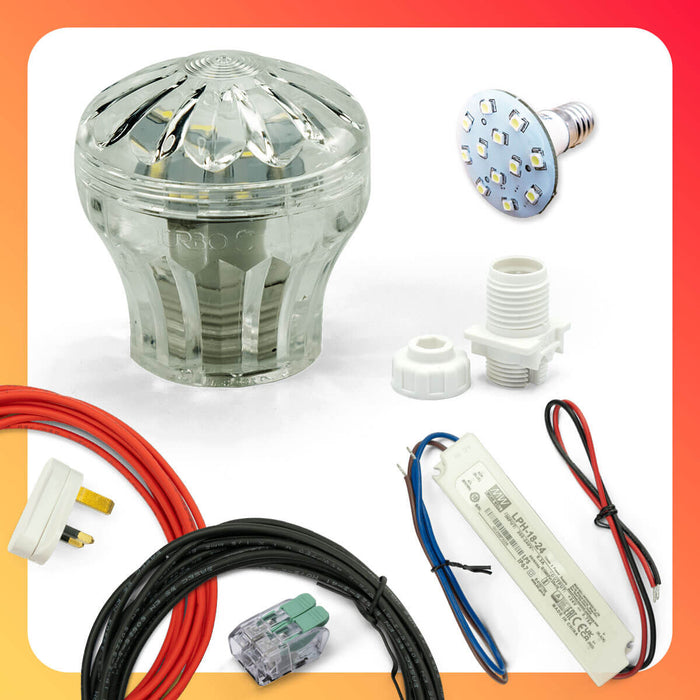

    A - The number of E14 Complete Units (CU) in the kit. Each "CU" comprises a cabochon cap & base, a lampholder and a 24v, .85w-1.2w LED bulb
    B - The total length, in metres, of 1.5mm LSZH cable in Red & Black. ie: 20m = 10m Red & 10m Black. Please ensure you have enough for your requirements..
    C - The number of 2 port Wago connectors
    D - The size of power supply supplied with the kit. 1 per kit.
    E - This is the max number of "CU's" that can be added on to that kit and still work efficiently with the power supply specified.

    *Each kit is supplied with 1 x UK 3pin Plug

    A B C D 24v E
    10x 6m 2 18w 7
    20x 10m 2 35w 13
    30x 10m 2 35w 3
    40x 15m 2 60w 17
    50x 15m 2 60w 7
    60x 20m 2
    100w 35
    70x 20m 2
    100w 25
    80x 25m 2
    100w 15
    90x 25m 2 100w 5
    100x 25m 4
    150w 42
    110x 30m 4 150w 32
    120x 30m 4 150w 22
    130x 30m 4 150w 12
    140x 30m 4 150w 2
    150x 30m 4 200w 40
    160x 35m 4 200w 30
    170x 35m 4 200w 20
    180x 35m 4 200w 10
    190x 35m 4 200w 0
    200x 35m 4 240w 28

    Please ensure you have enough LEDs to complete your whole project. Although we endeavour to never mix batches on the same order,  LEDs bought at different times cannot be guaranteed to have the same wattage and therefore to light up the same.

  • Using Outside?
    The cabochons are fine for use outside, but precautions have to be made for the back side of the lampholder. If you are using these outside, and can't cover the backs to protect from rain, we would suggest adding a blob of silicone to the lampholder spikes before laying the cable in. This is all it needs to create a waterproof seal.
    Any power supplies, dimmers and wago fixings used aren't weatherproof and need to be protected sufficiently, using an enclosure or placing them inside or under cover.

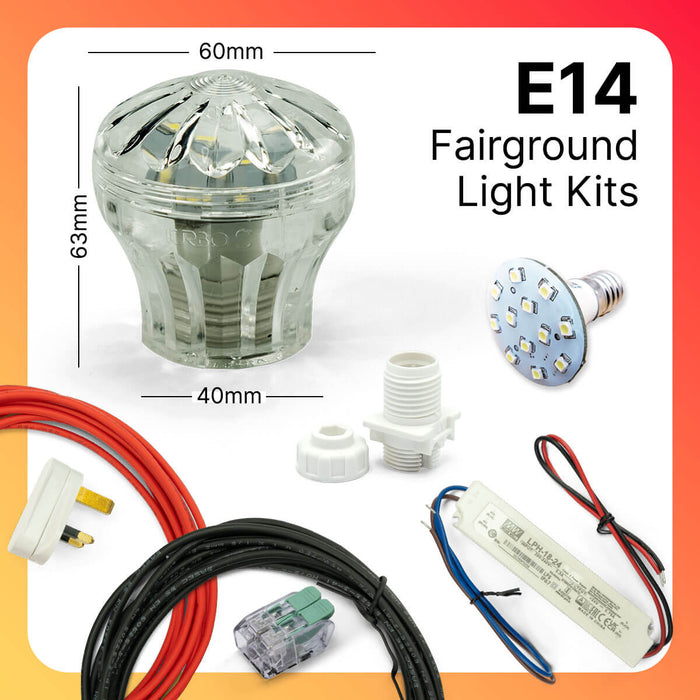

  • Size: E14 Cabochons are 60mm down to 40mm dia x 63mm high
    Power: 0.85-1.2w per led bulb
    Voltage: 24v
    Cabochon Colours: 15 available
    LED Colours: Pure White 6500k & Warm White 3000k
    Material: Methachrylate

    - Max thickness of material for the lampholder to push through is 10mm.
    - Apx 25mm clearance required on the backside of the material for the wiring and lampholder nut if they are being fit inside a trough letter for example.
    - Each lampholder is rated up to 240v but is stamped with 24v for the kits purposes.

    - Fitting: Drill a 19mm hole in your panel or letter face, push the lamp holder fitting through the back of the hole and screw the E14 Base to the front on the thread of the spike fitting. Easy. The LED or incandescent bulb can be screwed in through the centre of the base and then the cap as screwed over the top. This isn't only a very simple method for the initial fix, it is also perfect for the maintenance of the sign as you only need to be able to get to the face.
