Push-through Module - 9mm/12v

Suitable Applications:

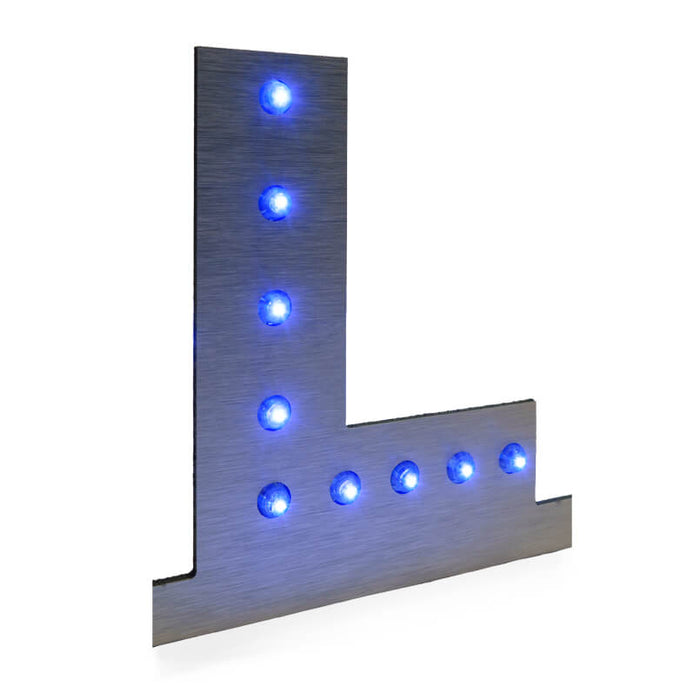

Face decoration on trays, letters and fabricated signs.
👉 They require a 9mm hole drilling in material that is a maximum of 3mm thick.

  • Voltage: 12v
  • Watts: 0.15w
  • Lumens: 7lm
  • IP Rating: IP66
  • Warranty: 2yr
Original price $2.00 - Original price $2.00
Original price
$2.00
$2.00 - $2.00
Current price $2.00
Colour: Ice White


  • Description
  • Details at a glance
  • Downloads
  • DOT9 LED Modules

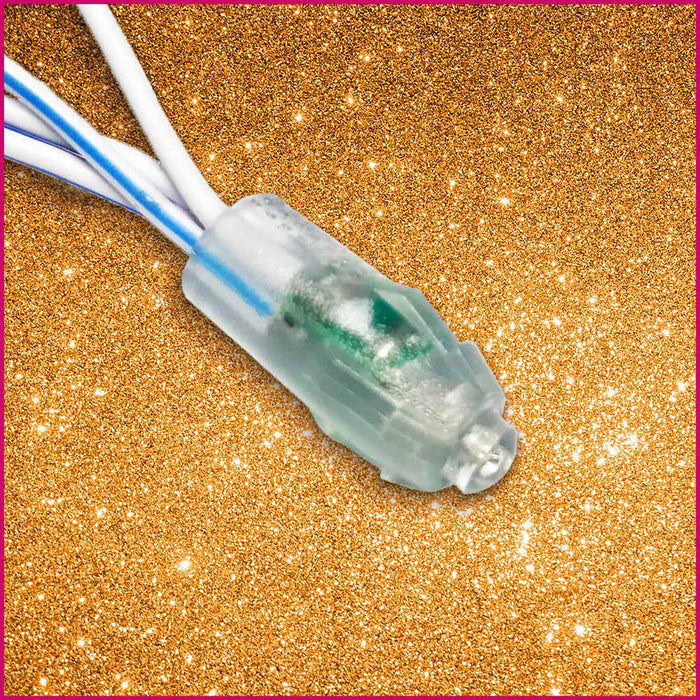

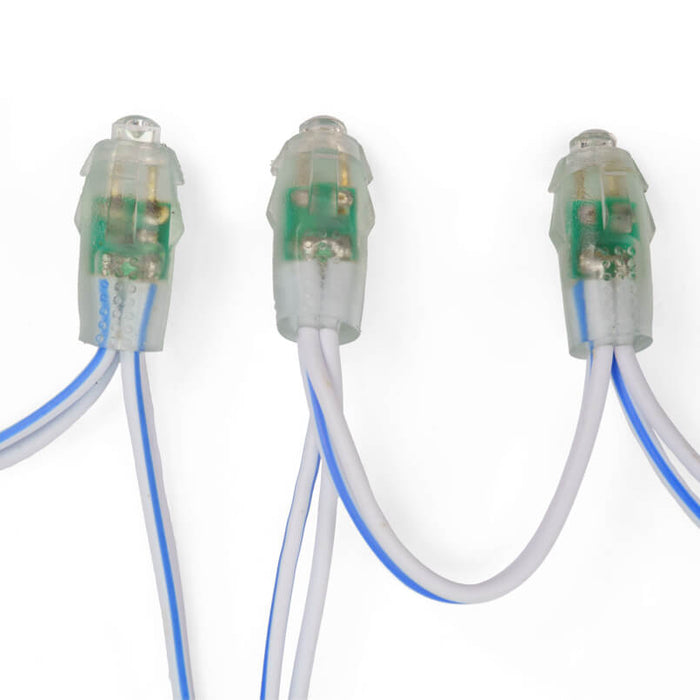

    Our 12v Cool White DOT9 LED Module is designed to add decorative finishes to almost any surface.  The DOT9 pushes through from the back of the material and has a beam angle of only 90° to give that 'spotty' effect you want from them.

    Available in Cool White (12000-15000K only)

    Please download our specification PDF, in the tabs above, for more information.

    As with all our LED modules, it is completely encapsulated for outdoor use.

    Please Note:
    *Whilst we endeavor to never mix batches on the same order, LEDs bought at different times, may burn at different colours.
    The cable colour may differ to the illustration.

    Extra Info

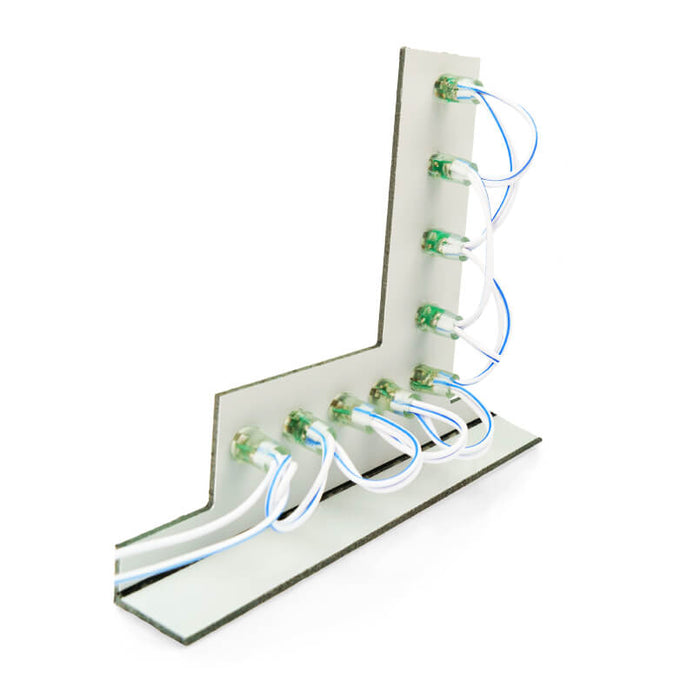

    To fit the DOT9 you need to drill a 9mm hole in your material, a max of 55mm apart, and push through from the back. The material thickness must be a maximum 3mm thick.

    Need a power supply? See our 12v Power Supplies perfect for the DOT9.

    We Will Beat Any Like For Like Price!
    Seen it cheaper? Let us know


  • Details at a Glance

    • 22mm x 11mm
    • 12v DC
    • 0.1W per module (at full power / White)
    • 50 dots per string
    • 55mm Max led spacing
    • 7 lumens (at full power / White)
    • 90° Beam Angle
    • 2 Year Warranty
    • 30,000hrs expected lifespan
    • IP66
  • LED Modules Data Guide
