Push-through Module - 9mm/5v

Suitable Applications:

Face decoration on trays, letters and fabricated signs.
👉 They require a 9mm hole drilling in material that is a maximum of 3mm thick.

  • Voltage: 5v
  • Watts: 0.15w
  • Lumens: 7lm
  • IP Rating: IP66
  • Warranty: 2yr
Original price £0.85 - Original price £0.90
Original price
£0.85 - £0.90
Current price £0.90
Colour: Red

  • Description
  • Details at a glance
  • Downloads
  • DOT9 LED Modules

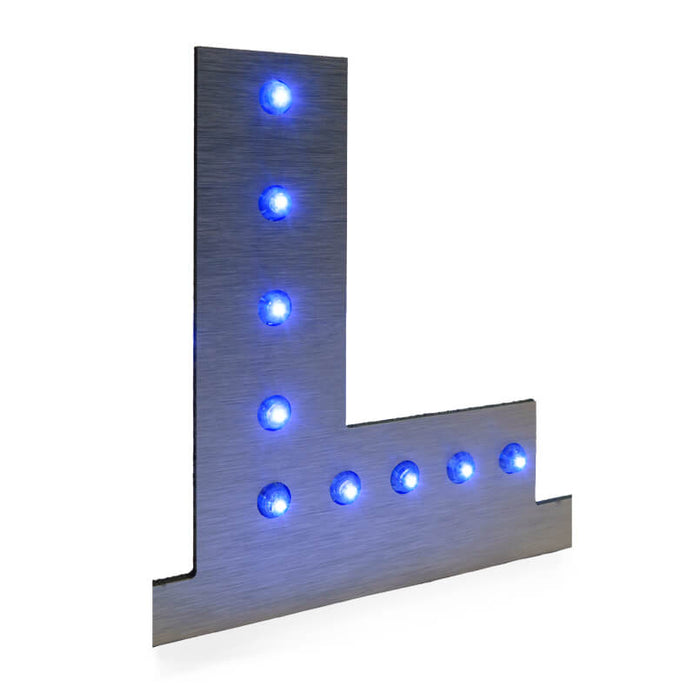

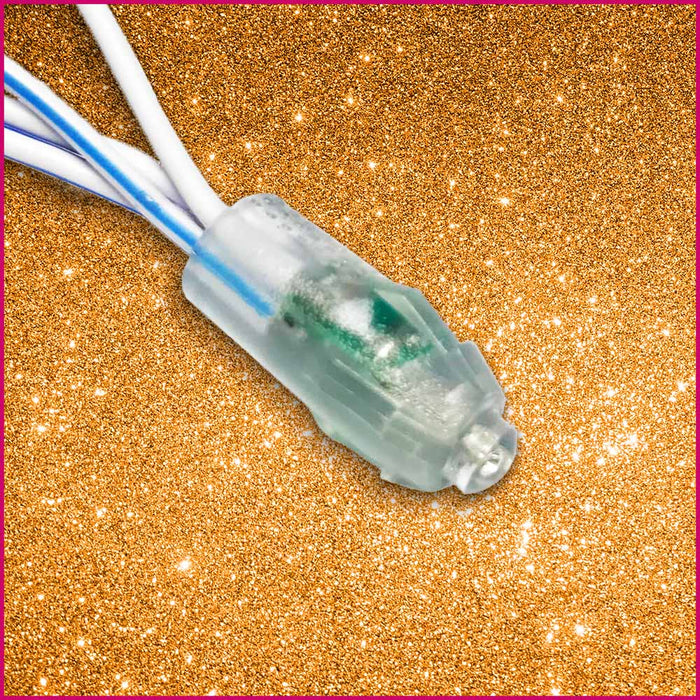

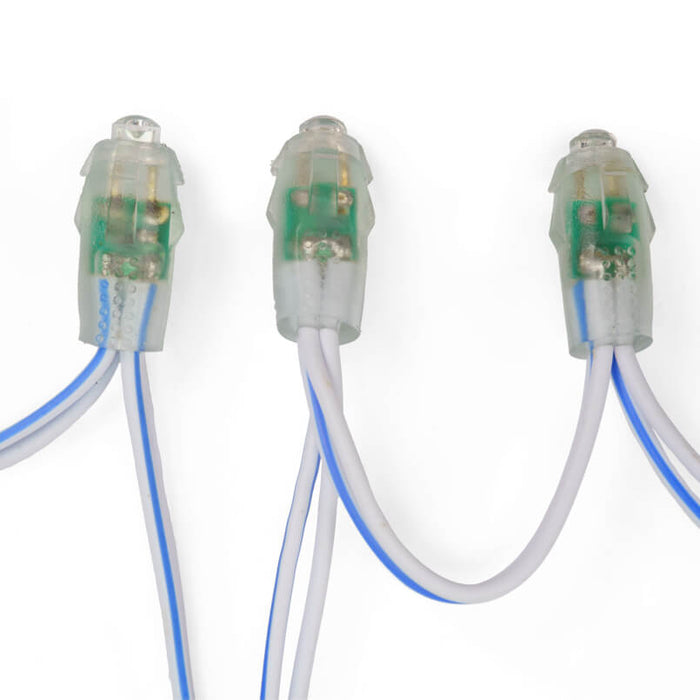

    Our **5v** DOT9 LED Module is designed to add decorative finishes to almost any surface.  The DOT9 pushes through from the back of the material and has a beam angle of only 90° to give that 'spotty' effect you want from them.

    Available in 5 colours*: Pure White (6500K)**, Blue, Red, Green & Yellow.
    **Please note there are only 8no Pure White available

    Please download our specification PDF, in the tabs above, for more information.

    As with all our LED modules, it is completely encapsulated for outdoor use.

    Please Note:
    *Whilst we endeavor to never mix batches on the same order, LEDs bought at different times, may burn at different colours.

    Extra Info

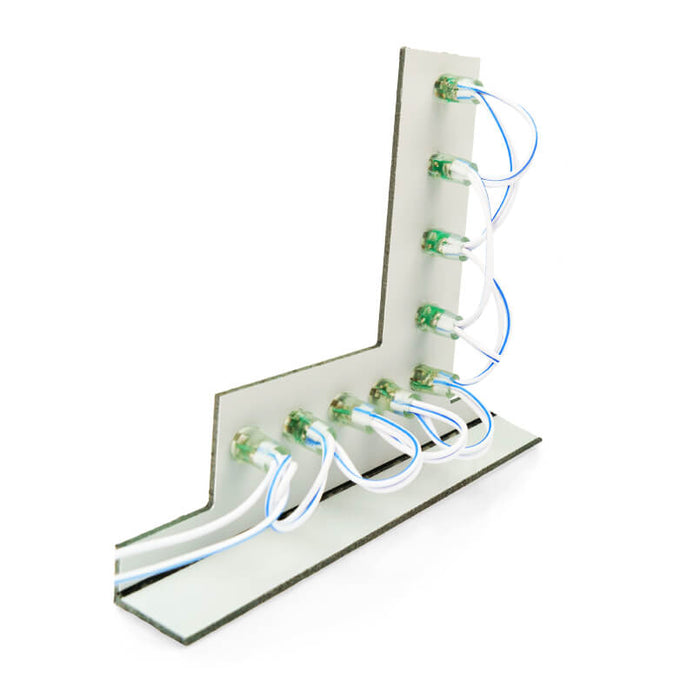

    To fit the DOT9 you need to drill a 9mm hole in your material, a max of 55mm apart, and push through from the back. The material thickness must be a maximum 3mm thick.

    Need a power supply? See our 5v Power Supplies perfect for the DOT9.

    The 'Qualität' brand of LED modules are a very good quality, mid-high range LED. They offer the specification you would expect from more expensive modules, whilst keeping a very low price.

    We Will Beat Any Like For Like Price!
    Seen it cheaper? Let us know

  • Details at a Glance

    • 22mm x 11mm
    • 5V DC
    • 0.15W per module (at full power / White)
    • 50 dots per string
    • 55mm Max led spacing
    • 7 lumens (at full power / White)
    • 90° Beam Angle
    • 2 Year Warranty
    • 30,000hrs expected lifespan
    • IP66
  • LED Modules Data Guide
