DOT12RGB LED Module
DOT12RGB
£0.70
-

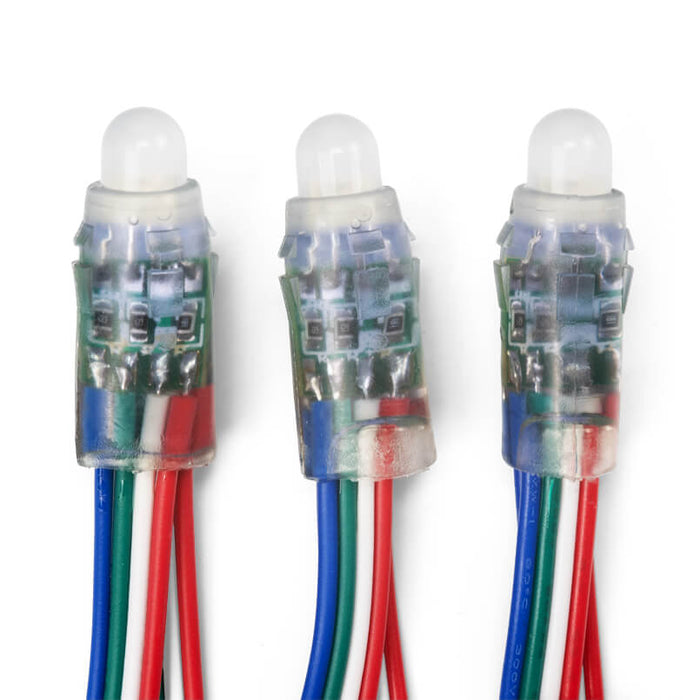

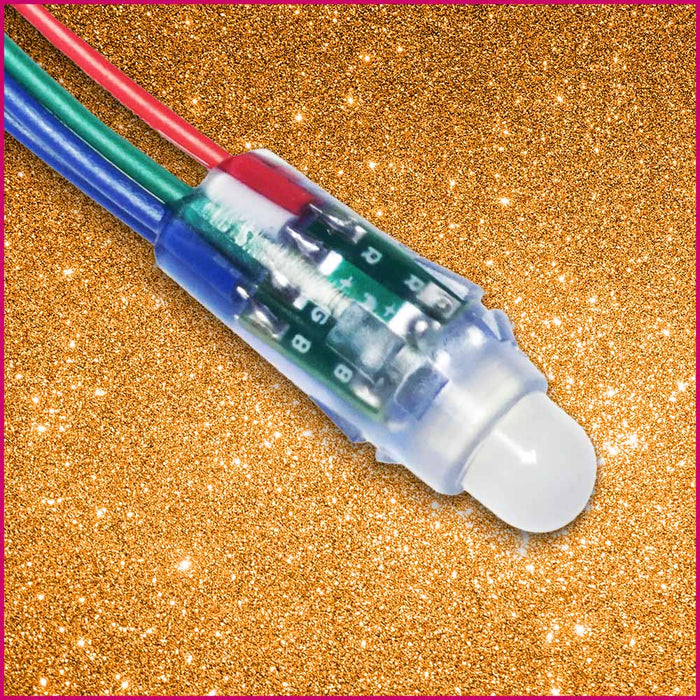

DOT12RGB LED Modules

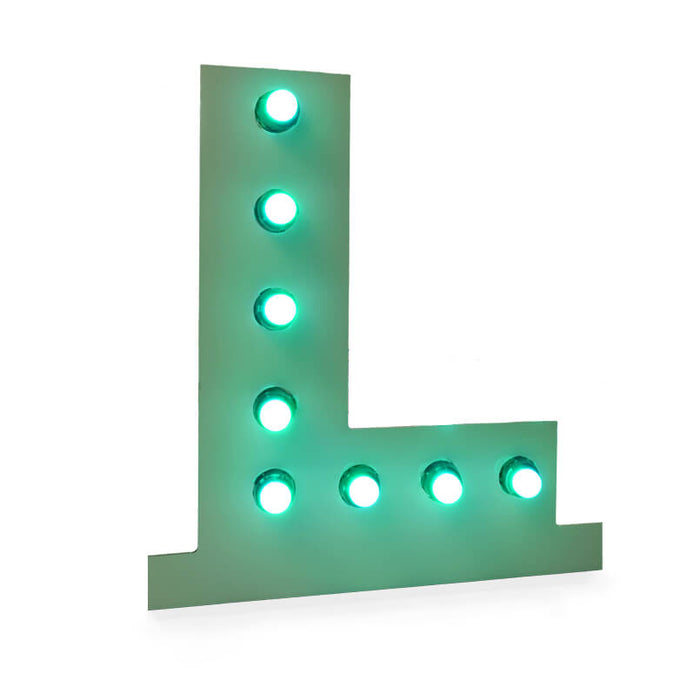

Our **5v** DOT12RGB LED Module is designed to add decorative finishes to almost any surface whilst giving you full control over the colour using a suitable RGB controller & PSU. The DOT12RGB pushes through from the back of the material and has a beam angle of only 90° to give that 'spotty' effect you want from them.
Please download our specification PDF, in the tabs above, for more information.As with all our LED modules, it is completely encapsulated for outdoor use.
Extra Info
To fit the DOT12RGB you need to drill a 13mm hole in your material, a max of 70mm apart, and push through from the back. The material thickness must be a maximum 1.5mm thick.
We Will Beat Any Like For Like Price!
In order to use our Dot12RGB modules you need to use a 5v RGB controller. We also have a have a range DMX controllers available on our website. If you're unsure please get in touch and we'll guide you.
Need a power supply? See our 5v Power Supplies perfect for the DOT12RGB.
The 'Qualität' brand of LED modules are a very good quality, mid-high range LED. They offer the specification you would expect from more expensive modules, whilst keeping a very low price.
Seen it cheaper? Let us know
-
Details at a Glance
- 33mm x 12mm
- 5V DC
- 0.3W per module (at full power)
- 50 dots per string
- 70mm max led spacing
- 8 lumens (at full power)
- 90° Beam Angle
- 2 Year Warranty
- 30,000hrs expected lifespan
- IP66
- LED Modules Data Guide
Related Items
RGB2 LED Module
£1.00
-
RGB2 LED Modules
Our RGB2 LED Module is designed for colour changing applications to suit face illuminated lightboxes or channel lettering. The RGB2 module has a beam angle of 140° so works very well with lightboxes from a return depth of 70mm.
Please download our specification PDF, in the tabs above, for more information.As with all our LED modules, it is completely encapsulated for outdoor use and comes with suitable VHB tape already applied. It includes an integrated heat sink to reduce light degradation and colour deviation.
Extra Info
Need a power supply? See our 12v Power Supplies
We Will Beat Any Like For Like Price!
In order to use RGB modules you need to use a controller. We have a range of RGB controllers and DMX controllers available on our website. If you're unsure please get in touch and we'll guide you.
The 'SG' brand of LED modules are an efficient sign grade module. They offer the specification you need for most general signage requirements, with rock bottom prices.
Seen it cheaper? Let us know
-
Details at a Glance
- 47mm x 15mm x 4mm
- 12V DC
- 0.48W per module (at full power / White)
- 21 lumens (at full power / White)
- Pre-mounted adhesive tape to rear
- Mechanical fixing hole to edge of module
- 140° Beam Angle
- 1 Year Warranty
- 50,000hrs expected lifespan
- IP65
-
Spacings Info
- 130mm - Full Stretch Centre to centre spacing
- 70mm - Minimum return depth for even illumination
- Row & LED Spacings Guide
70mm Returns < = 60mm spacings
90mm Returns < = 70mm spacings
110mm Returns < = 90mm spacings
RGB3 LED Module
£1.50
-
RGB3 LED Modules
Our RGB3 LED Module is designed for colour changing applications to suit face illuminated lightboxes or channel lettering. The RGB3 module has a beam angle of 160° so works very well with slimline lightboxes from a return depth of 70mm.
Please download our specification PDF, in the tabs above, for more information.As with all our LED modules, it is completely encapsulated for outdoor use and comes with suitable VHB tape already applied. It includes an integrated heat sink to reduce light degradation and colour deviation.
Extra Info
In order to use RGB modules you need to use a controller. We have a range of RGB controllers and DMX controllers available on our website. If you're unsure please get in touch and we'll guide you.
We Will Beat Any Like For Like Price!
Need a power supply? See our 12v Power Supplies
The 'Qualität' brand of LED modules are a very good quality, mid-high range LED. They offer the specification you would expect from more expensive modules, whilst keeping a very low price.
Seen it cheaper? Let us know
-
Details at a Glance
- 85mm x 15mm x 11mm
- 12V DC
- 0.72W per module (at full power / White)
- 21 lumens (at full power / White)
- Pre-mounted adhesive tape to rear
- Mechanical fixing hole to edge of module
- 160° Beam Angle
- 3 Year Warranty
- 50,000hrs expected lifespan
- IP66
-
Spacings Info
- 225mm - Full Stretch Centre to centre spacing
- 740mm - Minimum return depth for even illumination
- Row & LED Spacings Guide
70mm Returns < = 100mm spacings
100mm Returns < = 110mm spacings
