SKU V-100-12

100w 12v PSU Dimmable

Voltage: 12v
Watts: 100w
Dim function: 0-10v/1-10VPWM
IP Rating: IP66
Warranty: 3yr

£68.00 - £68.00

£68.00

£68.00 - £68.00

£68.00

Description

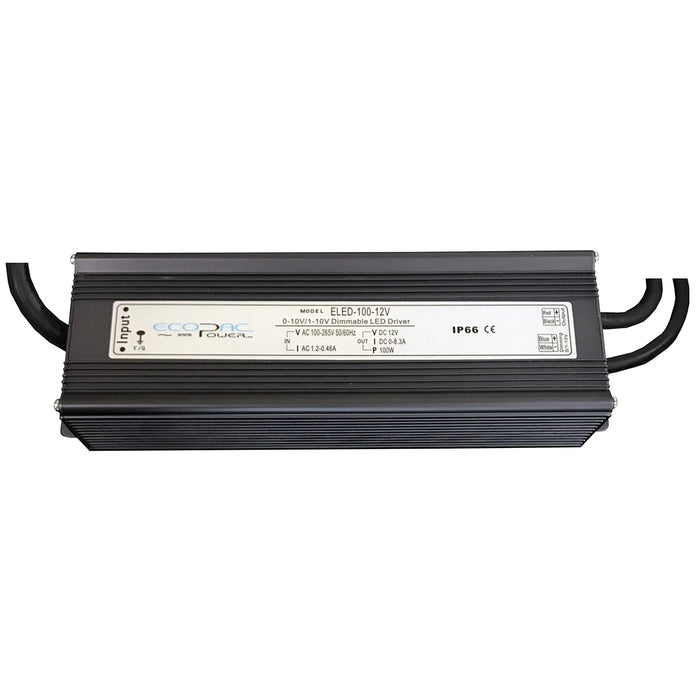

100W 12V 0-10/1-10v Dimmable Constant Voltage Single Output LED PSU

High-performance and reliable power supply solution.
For optimal longevity, it is factory recommended to run at a maximum of 95% capacity.

3 in 1 dimming function (0/1-10Vdc or 10v PWM signal or resistance).

Rated IP67: Suitable for both internal and external use.

Other Info

Technical Specifications:

Input Voltage: 200-240VAC
Output Voltage: 12V
Output Current: 8.34A
Power: 100W
Dimensions: 230x70x43mm
Protection Features: Short circuit, overload, over voltage, over temperature
Cooling Method: Free air convection
Efficiency: Up to 83%
IP Rating: IP66
Warranty: 5 years RTB
