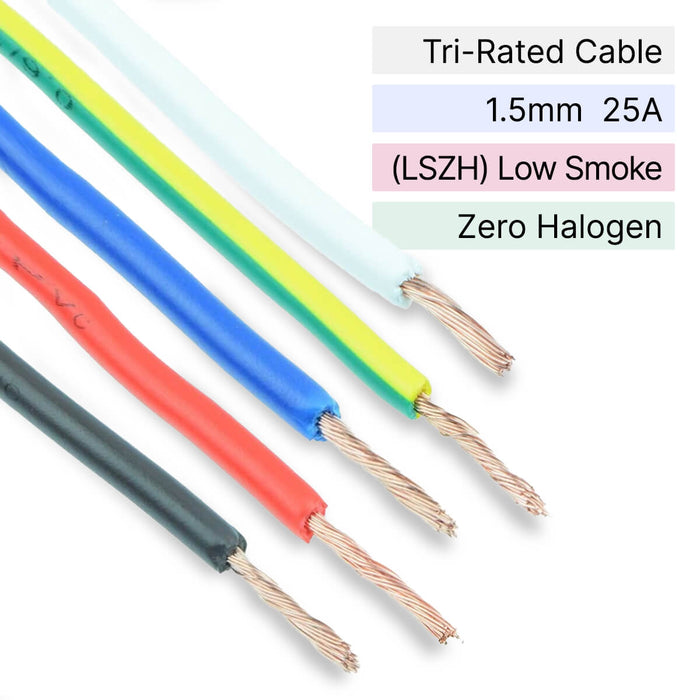

1.5mm 25A LSZH LED Cable

Original price £0.62 - Original price £55.00
Original price
£0.62 - £55.00
Current price £0.62
Colour: Black
  • Description
  • Technical
  • LSZH (Low Smoke Zero Halogen) Equipment Wire, 16AWG Wire Size.

    LSZH panel wiring for appliances with maximum operating temperatures of 90°C, and generally in areas (such as public and government buildings)
    where smoke and toxic fumes may cause a threat to life and equipment.
    The cables produce no corrosive gases when burnt which is particularly important where electronic equipment is installed.

    5 sheath colours:
    Red & Black,  - available by the metre* and in 100m rolls.
    Blue, Green/Yellow & White - available by the metre* only

    Please note:  *Buy more than 1m and it will be in one continuous length up to 99m.

  • Copper Conductor Stranding: Class 5 flexible copper conductor according to BS EN 60228 (previously BS 6360)
    Cable Diameter: 1.5mm
    Outer diameter:  3.5mm
    Voltage Rating: 300-500v
    Temperature Rating: -25*C to +90*C
    PVC Insulation Material
    Insulation: LSZH (Low Smoke Zero Halogen) Type EI5 thermosetting insulation according to BS EN 5036
    Insulation Thickness: 0.7mm
    Current Rating: 25A
    Standards Met: BS EN 50525-3-41 (previously BS 7211 Table 3 and 4b CENELEC HD22.9), BS EN/IEC 60332-1-2, BS EN/ IEC 50267-2-1, BS EN/IEC 60754

    Suitable for general use and interconnection within apparatus.
