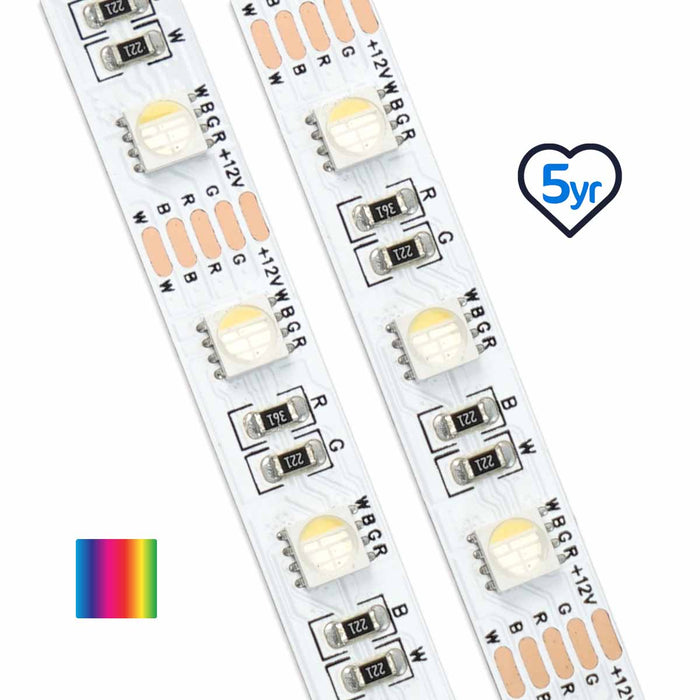

Classic RGBW LED Strip (2nd Gen) – Enhanced Colour-Changing with Pure White
Experience superior lighting performance with our upgraded Classic RGBW LED Strip (2nd Gen). Delivering exceptional brightness and colour quality, this enhanced strip combines dynamic RGB colour-changing with crisp 6000K white illumination for professional applications requiring both decorative and functional lighting.
2nd Gen Technology Advantages:
-
Enhanced brightness output – 600 lumens per metre for superior illumination
-
Improved efficiency – better light output while maintaining 14.4W per metre consumption
-
RGB plus pure white – full spectrum colours with dedicated 6000K white LEDs
-
Compact 10mm width – fits into narrow channels and tight spaces
-
60 LEDs per metre – smooth, even light distribution with excellent colour mixing
Perfect Applications:
-
Intricate channel letters – fit LED strip in one continuous piece rather than in multiple pieces and having to connect together
-
Premium retail displays – high-brightness RGB effects with pure white for merchandise showcase
-
Professional signage – enhanced visibility with superior light output for commercial applications
-
Architectural accent lighting – bright, uniform illumination for feature walls and coves
-
Exhibition stands – dynamic colour effects with functional white lighting for displays
Installation Advantages:
-
Flexible installation – no intermediate connections needed for runs up to 10m (see power planning for electrical requirements)
-
Cut exactly to length – 100mm intervals for precise fitting
-
Professional adhesive – pre-applied backing bonds to clean surfaces
-
Simple connection – compatible with all 12V LED drivers and RGBW controllers
Power Planning Made Simple:
-
1 metre = 14.4W
-
3 metre run = 43.2W (typical application)
-
Up to 5m = 72W (requires 80W+ power supply for safety margin)
-
Up to 10m = Power from both ends (80W+ total power supply capacity)
-
Longer than 10m = Requires power injection every 5m to prevent dimming
Browse our 12V power supplies and RGBW controllers or contact our technical team for free consultation: sales@weloveleds.co.uk
Professional Quality You Can Trust:
30,000-hour lifespan with 5 year return-to-base warranty. Enhanced RGBW colour-changing capability with high-output pure white channel.
Planning a bigger project? We offer competitive reel pricing for larger installations.
Product Supply Options
The strip is supplied in 10m reel or cut from the reel as per your requirement.
What You Receive:
- ✅ Full Reels (5m): LED strip with 100mm of wire pre-soldered at each end
- ✅ Per Metre: LED strip with adhesive backing
- ⚠️ Per Metre Note: Cut from part reels - wire connection not guaranteed
What's Not Included:
- ❌ Power supply - requires separate 12V power supply
- ❌ RGBW Controller - RGBW controller required for colour and white control
- ❌ Connectors - optional LED strip connectors for wire-free connections
- ❌ Mounting profile - aluminium profiles available separately
Additional Services:
🔧 Bespoke Service: We can supply cut-to-length sections with pre-soldered cables - just ask!
Professional RGBW Control
RGBW LED strips require an RGBW controller to access their full colour-changing and white light potential. Our RGBW controllers offer independent control of RGB colours and the dedicated white channel, allowing for pure white light, full spectrum colours, or combinations of both. Choose from basic manual controllers, remote control units, or smartphone app-controlled systems for ultimate lighting flexibility.
Technical Specifications
- LED Type: SMD5050 – 60 LEDs per metre
- Voltage: 12V DC (±10% tolerance)
- Power Consumption: 14.4W per metre at full brightness
- Current Draw: 1200mA per metre
- Light Output: >600 lumens per metre
- Luminous Efficacy: >42 lumens per watt
- Cut Points: Every 100mm
- PCB Dimensions: W10mm × H2.5mm
- Max Run (Single End Power): Up to 5 metres
- Max Run (Both End Power): Up to 10 metres
- Power Injection Required: Every 5m for runs longer than 10m
Environmental & Performance
- Operating Temperature: -10°C to +45°C
- Storage Temperature: -20°C to +60°C
- IP Rating: IP20 (Indoor use only - suitable for dry locations. Can be used outdoors when protected in sealed letters/channels)
- Lifespan: 30,000 hours typical operation
- Warranty: 5 years return-to-base (RTB)
Colour Options
RGBW Colour Changing: Full spectrum colour mixing with Red, Green, and Blue LEDs plus dedicated pure White (6000K) LEDs. Capable of producing millions of colour combinations including pure colours, pastels, and true white light. Independent control of RGB and white channels allows for colour plus white combinations. Enhanced brightness output of 600 lumens per metre. Requires RGBW controller for full functionality.
Installation & Compatibility
- Mounting: Pre-applied professional adhesive tape
- Surface Requirements: Clean, dry, degreased surface
- Power Supply: 12V constant voltage LED drivers only
- Connection: Solderable pads or connector compatible
- Control: Requires RGBW controller for colour changing and white functionality
Quality Notes
- Batch Consistency: LED strips from different production batches may have slight colour variations
- Wire Connection: Per-metre cuts may require separate wire connection
- Professional Installation: Recommended for commercial applications
