LED Lightsheet Power Lead – The Feed From Your Driver Into the Sign
A run of LED Lightsheets needs one power feed from the driver. This is it. One clip-on connector at the panel end, two bare tinned wire tails at the driver end, ready to drop into your 24V power supply terminals.
Here's how it works: The white connector body clips directly onto the contact pads at the edge of a Lightsheet, no soldering and no separate terminals. The opposite ends are stripped and pre-tinned, so they push straight into your driver's output terminal block and clamp down clean. From that first powered sheet, Jumper Cables carry the supply across to the rest.
Why it matters: A bad power feed is the most common reason a sign runs warm at the supply corner, dims down the chain, or fails early. A solderless clip with correctly sized conductor gives you a solid, repeatable joint, without a soldering iron near a thin acrylic panel and without guesswork on the bench.
Key Advantages:
-
Solderless clip-on fitting – Connects to the Lightsheet contact pads by hand in seconds. No iron, no flux, no risk of heat-damaging the panel.
-
14AWG conductor – Properly sized copper for full-run Lightsheet current, so the feed is not the weak point in the install.
-
Pre-tinned bare tails – Driver-side ends stripped and tinned ready to terminate. Straight into the terminal block, no fraying.
-
One feed for up to 10 sheets – A single Power Lead supplies a full chain of up to 10 panels linked with Jumper Cables. No need for a separate run to each sheet.
-
Polarity marked – Clear positive and negative on the connector body so you wire it the right way round without tracing cores.
Perfect Applications:
-
Single-panel sign – One Power Lead from the driver to the sheet and the panel is live.
-
Multi-panel run up to 10 sheets – The Power Lead feeds the first sheet; Jumper Cables carry power across the rest. One driver, one feed, one tidy install.
Also ideal for illuminated signage, lightboxes, retail display panels, exhibition graphics, and any 24V Lightsheet install needing a clean solderless power feed.
Browse our LED Lightsheets and LED Drivers, or contact our technical team for free consultation: sales@weloveleds.co.uk
Product Supply Options
Sold individually. One Power Lead supplies a chain of up to 10 linked Lightsheet panels. For runs longer than 10 sheets, a second feed and driver are needed; the technical team can help you split the load.
What You Receive:
- 1 x LED Lightsheet Power Lead – Single solderless clip connector with two attached lead cores
- Pre-tinned bare wire tails – Driver-side ends stripped and tinned, ready to terminate
- Polarity-marked connector body – Positive and negative clearly indicated
What's Not Included:
Additional Services:
Technical support: Not sure what driver size your sign needs, or how to split a run longer than 10 panels? Email sales@weloveleds.co.uk and the technical team will spec it correctly before you order.
What This Actually Is

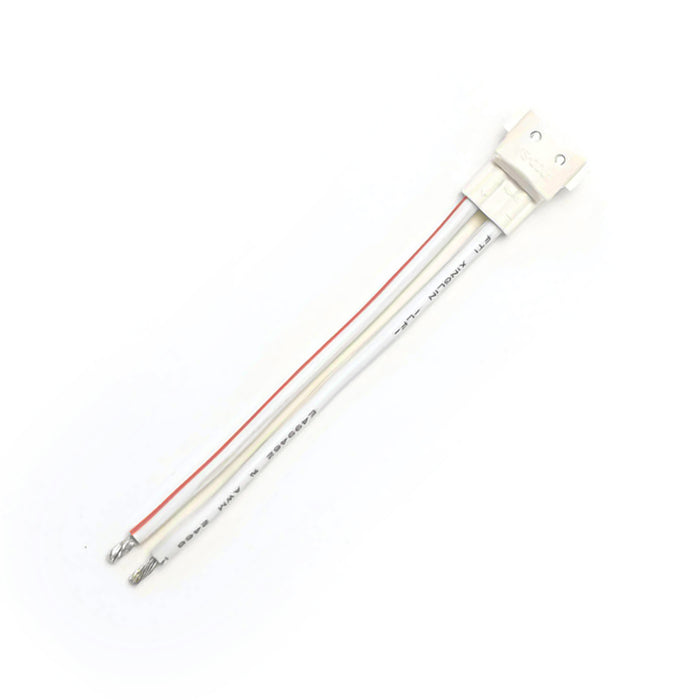

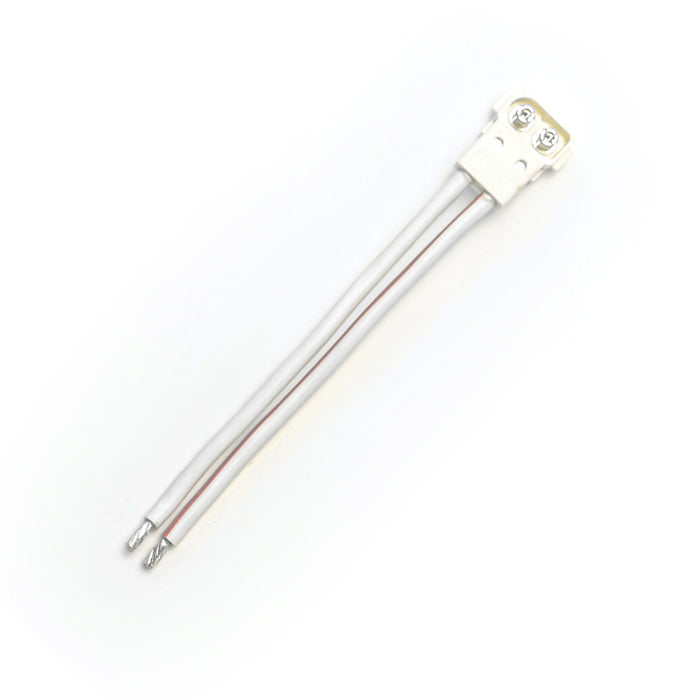

A short two-core lead with a solderless clip connector on one end and bare tinned conductors on the other. The clip grips the Lightsheet's exposed contact pads; the bare end goes into your 24V driver. It is the single power feed for a run of up to 10 linked sheets.
In Plain English: This is the lead that takes power from your driver onto the sign. Clip one end onto the first panel, screw the other into the 24V power supply, done. Jumpers handle the rest.
Technical Specifications
- Model: LED Lightsheet Power Lead
- Connector type: Solderless clip-on, 2-contact
- Conductor size: 14AWG
- Current rating: 20A
- Operating voltage: 24V DC
- Configuration: Single-ended (clip one end, bare tinned tails the other)
- Overall length: 110mm (connector body approx 72mm)
- Polarity: Marked on connector body
- Feeds: Up to 10 linked Lightsheet panels per Power Lead
- Compatibility: WeLoveLEDs™ LED Lightsheet range
- Connection method: Solderless, tool-free at the panel end
Installation & Compatibility
- Panel end: Clip the connector onto the Lightsheet contact pads, observing polarity. No soldering.
- Driver end: Strip already done. Insert the pre-tinned tails into the 24V driver output terminals and clamp.
- Compatible systems: WeLoveLEDs™ LED Lightsheet panels and 24V constant-voltage LED drivers.
- One feed per run: A single Power Lead serves up to 10 panels linked with Jumper Cables.
Quality Notes
- Correct conductor sizing: 14AWG is matched to full-run Lightsheet current so the feed does not become a warm point.
- Driver sizing: A 4-panel run draws 96W (use a 120W minimum 24V supply). A 10-panel run draws 240W (use a 300W 24V supply). Always size the driver above the total load.
- Solderless by design: Removes the most common installer error on thin panels, heat damage from a soldering iron.
