LED Lightsheet Jumper Cable – Link Panels Without Running Back to the Driver
When a sign uses more than one Lightsheet, you do not want a separate power run to every panel. The Jumper Cable solves that. Clip it from a powered sheet to the next one, and power carries straight across. Repeat down the line and a full run of up to 10 sheets works from one driver feed.

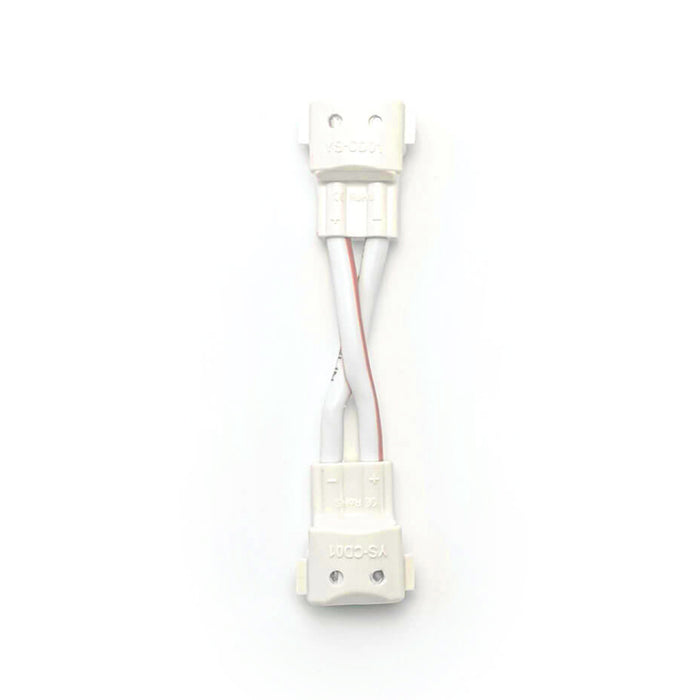

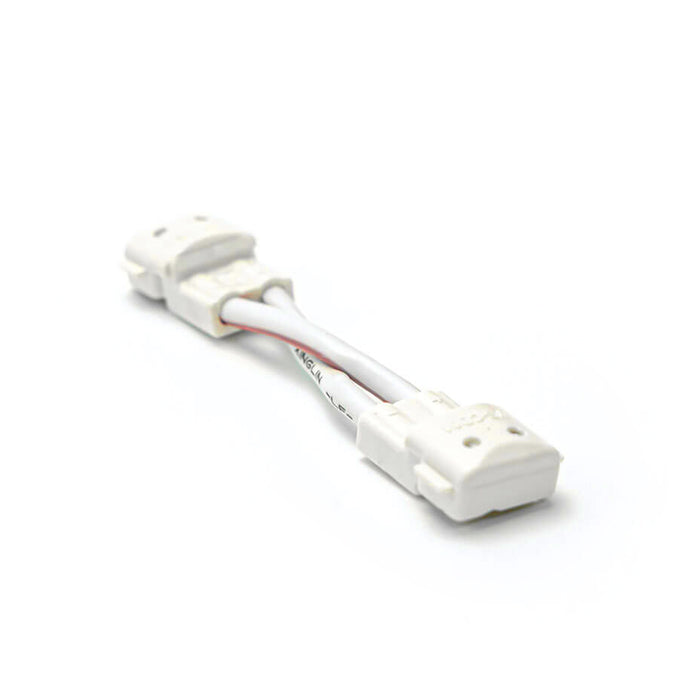

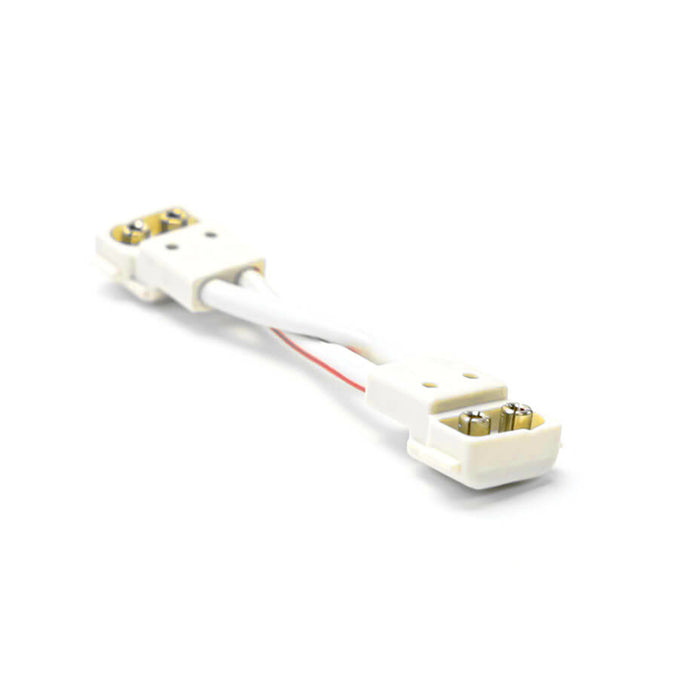

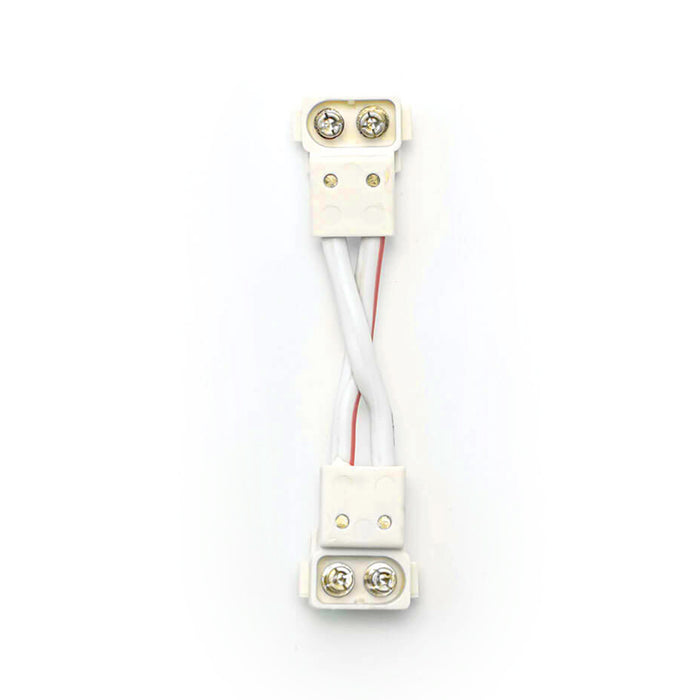

Here's how it works: Both ends are solderless clip connectors. One clips onto the contact pads of a sheet that already has power; the other clips onto the next sheet along. The short twisted lead between them carries the supply across the gap. One Jumper Cable per join.
Why it matters: Daisy-chaining sheets with jumpers keeps the wiring tidy, cuts driver terminations to one, and makes a multi-panel sign far quicker to build and easier to fault-find. One feed in, jumpers across, done.
Key Advantages:
-
Solderless clip at both ends – Connects panel to panel by hand. No iron anywhere near the acrylic.
-
14AWG twisted lead – Properly sized to carry sheet current through to the next panel without becoming a bottleneck.
-
One cable per join – A single Jumper Cable connects any sheet to the next. A 10-sheet run needs nine.
-
Daisy-chain ready – Designed for sequential linking, so one driver feed can run a full row of up to 10 sheets.
-
Polarity marked at each connector – Keeps positive and negative consistent across the whole chain.
Perfect Applications:
-
Multi-panel illuminated signs – Two or more sheets making one sign face, linked with jumpers and run from a single driver.
-
Long lightbox runs up to 10 panels – Panels edge to edge, a clean short link between each, the whole row on one feed.
Also ideal for exhibition walls, retail display banks, segmented backlit graphics, and any Lightsheet layout where multiple panels share one supply.
Browse our LED Lightsheets and LED Drivers, or contact our technical team for free consultation: sales@weloveleds.co.uk
Product Supply Options
Sold individually. You need one Jumper Cable for each join between panels. A 2-sheet sign needs one Power Lead plus one Jumper Cable; a 4-sheet sign needs one Power Lead plus three Jumper Cables; a 10-sheet run needs one Power Lead plus nine Jumper Cables.
What You Receive:
- 1 x LED Lightsheet Jumper Cable – Solderless clip connector at each end, joined by a short twisted lead
- Polarity-marked connector bodies – Positive and negative indicated at both ends
What's Not Included:
Additional Services:
Technical support: For multi-panel signs, the technical team can confirm how many sheets one driver will safely run before you order. Email sales@weloveleds.co.uk.
What This Actually Is
A short twin lead with a solderless clip connector on both ends. It bridges power from one Lightsheet to the next so panels link in series from a single supply, rather than each panel needing its own run back to the driver.
In Plain English: This is the cable that joins one sheet to the next. Clip one end on the powered sheet, clip the other on the next sheet, and the next one lights up too.
Technical Specifications
- Model: LED Lightsheet Jumper Cable
- Connector type: Solderless clip-on, 2-contact, both ends
- Conductor size: 14AWG
- Current rating: 20A
- Operating voltage: 24V DC
- Configuration: Double-ended (clip connector at each end)
- Lead length: [LENGTH TO BE CONFIRMED]
- Polarity: Marked on both connector bodies
- Use: One Jumper Cable per join between panels
- Compatibility: WeLoveLEDs™ LED Lightsheet range
- Connection method: Solderless, tool-free both ends
Installation & Compatibility
- Both ends: Clip onto the contact pads of adjacent Lightsheet panels, keeping polarity consistent along the chain. No soldering.
- Sequence: Power Lead feeds sheet 1 from the 24V driver; Jumper Cables link sheet 1 to 2, 2 to 3, and so on, up to 10 sheets.
- Compatible systems: WeLoveLEDs™ LED Lightsheet panels.
- One per join: Every link between two panels needs its own Jumper Cable.
Quality Notes
- Correct conductor sizing: 14AWG carries panel current cleanly through the chain so downstream sheets are not starved.
- Chain limit: Up to 10 panels per driver feed. A 10-panel run draws 240W and needs a 300W 24V supply; a 4-panel run draws 96W and needs a 120W minimum 24V supply.
- For larger signs: Beyond 10 panels, split into separate runs each with its own Power Lead and driver. The technical team can plan this for you.
