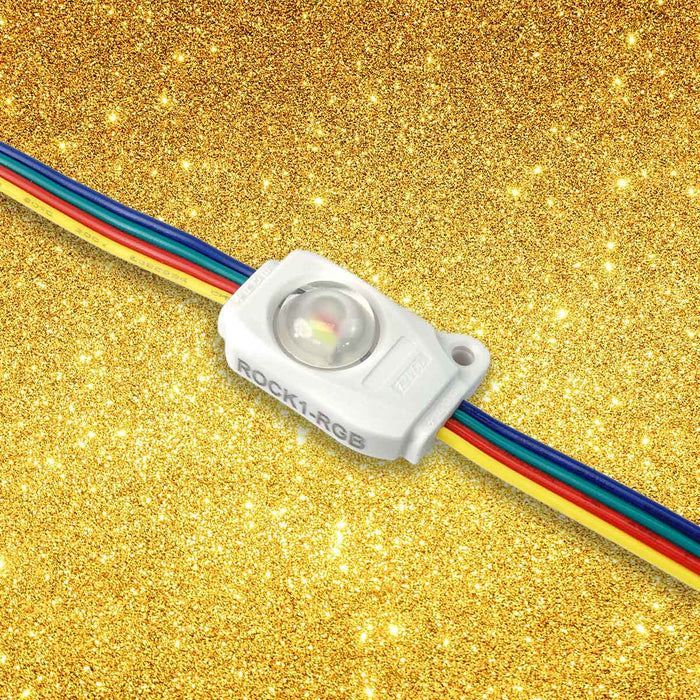

ROCK RGB1 LED Module – Compact RGB Solution for Tight Spaces
Our ROCK RGB1 LED Modules deliver full RGB colour control in an ultra-compact 30mm x 18mm form factor, making them the perfect choice for space-constrained signage applications. With a 3-year warranty and tight 40-85mm spacing capabilities, these modules provide vibrant colour-changing effects in shallow channel letters where larger RGB modules won't fit, ideal for intricate designs and small-format displays.
Key Advantages:
-
Ultra-Compact RGB Design – Just 30mm x 18mm for the tightest installation spaces
-
Full Colour Control – Create millions of colours despite the micro size
-
Tight Spacing Capability – 40-85mm centres for high-density installations
-
150° Wide Beam Angle – Excellent coverage for close-proximity mounting
-
3-Year Warranty – Reliable performance backed by solid guarantee
Perfect Applications:
-
Small Format Signage – Perfect for intricate lettering and logos
-
Shallow Built-Up Letters – Optimised for 50-75mm return depths
-
Jewellery Display Cases – Compact size ideal for display lighting
-
Architectural Details – RGB effects in confined spaces
-
Retail Shelf Lighting – Dynamic colours in tight merchandising spaces
Installation Advantages:
-
Pre-Mounted VHB Adhesive – Professional-grade 3M tape for secure mounting
-
Micro Form Factor – 30mm x 18mm x 11mm fits where others can't
-
Close Spacing Options – 40-85mm centre-to-centre for dense coverage
-
12V DC Operation – Compatible with standard RGB controllers and power supplies
System Planning Made Simple:
-
Per Module = 0.72W consumption, 27 lumens output (at 100% white)
-
50mm Returns = 40mm centre-to-centre spacing
-
75mm Returns = 65mm centre-to-centre spacing (optimal efficiency)
-
100mm Returns = 85mm centre-to-centre spacing
-
Power Planning = Allow 20% headroom: 100W PSU = 111 modules max (80W)
Browse our 12V LED Power Supplies and RGB LED Controllers or contact our technical team for free consultation: sales@weloveleds.co.uk
Professional Quality You Can Trust:
Engineered for reliable operation with our 3-year replacement warranty. SMD5050 RGB LED technology ensures consistent colour rendering in a micro package perfect for space-critical applications.
Planning a bigger project? We offer complete RGB signage solutions and technical support for commercial installations.
Professional Micro RGB Technology
The ROCK RGB1 utilises SMD5050 RGB LED technology in an ultra-compact package, delivering full-spectrum colour control where space is at a premium. Despite its micro size, each module contains red, green, and blue LEDs that can be mixed to create millions of colours, controlled via standard RGB controllers for effects including colour fading, chasing, and strobing.
Technical Specifications
- Model: ROCK RGB1 LED Module
- LED Type: SMD5050 RGB
- Voltage: 12V DC constant voltage
- Power Consumption: 0.72W per module
- Luminous Flux: 27 lumens per module (at 100% white)
- Luminous Efficiency: 37.5Lm/W
- Beam Angle: 150°
- Colour Output: Full RGB spectrum (16.7 million colours)
Environmental & Performance
- Operating Temperature: -25°C to +55°C
- Storage Temperature: -40°C to +80°C
- Humidity: 10-90% RH non-condensing
- Dimensions: 30mm × 18mm × 11mm per module
- Weight: 3g per module
- IP Rating: IP67 (Fully submersible protection)
- Lifespan: 30,000+ hours L70
- Warranty: 3-year replacement warranty
RGB Control Capabilities
Colour Mixing: Independent control of red, green, and blue channels enables creation of any colour in the visible spectrum. Compatible with standard 3-channel RGB controllers, DMX systems, and smart WiFi controllers for app-based control. The compact size makes it ideal for creating detailed colour patterns and effects in confined spaces.
Installation & Compatibility
- Mounting: Pre-applied VHB adhesive tape
- Module Spacing: 40-85mm flexible spacing options
- Maximum Stretch: 200mm centre-to-centre capability
- Chain Configuration: Available in chains or individual units
- Control Requirements: RGB controller required (not included)
- Compatible PSUs: All 12V constant voltage drivers
- Compatible Controllers: Works with all RGB controllers
Quality Notes
- RGB Controller Required: These modules require an RGB controller for operation - they cannot be connected directly to a power supply
- Compact Installation: The micro size allows for tighter spacing but requires careful planning for wire management
- Professional Installation: For installations over 5m from controller, RGB amplifiers are recommended to maintain colour consistency
