Classic 128 LED Light Sheet – Flexible Illumination for Complex Shapes
Transform unusually shaped lighting projects with the Classic 128 LED Light Sheet from WeLoveLEDs™. Each 503mm x 240mm flexible panel features 128 high-efficiency 2835 LEDs delivering over 2,800 lumens through ultra-wide 175° beam angle lenses, creating seamless, shadow-free illumination ideal for lightboxes, curved surfaces, and architectural features.
Key Advantages:
-
Ultra-Wide 175° Beam Angle – Premium lenses eliminate hotspots and provide uniform light distribution across curved and flat surfaces
-

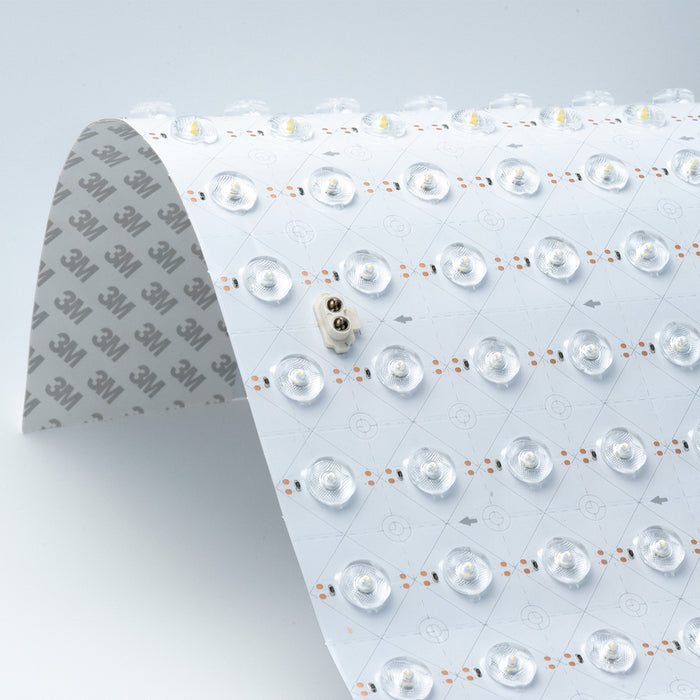

Flexible PCB Design – Bend and shape around pillars, reception desks, and architectural features with 25mm minimum bend radius
-
Versatile Cutting Points – Cut at every LED position along marked lines to create custom shapes and perfect fits
-
Four-Side Power Terminals – Connect panels from any edge using included link cables for seamless multi-panel installations (maximum 10 panels per run)
-
High Efficiency >130lm/w – 2835 LED technology delivers exceptional brightness at just 24 watts per sheet for energy-conscious projects
Perfect Applications:
-
Lightbox Illumination – Uniform edge-to-edge lighting for signage, menu boards, and display cases with minimal depth requirements
-

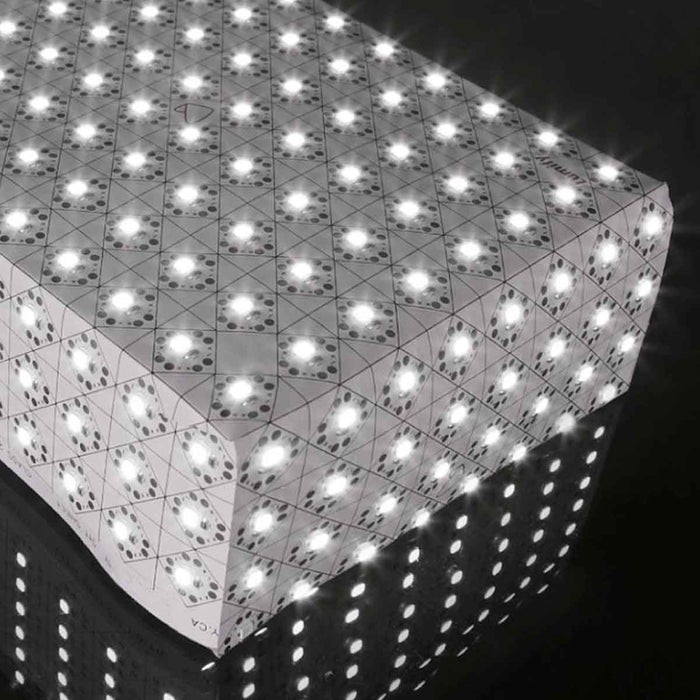

Curved Surface Backlighting – Flexible design wraps around pillars, curved walls, and architectural features
-
Reception Desk Features – Create striking illuminated desk fronts, cove lighting, and statement pieces in commercial environments
-
Retail Display Lighting – Highlight products with bright, colour-accurate illumination in shelving, cabinets, and display units
-
Architectural Accent Projects – Office environments, hospitality spaces, and residential features requiring discrete, flexible lighting solutions
Installation Advantages:
-
Pre-Mounted Adhesive Tape – Strong rear adhesive ensures secure fixing to clean, dry surfaces without additional mounting hardware
-
Multiple Connection Points – Four-side terminal design provides ultimate flexibility for power entry and daisy-chaining configurations
-
Included Connectors – Each sheet comes with power connector and two joining connectors for immediate installation (4-pack includes all necessary connectors)
-
Dimmable Operation – Compatible with 24V LED dimmers for precise brightness control and ambiance adjustment
System Planning Made Simple:
-
Single Sheet = 503mm x 240mm coverage (0.12m²) with 24W power draw
-
Standard Lightbox = 4 sheets cover approximately 0.48m² (typical A2-size application)
-
4-Panel Installation = 96W total load (requires minimum 120W 24V power supply)
-
10-Panel Maximum = 240W total load (requires 300W 24V power supply with appropriate cable sizing)
-
Extended Configurations = For installations exceeding 10 panels, use multiple power supply zones or contact our technical team for power distribution planning
Browse our 24V LED Power Supplies and LED Dimmers & Controllers or contact our technical team for free consultation: sales@weloveleds.co.uk
Professional Quality You Can Trust:
Engineered for 30,000 hours of reliable operation with 12-month warranty coverage. High-efficiency 2835 LED technology ensures consistent colour temperature and brightness throughout the panel's lifespan.
Planning a bigger project? We offer competitive bulk pricing and technical support for commercial lighting installations and large-scale architectural projects.
**Pure White Temporarily Out of Stock** New stock due Mid November
Product Supply Options
Available as individual sheets or value 4-packs. Each configuration includes all necessary connectors for immediate installation and panel linking.
What You Receive:
- Classic 128 LED Light Sheet (503mm x 240mm) – Flexible PCB with 128 x 2835 LEDs, pre-mounted adhesive backing, and 175° beam angle lenses

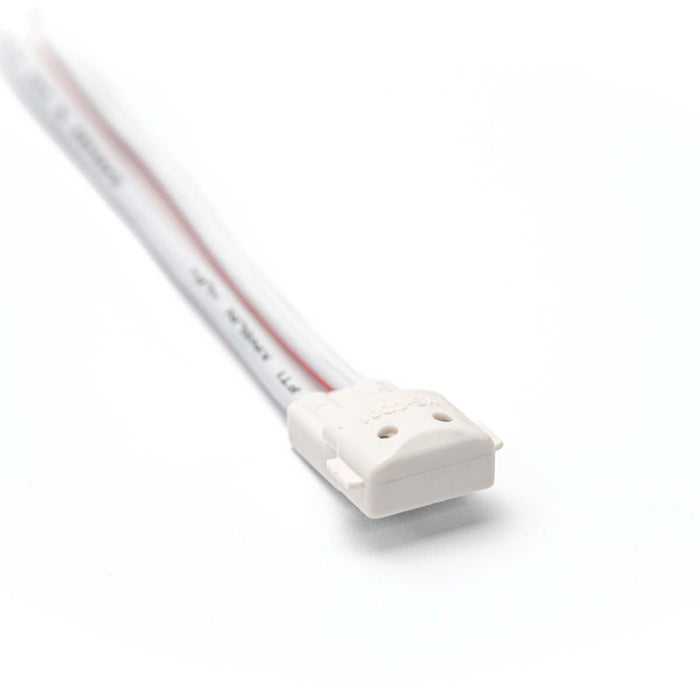

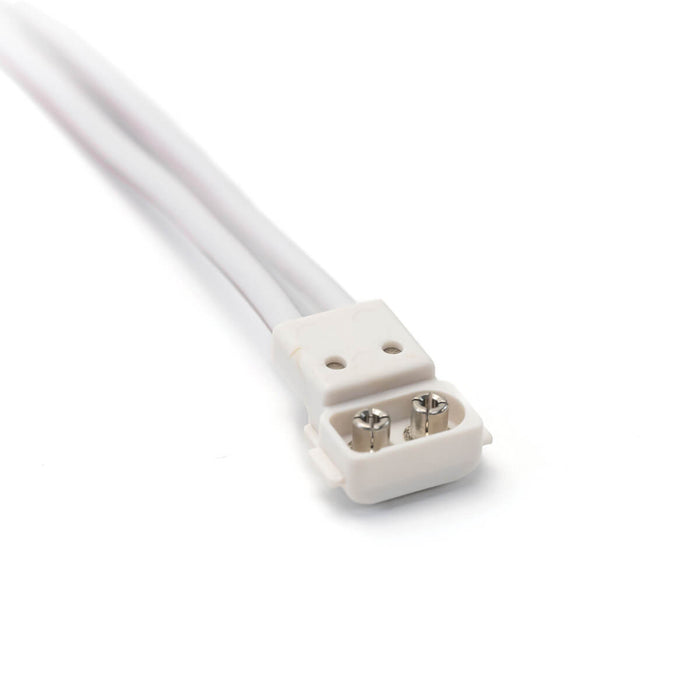

- Power Connector (1 per sheet) – For main power supply connection

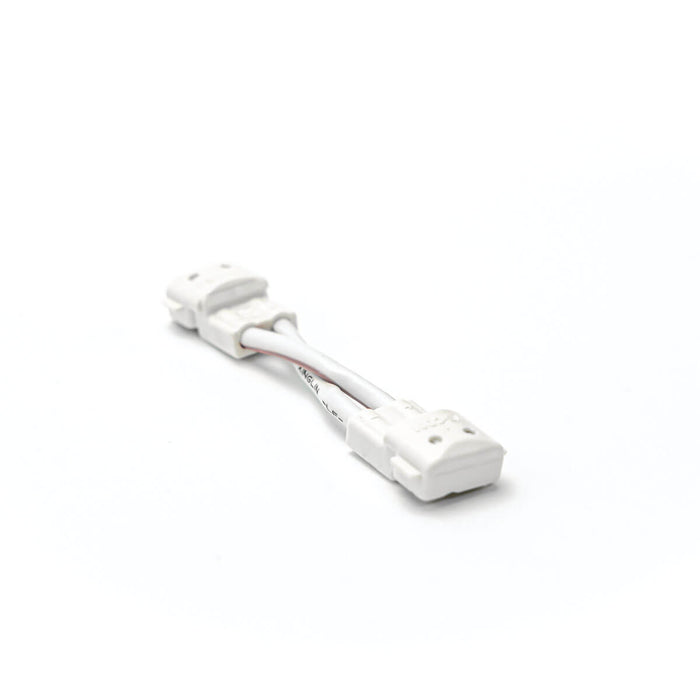

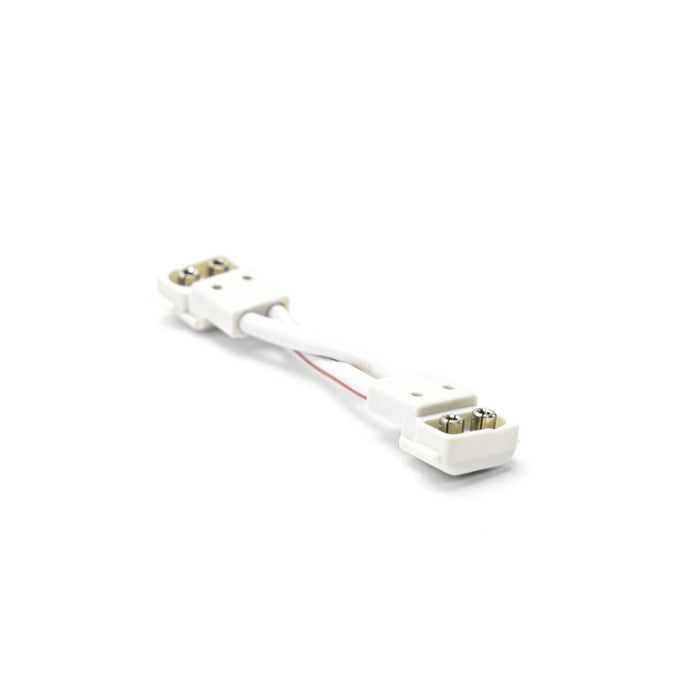

- Joining Connectors (2 per sheet) – For linking multiple panels together
- 4-Pack Bonus – Purchase 4 sheets and receive all 4 power connectors plus 8 joining connectors included
What's Not Included:
- 24V DC Power Supply - Required for operation; calculate total wattage (24W per sheet) and add 20% capacity for safety margin
- LED Dimmer/Controller - Optional for brightness control; must be rated for total system wattage and compatible with 24V DC systems
- Link Cables - Available separately for connecting panels when power terminals are not adjacent
- Mounting Accessories - Additional mounting clips or channels available if adhesive tape is not suitable for your application
Additional Services:
Free Technical Consultation: Our team can help you calculate power requirements, plan multi-panel layouts, and recommend compatible dimmers for your specific project. Email sales@weloveleds.co.uk with your requirements.
Professional 24V LED Panel Technology

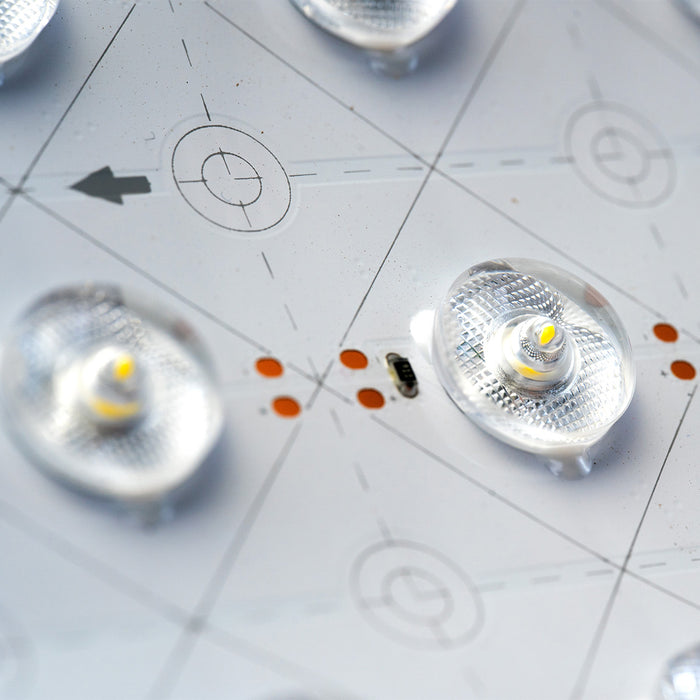

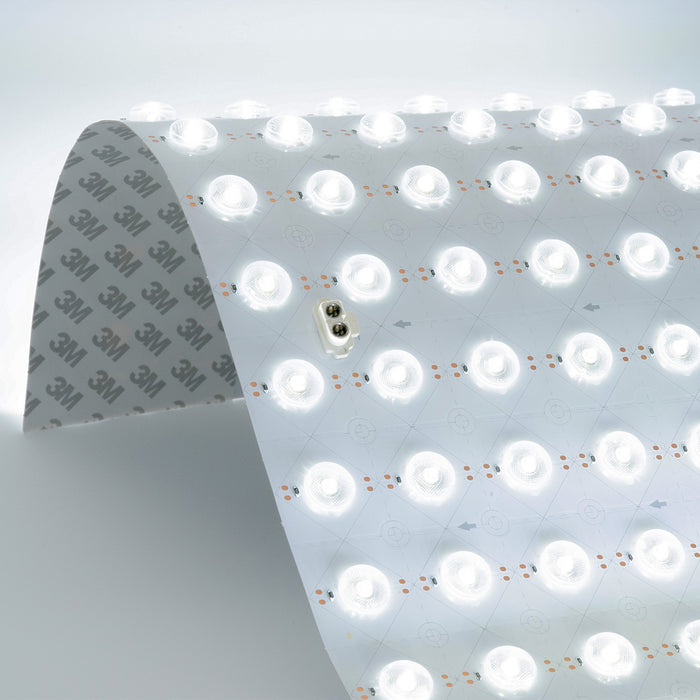

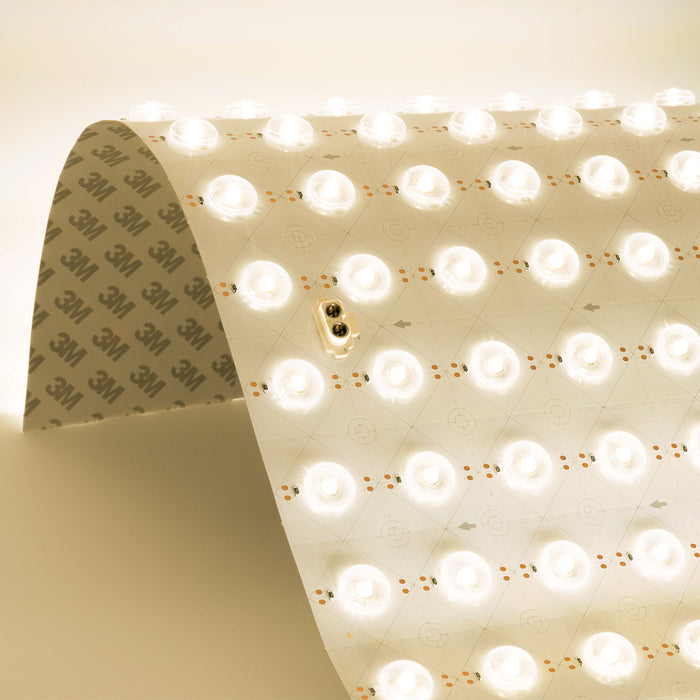

The Classic 128 LED Light Sheet utilises proven 2835 LED technology across a flexible PCB substrate, allowing the panel to conform to curved surfaces while maintaining uniform light output. The 175° beam angle lenses are precision-engineered to eliminate visible LED hotspots, creating seamless illumination ideal for professional signage and architectural applications. With power terminals positioned on all four sides, installers can configure complex multi-panel arrays with power entry from the most convenient location. The flexible design achieves a 25mm minimum bend radius without damaging the LEDs or PCB traces, making it perfect for wrapping around curved architectural features.
Technical Specifications
- Model: Classic 128 LED Light Sheet - Pure White (6000K)
- LED Type: SMD2835 (128 LEDs per panel)
- Voltage: 24V DC ±5%
- Wattage: 24W per sheet at full brightness
- Luminous Efficacy: >130 lumens per watt
- Total Output: >2,800 lumens per sheet
- Colour Temperature: Pure White 6000K & Warm White 3000K
- Beam Angle: 175° (ultra-wide distribution)
Environmental & Performance
- Operating Temperature: -20°C to +50°C
- Storage Temperature: -30°C to +60°C
- Humidity: Up to 85% RH (non-condensing)
- Dimensions: 503mm (L) × 240mm (W) × 5.8mm (H)
- Minimum Bend Radius: 25mm
- Weight: Approximately 180g per sheet
- IP Rating: IP20 (indoor dry locations only)
- Lifespan: 30,000 hours (approximately 10+ years at 8 hours daily use)
- Warranty: 24 months manufacturer's warranty
Cutting & Customisation

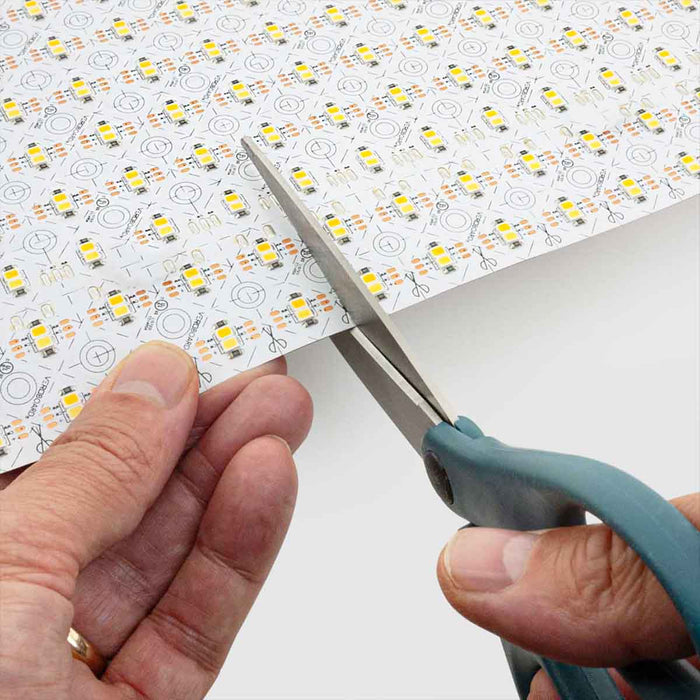

Custom Shapes: The LED sheet features cut lines at every LED position, allowing precise trimming to fit irregular shapes and custom lightbox configurations. Cut along marked lines using sharp scissors or a craft knife. Once cut, the panel will require a new power connection point - ensure cut edges are sealed if operating in humid environments.
Installation & Compatibility
- Mounting Method: Pre-mounted 3M-equivalent adhesive tape on rear surface; apply to clean, dry, smooth surfaces

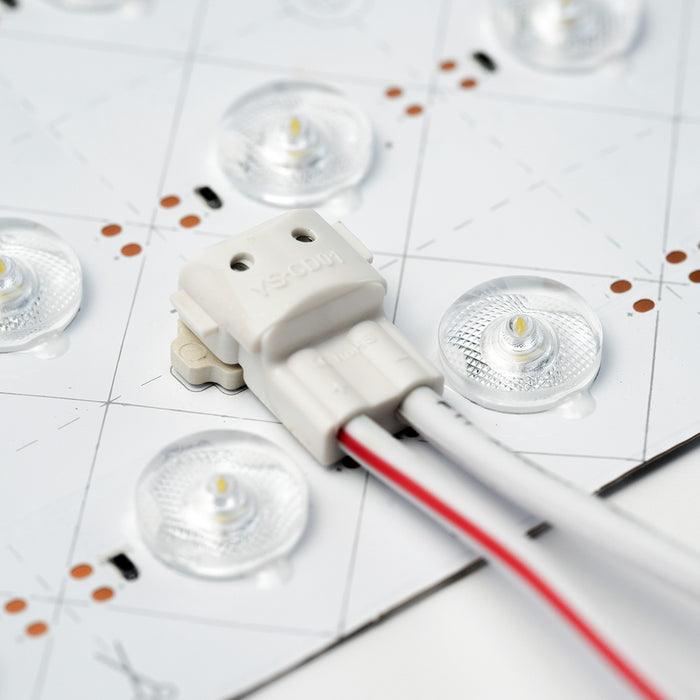

- Power Connection: Four-side terminal design accepts standard LED strip connectors; use included power and joining connectors
- Compatible Power Supplies: Any 24V DC constant voltage LED power supply; calculate total wattage and add 20% overhead (e.g., 4 sheets = 96W load, recommend 120W+ power supply)
- Compatible Dimmers: Works with any 24V DC PWM or 0-10V dimmers rated for total system load
- Maximum Chain Length: 10 panels per power supply connection; larger installations require multiple power zones
Quality Notes
- Batch Consistency: LED sheets ordered together are matched from the same production batch for consistent colour temperature
- Separate Orders: Sheets purchased at different times may exhibit slight colour variations due to different manufacturing batches
- Professional Installation: For commercial installations or complex multi-panel arrays, we recommend professional installation to ensure proper power distribution and optimal performance
