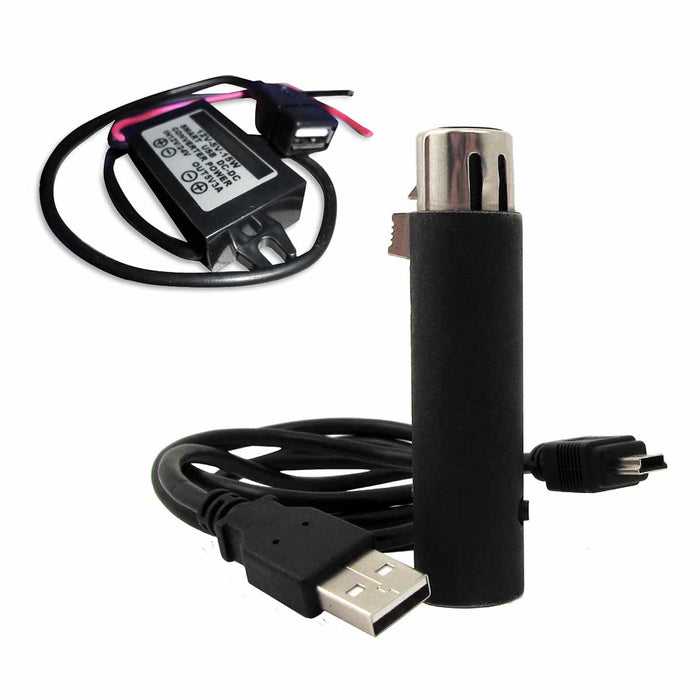

SUSHI-Z1 USB-DMX Controller – Professional Standalone DMX Programming Made Simple
The SUSHI-Z1 USB-DMX Controller excels as a standalone DMX solution, allowing you to program complex lighting scenes on your computer, save them directly to the controller, then deploy the unit independently with just a power source and DMX decoder. This powerful interface transforms any lighting installation into an automated display, perfect for permanent installations that need reliable, computer-free operation.
Key Advantages:
-
Standalone Excellence – Program once, run anywhere - create scenes on PC/Mac then operate without any computer
-
Onboard Scene Memory – Store multiple lighting programs directly on the controller for autonomous playback
-
Simple Deployment – Just connect power and DMX decoder to run your pre-programmed lighting displays
-
Smart Upgrade Technology (SUT) – Expand from 12 to 512 channels in standalone mode for complex installations. (This is an optional upgrade on the manufacturers website when registering the interface. apx £20)
-
Multi-Software Programming – Use any included software to create scenes: ESA 2 Express, Daslight, Sunlite, or Lumidesk
Perfect Applications:
-
Retail Window Displays – Program seasonal lighting that runs automatically without daily setup
-
Architectural Installations – Create building façade lighting that operates independently every night
-
Exhibition Stands – Set up trade show lighting that runs all day without laptop connection
-
Restaurant Ambiance – Design mood lighting sequences that cycle throughout service hours
-
Signage Illumination – Control LED signage and display lighting with timed sequences
Standalone Operation Benefits:
-
Computer-Free Running – Once programmed, operates independently with just power supply
-
Scene Selection Button – Easily cycle through stored programs without reconnecting to computer
-
Reliable Performance – No risk of computer crashes or software issues during operation
-
Quick Installation – Deploy multiple units with identical programs for synchronized displays
Programming & Deployment Process:
-
Create Your Scenes = Design lighting sequences using included software on PC/Mac
-
Save to Controller = Store programs directly to SUSHI-Z1's internal memory
-
Disconnect & Deploy = Remove USB, connect power and DMX decoder
-
Run Standalone = Controller plays scenes automatically or via button selection
-
Update Anytime = Reconnect to computer whenever program changes are needed
Browse our DMX decoders for LED strip control and DMX cables or contact our technical team for free consultation: sales@weloveleds.co.uk
Professional Quality You Can Trust:
Built with industrial-grade components for 24/7 operation in standalone mode. Operates reliably from -10°C to +45°C, making it perfect for both indoor displays and protected outdoor installations. Software updates available at www.arcolis.com.
Planning a permanent installation? We offer complete system design including DMX decoders, power supplies, and cabling for standalone lighting projects.
Standalone DMX Control Technology
The SUSHI-Z1's standalone mode is its standout feature for permanent installations. Program your lighting sequences using any of the included software platforms, then save directly to the controller's internal memory. Once deployed, the SUSHI-Z1 operates independently, sending DMX signals to connected decoders without requiring any computer connection. The single button interface allows easy scene selection, while LED indicators confirm operational status.
Technical Specifications
- Model: SUSHI-Z1
- Input Power: 5V DC 0.3A (via included converter)
- Output Protocol: DMX512 standard
- Output Connector: 3-pin XLR female
- Standalone Channels: 12 channels (expandable to 512)
- Live Control Channels: 128 channels (expandable to 512)
Standalone Memory Capacity
- 12 Channels: 504 steps across 4 scenes (ideal for RGB control)
- 60 Channels: 122 steps across 4 scenes (multi-zone installations)
- 256 Channels: 26 steps across 4 scenes (complex displays)
- 512 Channels: 10 steps across 4 scenes (full DMX universe)
Environmental & Performance
- Operating Temperature: -10°C to +45°C
- Storage Temperature: -20°C to +60°C
- Humidity: 0-95% non-condensing
- Dimensions: 75mm × 20mm × 17mm
- Weight: 45g (approximate)
- Certification: CE compliant
- DMX Chipsets: SP485ECP-L, MAX485CPA+, ADM485JNZ
Programming Software (Included)
Lifetime Licenses:
- ESA 2 Express (Windows & Mac)
- Daslight DVC1 & DVC2 (Windows)
- Sunlite 2004 Express (Windows)
- Lumidesk (Windows)
- Arcolis Designer (Android)
1-Year Licenses:
- Light Rider (Android)
- Daslight 4 (Windows & Mac)
- Easy View Connect (Windows & Mac)
- Sunlite Suite 2 (Windows)
Installation & Compatibility
- Programming Requirements: Windows 10/11, Mac OS X 10.14+, or Android 7+
- Standalone Requirements: 5V power source, DMX decoder, DMX cabling
- DMX Compatibility: Full DMX512 protocol support
- Fixture Library: 20,000+ fixtures from 500+ manufacturers
Operating Modes
- Standalone Mode: Run pre-programmed scenes without computer
- Live PC/Mac Mode: Real-time control via USB for programming or live shows
- Button Control: Single button for scene selection in standalone mode
- LED Indicators: Red (system status) and Green (mode/scene display)
Quality Notes
- Deployment Flexibility: Program multiple controllers with identical scenes for synchronized installations
- Memory Retention – Scenes remain stored even when powered off
- Professional Note: For RGB LED strip control, pair with our 12-channel DMX decoder for up to 60A total output
