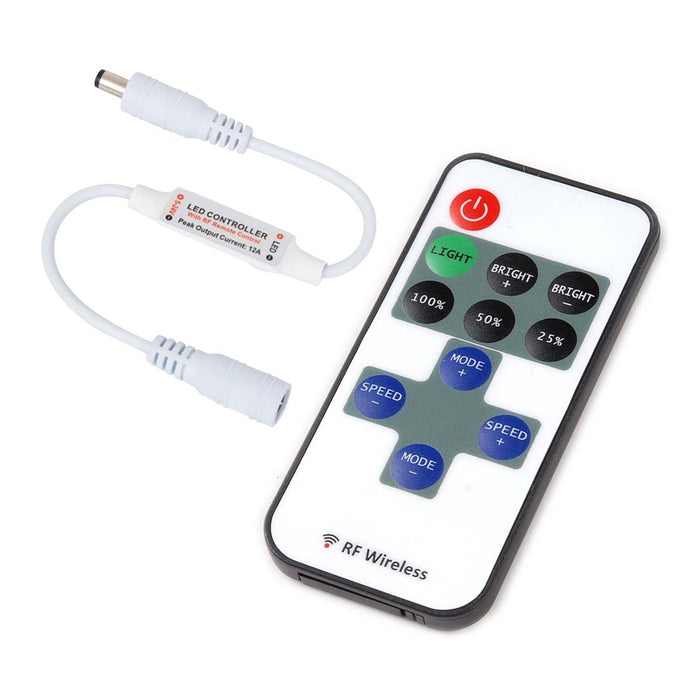

Micro Dimmer/Flasher – Professional Lighting Control in Ultra-Compact Design
This ultra-compact micro dimmer/flasher delivers professional lighting control with wireless convenience, featuring 8 dynamic modes and instant brightness presets via 433MHz remote control. Designed for seamless integration between power supplies and LED lighting, this controller offers exceptional versatility in the smallest possible package.
Key Advantages:
-
Ultra-Compact Design – 42×12×3mm controller fits anywhere with convenient 2.1mm DC connectors
-
Wireless 433MHz Control – 30-meter range operation with reliable signal transmission
-
8 Dynamic Modes – Complete range of effects from breathing to strobe patterns
-
Instant Brightness Presets – One-press access to 25%, 50%, and 100% brightness levels
-
Universal Voltage Compatibility – Works with 5V, 12V, and 24V LED systems up to 6A
Perfect Applications:
-
Cabinet Lighting – Precise dimming control for kitchen and display cabinets
-
Architectural Features – Dynamic effects for accent lighting and cove installations
-
Display Lighting – Professional control for retail and exhibition lighting
-
Under-Cabinet Systems – Seamless integration for workspace and ambient lighting
-
Decorative Installations – Creative effects for home and commercial environments
Installation Advantages:
-
Plug-and-Play Connection – Ready-to-use 2.1mm DC connectors on both ends
-
Flexible Installation – Connectors can be removed for direct wire connection
-
Compact Footprint – Fits in tight spaces where larger controllers cannot
-
Protected Installation – Requires weatherproof housing for outdoor applications
System Planning Made Simple:
-
Maximum Load = 6A per controller
-
5V System = 30W maximum output (typical 5-meter LED strip)
-
12V System = 72W maximum output (requires compatible power supply)
-
24V System = 144W maximum output (requires compatible power supply)
-
Multiple Controllers = Use several units for zone control and extended installations
Browse our single colour LED strips and compatible power supplies or contact our technical team for free consultation: sales@weloveleds.co.uk
Professional Quality You Can Trust:
Professional-grade 433MHz wireless technology with 30-meter range and reliable performance. Compact design doesn't compromise on functionality or durability.
Planning a bigger project? We offer technical consultation and system design for commercial lighting installations.
Professional 433MHz Wireless Control
Advanced 433.92MHz wireless technology provides reliable control up to 30 meters in open space. The system features automatic pairing and memory retention, ensuring consistent operation. Eight pre-programmed dynamic modes offer professional lighting effects, while instant brightness presets (25%, 50%, 100%) provide quick access to common lighting levels.
Technical Specifications
- Model: Micro Dimmer/Flasher with Remote 6A
- Input Voltage: DC 5-24V (universal compatibility)
- Maximum Current: 6A per channel
- Output Power: 30W (5V), 72W (12V), 144W (24V)
- Working Frequency: 433.92MHz
- Remote Range: 30m in open space
- Controller Dimensions: 42×12×3mm (plus connectors)
Environmental & Performance
- Operating Temperature: -30°C to +55°C
- Storage Temperature: -40°C to +70°C
- Humidity: <95% non-condensing
- Dimensions: 42×12×3mm controller body
- Weight: 35g including remote
- IP Rating: Not waterproof (requires protection in damp locations)
- Lifespan: 50,000+ hours typical operation
- Warranty: 12 months manufacturer warranty
Dynamic Mode Selection
8 Built-in Effects: Breathing, half-breathing, strobe, 1:3 flash, 3:1 flash, flash alternately, blasting flash, and fade automatic modes provide comprehensive lighting effects for any application.
Installation & Compatibility
- Connection Method: 2.1mm DC connectors (male output, female input)
- Wire Compatibility: Connectors removable for direct wire connection
- LED Compatibility: All single colour LED strips and modules 5V-24V
- Power Supply Requirements: Matching voltage rated for load current
- Installation Environment: Indoor use or weatherproof enclosure required
Quality Notes
- Professional Grade Components – Designed for continuous operation and reliable performance
- Memory Function – Retains last used settings after power cycling
- Installation Recommendation: Install in accessible location for easy pairing and maintenance
