G45 Polycarbonate Complete Unit – Individual Light Unit for Expanding Existing Kits
Add authentic golfball lighting to your fairground displays with our G45 polycarbonate complete units. Each unit combines a durable opal polycarbonate golfball bulb with coloured LEDs and professional lampholder assembly, providing everything needed for a single additional light in your existing 24V fairground lighting system.
Suitable Applications:
Individual light units for expanding fairground lighting kits, adding golfball styling to existing 24V systems, and creating mixed lighting displays.
Individual Light Unit Advantages:
-
Single light assembly – G45 opal polycarbonate bulb with coloured LEDs, E14 lampholder, back nut, and face nut for one additional light
-
Kit expansion compatible – perfect for adding to existing E10 & E14 fairground lighting kits with 24V power supplies
-
Durable polycarbonate construction – opal polycarbonate housing with coloured LEDs creates classic fairground golfball effect
-
Professional mounting – white or black lampholder options to match existing installations
-
Front-access maintenance – service bulbs from the face without requiring rear access
Perfect Applications:
-
Kit expansions – add golfball lighting to existing E10 & E14 fairground kits
-
Mixed lighting displays – combine with cabochon lights for varied visual effects
-
Individual replacements – replace single units in existing installations
-
Custom configurations – create bespoke lighting arrangements with existing 24V systems
-
Themed additions – add golfball styling to established fairground lighting setups
Installation Advantages:
-
Simple mounting – drill 20mm hole, push lampholder through, screw face nut from front
-
Front-access maintenance – service bulbs from the face without rear access required
-
Secure connection – professional lampholder eliminates wire stripping with screw-down terminals
-
Material compatibility – works with panels up to 10mm thick with 25mm rear clearance required
Power Planning Made Simple:
-
Single unit = 1.15W
-
10-light display = 11.5W (typical small sign application)
-
20-light installation = 23W (standard marquee letter expansion)
-
Kit compatibility – check individual kit pages for maximum additional units without PSU upgrade
Browse our fairground kits and G45 components or contact our technical team for free consultation: sales@weloveleds.co.uk
Professional Quality You Can Trust:
Long-life LED operation with opal polycarbonate construction and professional lampholder assembly. Available in 3 LED colours with white or black mounting options. Designed for use with existing 24V fairground lighting systems.
Planning a bigger project? We can tailor-make kits to your exact requirements - just ask!
Individual light units supplied as single assemblies for adding to existing fairground lighting systems.
What You Receive:

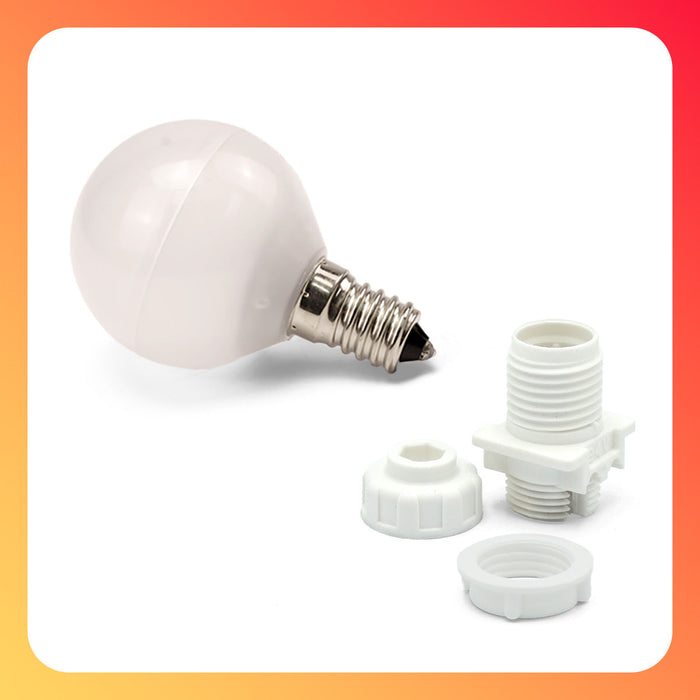

- ✅ G45 Polycarbonate LED Bulb – opal polycarbonate construction with coloured LEDs in your chosen colour
- ✅ E14 Lampholder & Back Nut – professional mounting hardware in white or black
- ✅ E14 Face Nut – front-access mounting for secure installation
- ✅ Single light assembly – all components for one additional light unit
What's Not Included:
- ❌ 24V Power Supply - requires connection to existing 24V system or separate PSU
- ❌ Wiring & connectors - connecting wire and terminals needed to link to power source
- ❌ Mounting panel - requires substrate for installation
- ❌ Complete lighting kit - this is an individual light unit, not a full system
Additional Services:
🔧 Custom Kits: We can tailor-make complete kits to your exact requirements - sales@weloveleds.co.uk
🎨 Colour Mixing: Select 'Mixed' and specify your colour combination in checkout notes
📋 Installation Guides: Download our Cabochon Fitting Guide and Kit Checklist for professional installation
Professional Kit Expansion & Compatibility
These individual light units are specifically designed for expanding existing fairground lighting kits or creating custom lighting arrangements with 24V systems. Perfect for adding golfball styling to established cabochon lighting displays or creating mixed lighting effects.
Technical Specifications
- Fitting Type: E14 screw fitting (Small Edison Screw) with complete lampholder assembly
- Voltage: 24V DC (±10% tolerance) - lampholder rated to 240V but marked 24V for kit purposes
- Power Consumption: 1.15W per complete unit at full brightness
- Current Draw: 48mA per unit
- Bulb Construction: Opal polycarbonate golfball with coloured LEDs for durable fairground lighting
- Cabochon Dimensions: 60mm diameter tapering to 40mm × 63mm height
- Hole Size Required: 20mm diameter for lampholder installation
- Material Thickness: Up to 10mm maximum (panel thickness for mounting)
- Rear Clearance: 25mm minimum required for lampholder nut and wiring connections
- Mounting Hardware: Professional E14 lampholder with back nut and face nut included
LED Bulb Specifications
- LED Type: G45 polycarbonate golfball with opal finish
- LED Configuration: Coloured LEDs within opal polycarbonate housing for authentic fairground effect
- Colour Options: Red, Blue, and limited availability Warm White
- Appearance When Off: All coloured bulbs appear opal white when not illuminated
- Construction Effect: Opal polycarbonate diffuses coloured LED light for classic fairground golfball appearance
- Material: Durable opal polycarbonate construction with integrated coloured LED array
- Lifespan: Long-life LED operation with superior colour consistency
Environmental & Performance
- Operating Temperature: -10°C to +45°C
- Storage Temperature: -20°C to +60°C
- IP Rating: IP20 (Indoor use - suitable for outdoor when protected in sealed enclosures)
- Vibration Resistance: Suitable for fairground and mobile applications
- UV Resistance: Opal polycarbonate material resists fading and maintains appearance
- Professional Grade: Designed for continuous operation in demanding commercial environments
Colour & Mounting Options
LED Colours Available:

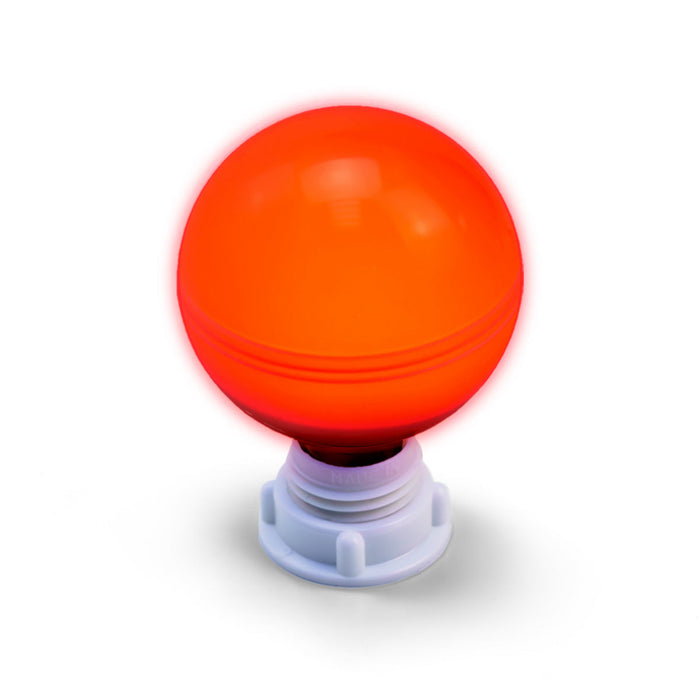

- Red – vibrant red LEDs within opal plastic for classic fairground appearance

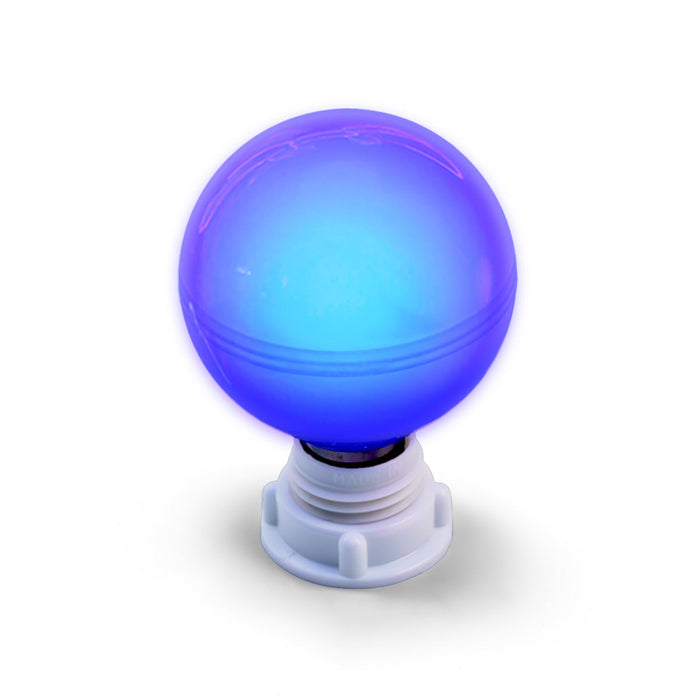

- Blue – deep blue LEDs for accent lighting and themed installations

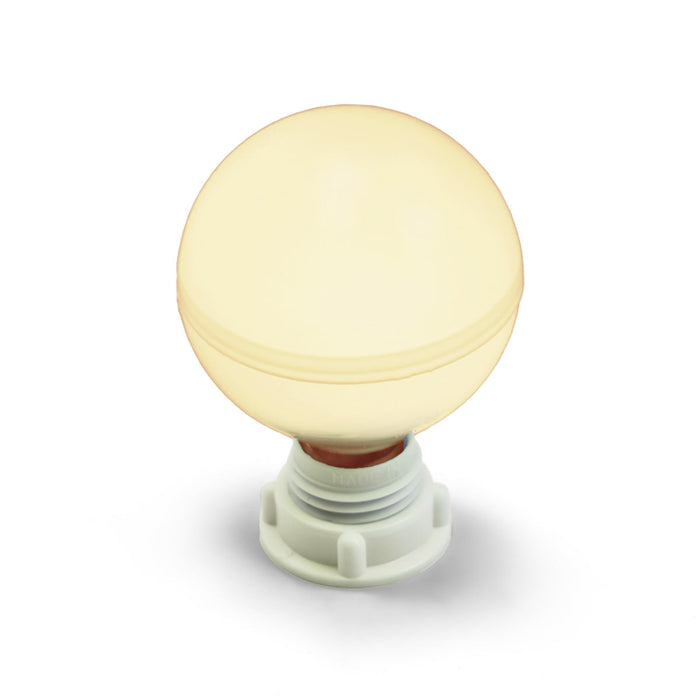

- Warm White – limited availability, classic warm tone for vintage ambiance
Lampholder Finishes:
- White – clean, neutral finish for bright, modern installations

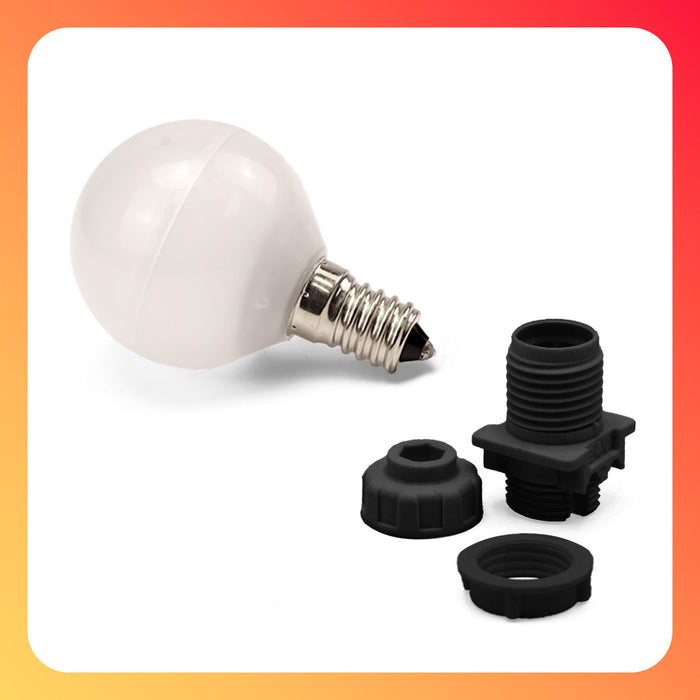

- Black – sophisticated finish for contemporary and industrial-style applications
Installation & Compatibility
- Mounting Method: 20mm hole through panel, lampholder from rear, face nut secures from front
- Wiring: Screw terminals in lampholder - no wire stripping required
- Power Supply: 24V constant voltage LED drivers or transformers
- Kit Expansion: Compatible with existing fairground lighting kits (check individual kit specifications)
- Front Access: Bulb replacement and maintenance possible from face of installation
Quality & Application Notes
- Individual Light Units: Each unit provides components for one additional light in your system
- Kit Compatibility: Perfect for expanding existing E10 & E14 fairground lighting installations
- Colour Consistency: Order sufficient quantities from single batch for consistent colour matching
- Professional Installation: Includes all mounting hardware for single light assembly
- System Integration: Designed to work with existing 24V fairground lighting systems
- Maintenance Advantage: Front-access design eliminates need for rear panel access during servicing
Professional Applications
Ideal for fairground attractions, themed restaurants, entertainment venues, marquee letters, and any application requiring authentic vintage fairground character with modern LED reliability and convenience.
