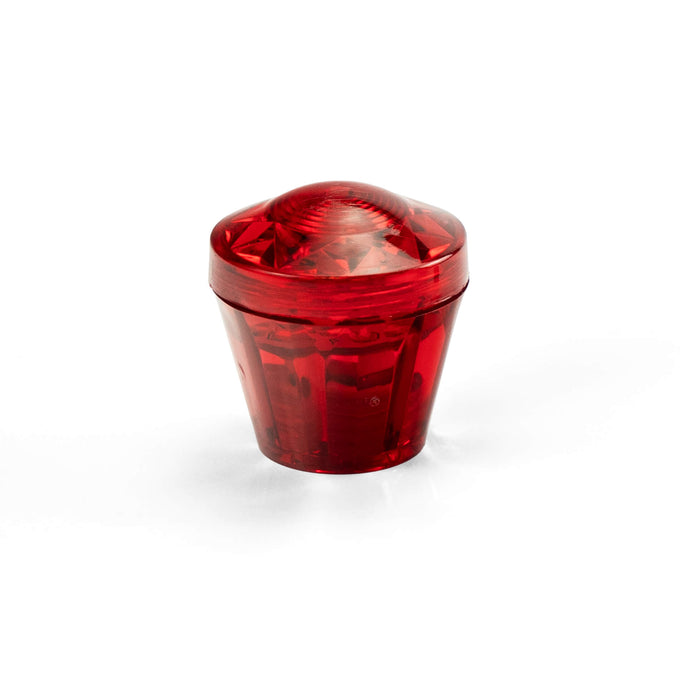

E10 Cabochon Cap & Base | 40mm × 43mm H | 15 Colours

E10 Cabochon Cap & Base | 40mm × 43mm H | 15 Colours

£0.75 - £0.75
£0.75
£0.75 - £0.75
£0.75

Suitable Applications:

Use with E10 lampholders to create fairground style signs, letters and lighting

  • Style/Size: E10
  • Voltage:
  • Wattage: n/a
  • Lumens:

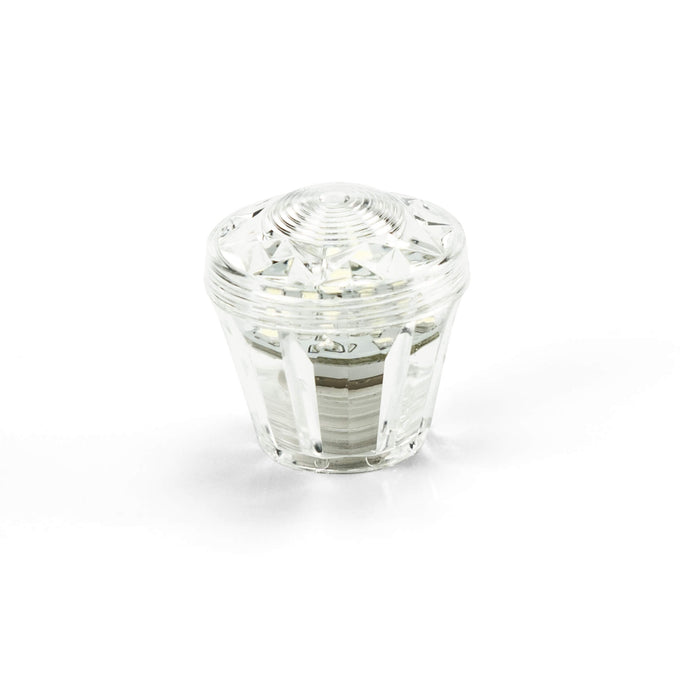

Colour: Clear

Compact fairground cabochons that punch well above their size! The conic base sends light radially, while the diamond-cut lens cap flares it in every direction for a vibrant 360° effect. Injection-moulded from crystal-clear methacrylate, they’re tough enough for indoor or outdoor signage.

👉 Mix ’n’ match with compatible parts:

Need project advice or bulk pricing? Email sales@weloveleds.co.uk – we’re happy to help.

• 1 × E10 Cabochon Cap
• 1 × E10 Cabochon Base
(sold individually – order one set per lamp position)

You’ll also need:

  1. E10 spike lampholder & nut
  2. Suitable 24V LED or 24V / 230V incandescent lamp
  3. 24V power supply unit (if using 24V lamps)

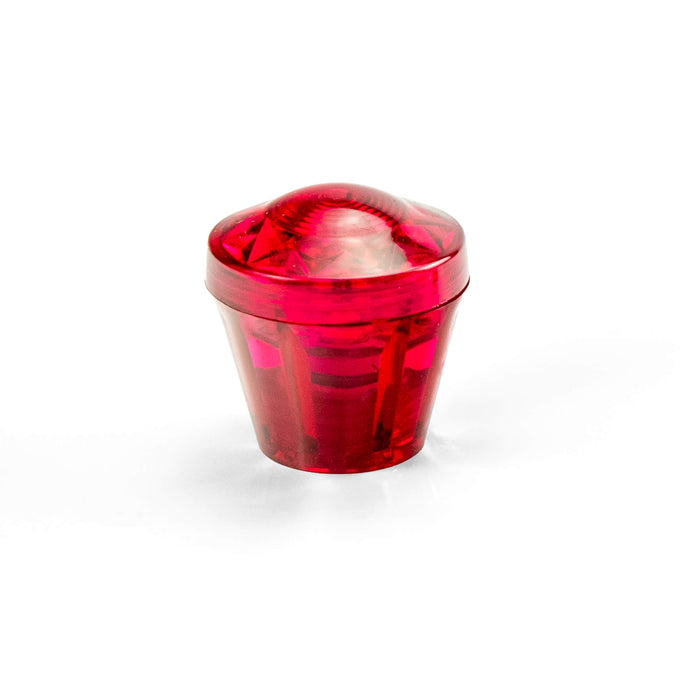

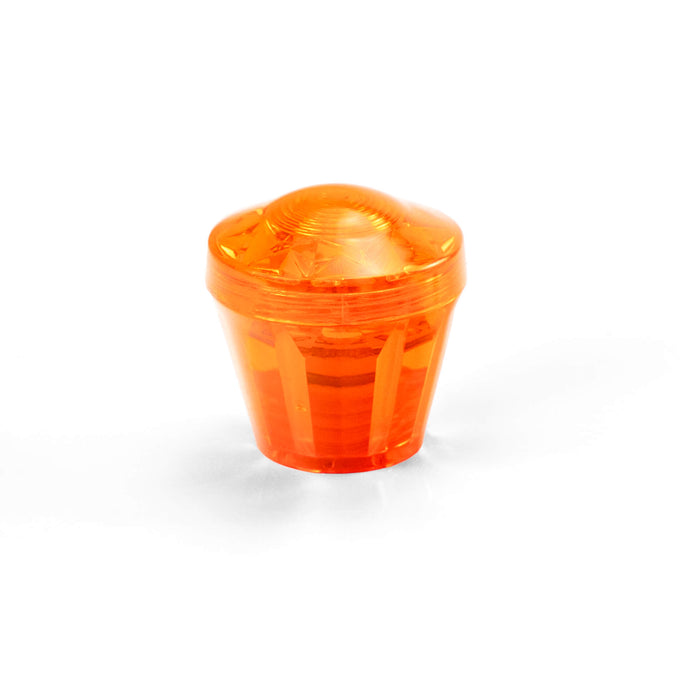

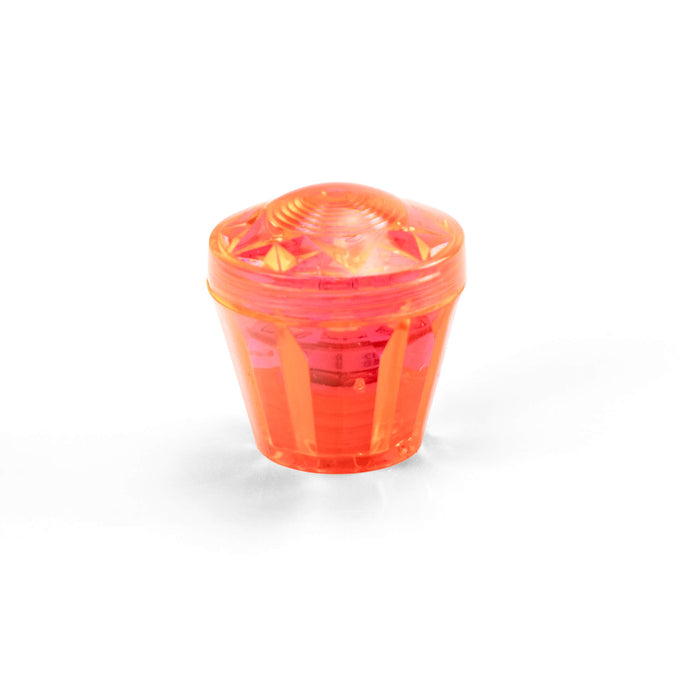

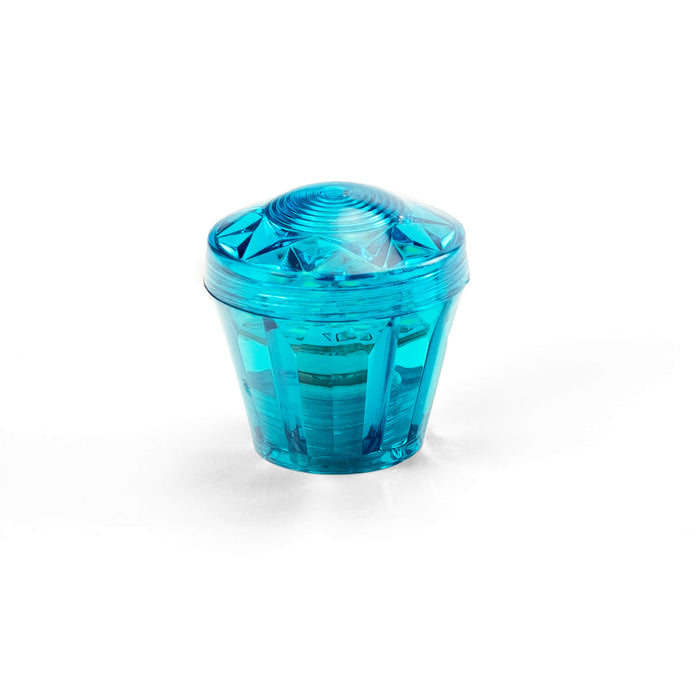

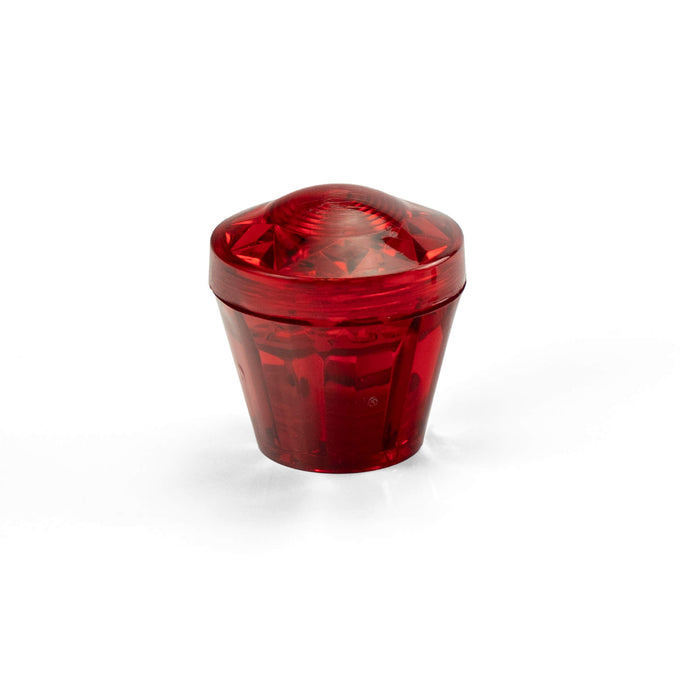

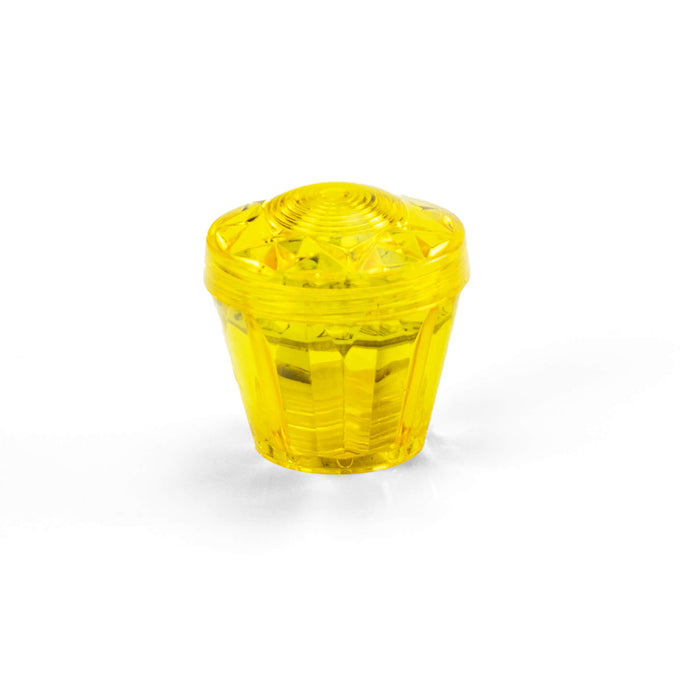

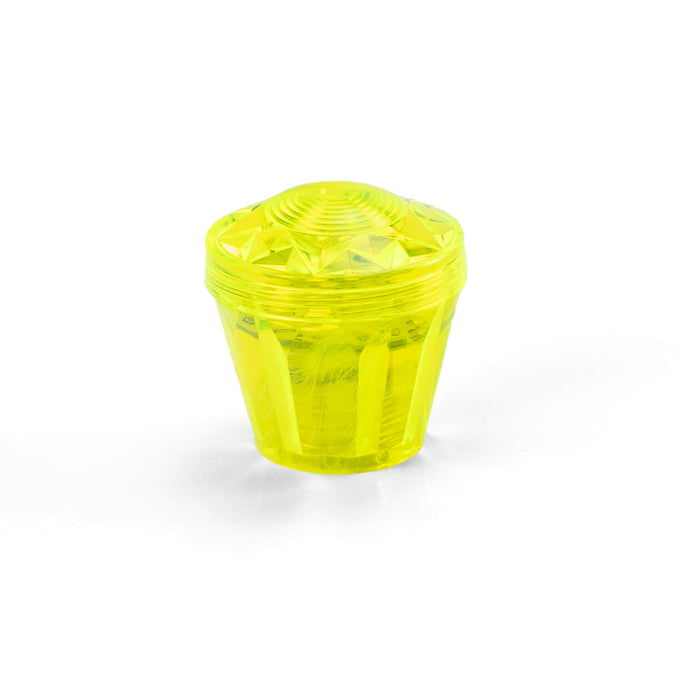

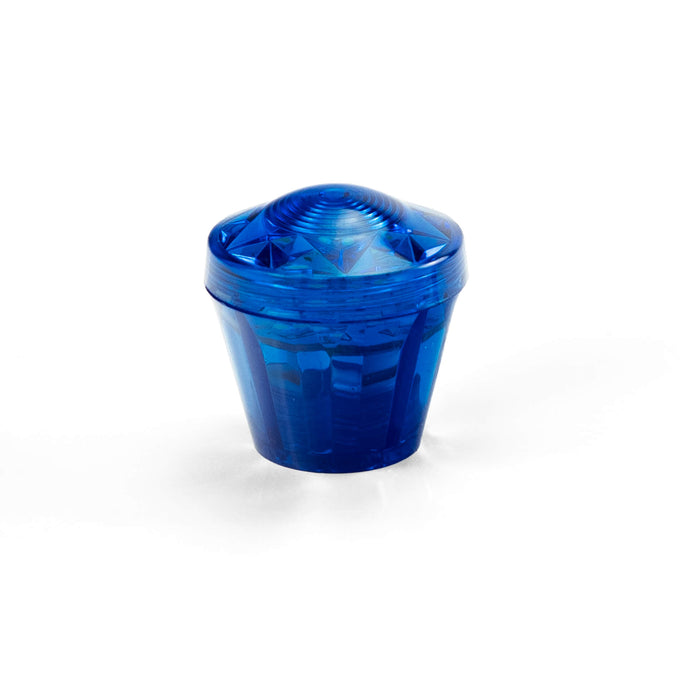

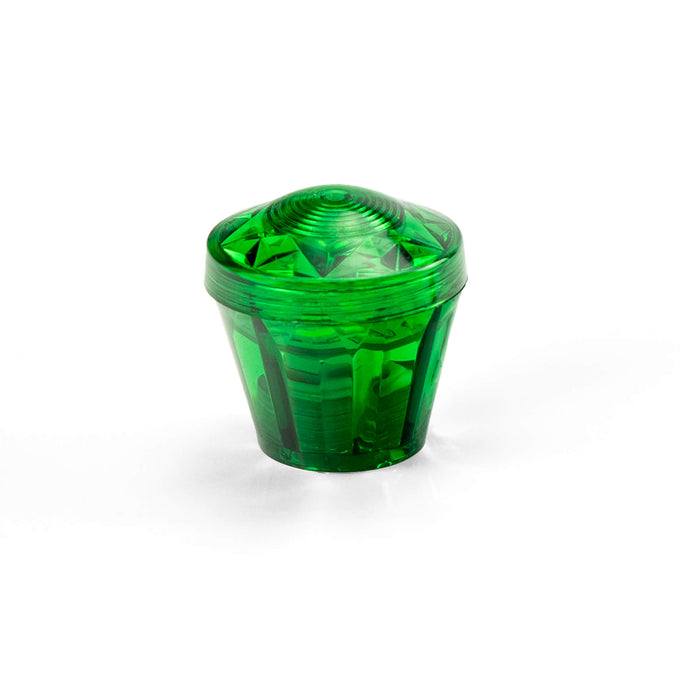

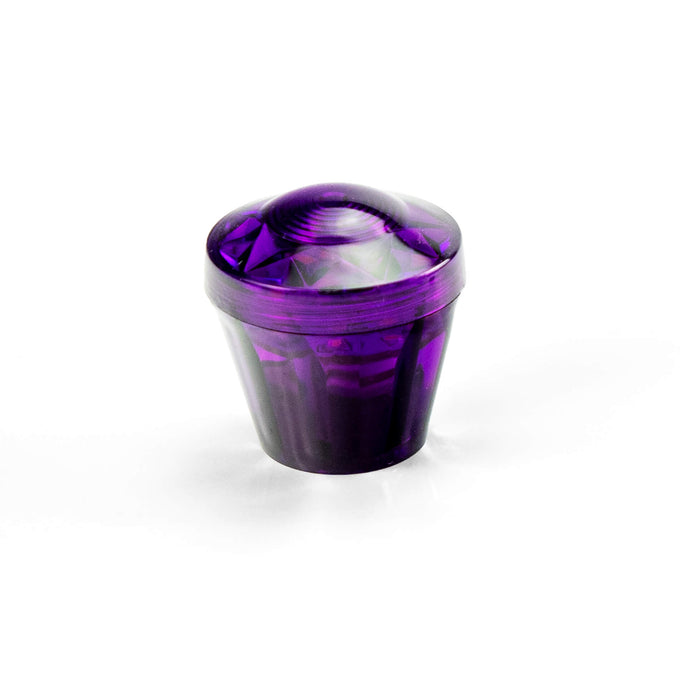

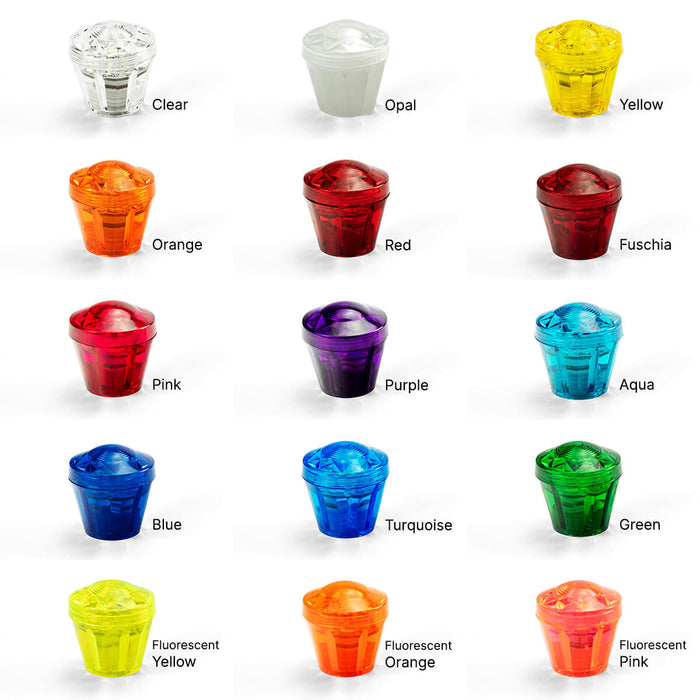

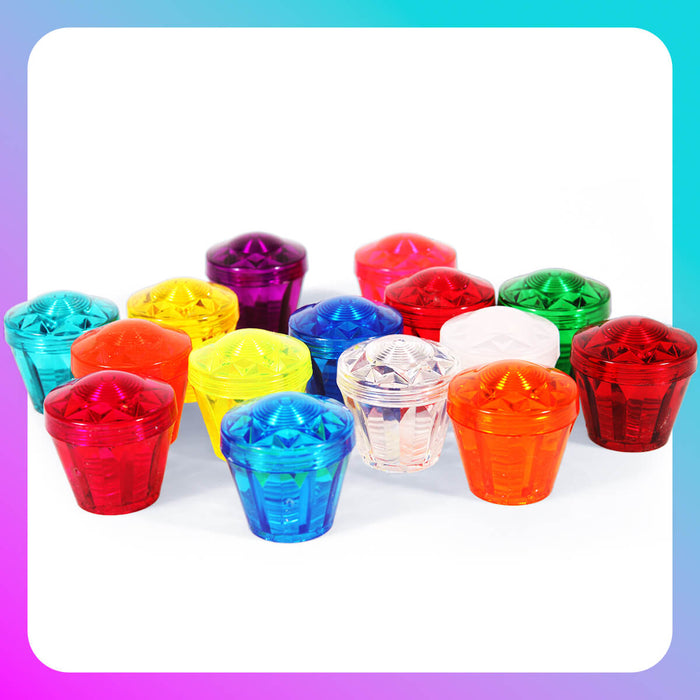

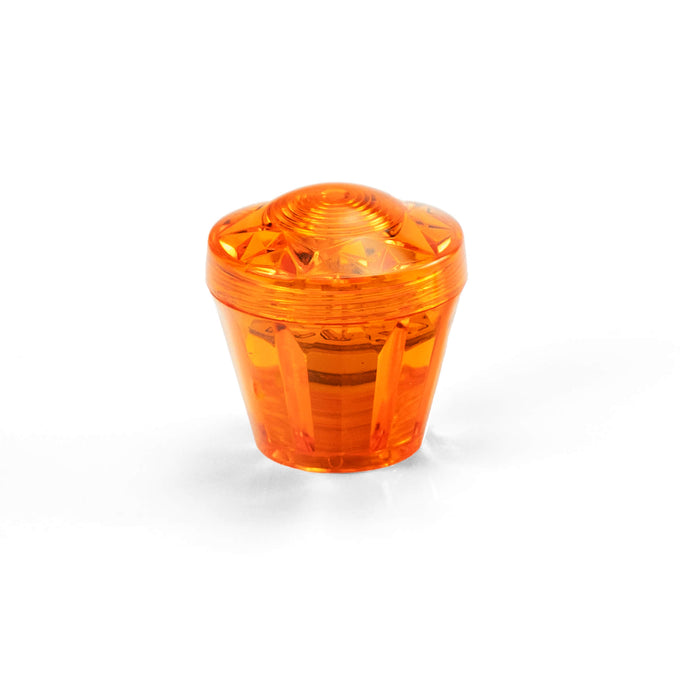

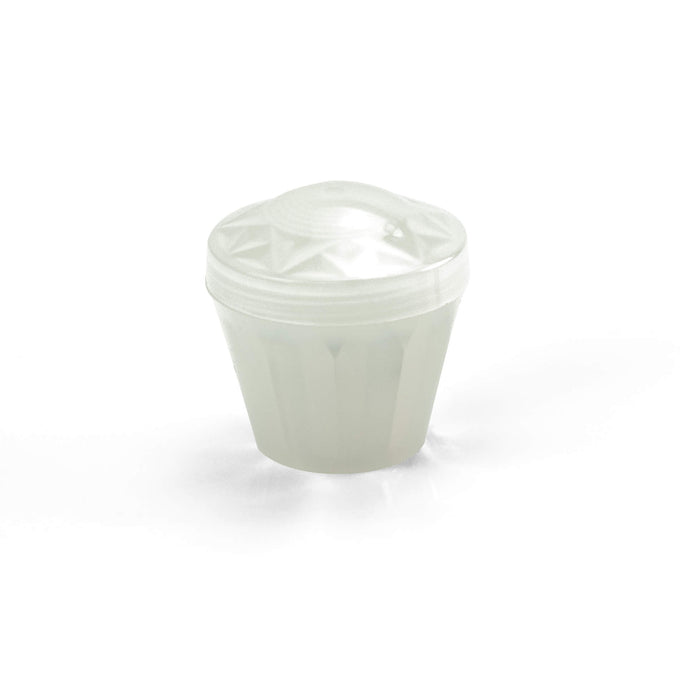

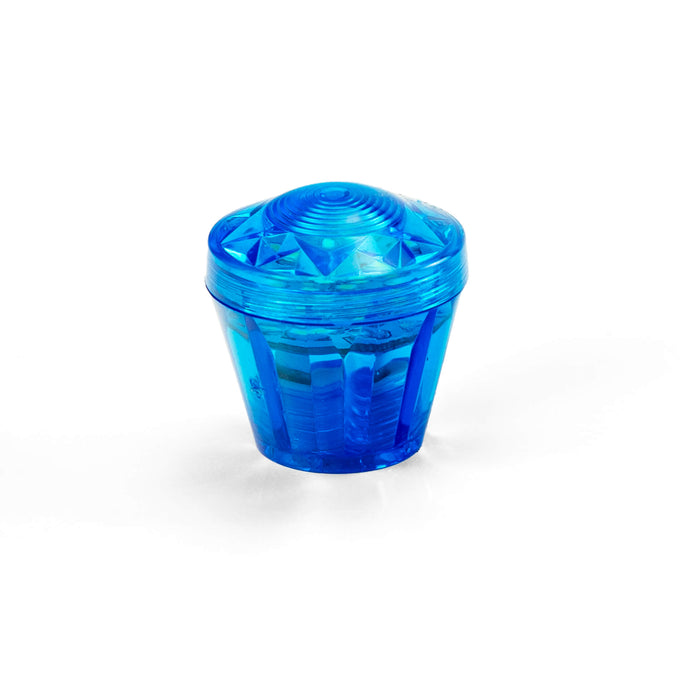

Colour options (15): Aqua, Blue, Clear, Fuchsia, Green, Magenta, Opal, Orange, Purple, Red, Turquoise, Yellow, Fluorescent: Pink, Yellow, Orange

Technical Details

  • Size: 40mm diameter (tapers to 25mm) × 43mm high
  • Socket: Internal thread for E10 lampholder
  • Material: Transparent methacrylate (PMMA)
  • Beam effect: Radial ribs on base, diamond lens on cap
  • Operating voltage: Lamp-dependent (24V or 230V)
  • Warranty: TBC
  • Pack quantity: TBC
  • IP / ingress rating: n/a
  • Operating temperature: n/a

Notes:

  • Clean with mild soap only; solvents may craze PMMA.
  • LEDs bought at different times can vary slightly in colour – order all lamps together for a perfect match.
