E10 Flat Complete Unit with 40mm cap

E10 Flat Complete Unit with 40mm cap

£3.95 - £4.45
£4.45
£3.95 - £4.45
£4.45

Suitable Applications:

Use with other E10 components to create fairground style signs, letters and lighting

  • Style/Size: E10
  • Voltage: 24v
  • Wattage: 1.2w p/light
  • Lumens:

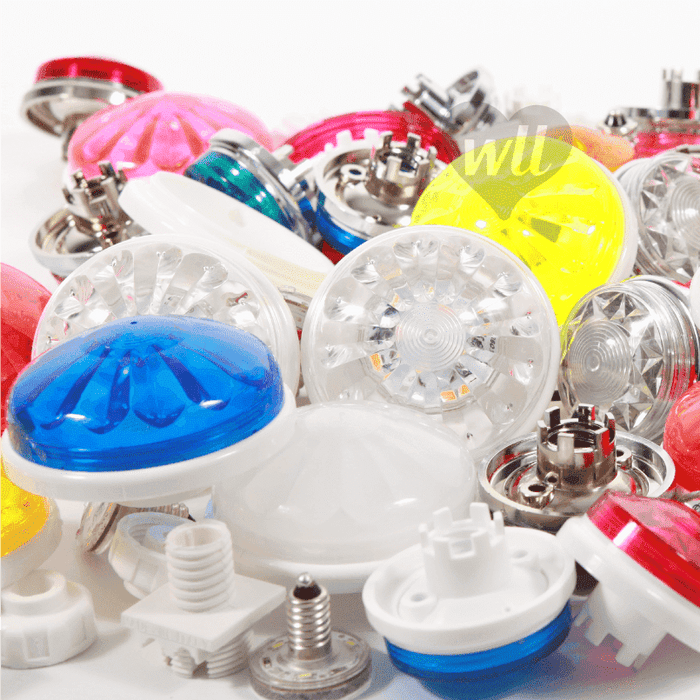

Our E10 Flat Fairground lights create a different effect from the standard cabochons, giving an stunning illumination to the face whilst being very low profile units.
The caps are made of multicolor transparent metachrylate and have a bright effect with central luminous lens. With 15 UFO cap colours, 2 base colours & 2 LED colours to choose from you can create 1000's of combinations.

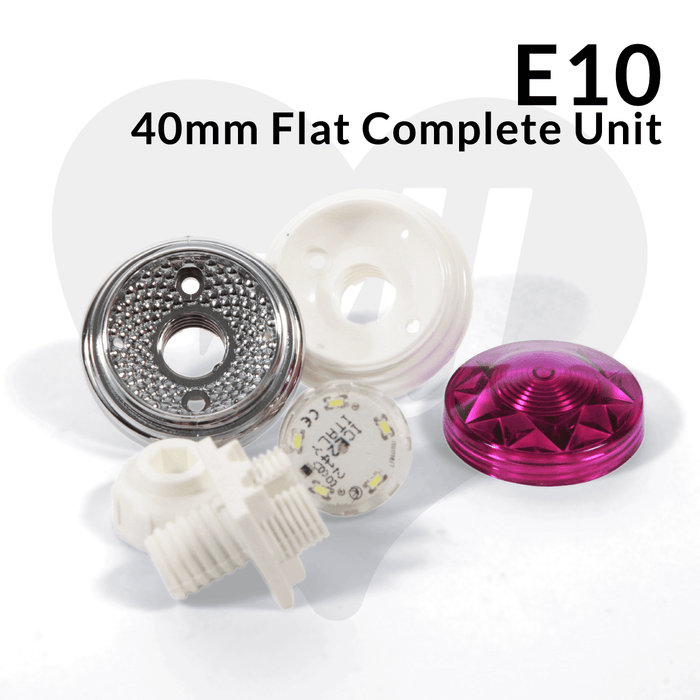

  • Flat Adapter & Cabochon Cap
  • LED Bulb
  • Lampholder
  • The flat cabochon base is 47mm dia, in white or chrome finish, and with the standard E10 40mm dia cap, the overall height is 21mm.
  • It has an extended back which protrudes 14mm and is 18mm dia.
  • This will need a 19mm hole in your panel.
  • A standard E10 lampholder would screw into the this part from the back.

Download our guides:
