Classic 120 LED Strip (2nd Gen) – Enhanced Efficiency with Advanced LED Technology
Our upgraded 2nd generation Classic strip features the latest SMD2835 LED chip technology for improved efficiency and performance. Delivering the same reliable 120 LEDs per metre in the familiar 8mm width, this enhanced design offers better lumens per watt whilst maintaining the cost-effective positioning that made the Classic range so popular.
2nd Gen Technology Improvements:
-
Advanced SMD2835 chips – newer technology delivering >105 lumens per watt (vs >88 on 1st Gen)
-
Enhanced efficiency – same 9.6W consumption with improved light output
-
Extended warranty – 5-year coverage demonstrates confidence in the upgraded technology
-
Four white temperatures – Pure, Natural, Warm, and Very Warm White options
-
Proven reliability – maintains the Classic profile customers trust
-
24V system benefits – extended runs for larger installations
Perfect Applications:
-
Large-scale signage – extended runs for bigger channel letters and displays
-
Commercial installations – offices, retail spaces, hospitality venues with longer runs
-
Professional projects – where improved efficiency and extended warranty matter
-
Architectural lighting – long cove runs, building perimeters, facade lighting
-
Value-conscious upgrades – better performance without premium pricing
Installation Advantages:
-
Flexible installation – no intermediate connections needed for runs up to 10m (see power planning for electrical requirements)
-
Cut exactly to length – 50mm intervals (3 LEDs) for good flexibility
-
Professional adhesive – pre-applied backing bonds to clean surfaces
-
Simple connection – compatible with all 24V LED drivers and dimmers
Power Planning Made Simple:
-
1 metre = 9.6W (efficient consumption despite enhanced performance)
-
3 metre run = 28.8W (typical application)
-
Up to 5m = 48W (requires 60W+ power supply for safety margin)
-
Up to 10m = Power from both ends (120W+ total power supply capacity)
-
Longer than 10m = Requires power injection every 5m to prevent dimming
Browse our 24V power supplies and LED dimmers or contact our technical team for free consultation: sales@weloveleds.co.uk
Planning longer runs? For installations over 10m, contact us for power injection guidance and bespoke solutions.
Enhanced Quality You Can Trust:
30,000-hour lifespan with advanced LED chip technology means your installations provide superior, consistent lighting for years. Backed by our comprehensive 5-year warranty - the longest in the Classic range. Available in four carefully selected white temperatures to suit any application requirement.
Planning a bigger project? We offer competitive reel pricing for larger installations. Contact us for a quote tailored to your specific requirements.
Product Supply Options
The strip is supplied in 10m reel or cut from the reel as per your requirement.
What You Receive:
- ✅ Full Reels (10m): LED strip with 100mm of wire pre-soldered at each end
- ✅ Per Metre: LED strip with adhesive backing
- ⚠️ Per Metre Note: Cut from part reels - wire connection not guaranteed
What's Not Included:
- ❌ Power supply - requires separate 24V power supply
- ❌ Dimmer - optional LED dimmer for brightness control
- ❌ Connectors - optional LED strip connectors for wire-free connections
- ❌ Mounting profile - aluminium profiles available separately for professional installations
Additional Services:
🔧 Bespoke Service: We can supply cut-to-length sections with pre-soldered cables - just ask!
Important Notes:
- Full reels always include wire connections for immediate use
- Per-metre cuts may require wire attachment (simple solder job or use connectors)
- Continuous lengths up to 10m can be supplied as one piece when ordering multiple metres
- Professional installation recommended for commercial applications
Professional Dimming Control
All our standard LED strips are fully dimmable for complete lighting control. Use simple inline dimmers or integrate with professional control systems for advanced lighting scenes and automation.
Inline Dimmers: LED dimmers - simple rotary or touch control on low voltage side
Dimmable Power Supplies: Dimmable 24V power supplies - integrated dimming control
Professional Systems: Compatible with DMX, DALI, 0-10V, PWM control protocols
Smart Home Integration: Works with Lutron, Loxone, Rayco, Control4, Lightwave, Wizz, Casambi, Crestron systems
Technical Specifications
- LED Type: SMD2835 – 120 LEDs per metre (2nd Gen advanced chip technology)
- Voltage: 24V DC (±10% tolerance)
- Power Consumption: 9.6W per metre at full brightness
- Current Draw: 400mA per metre
- Light Output: >1106 lumens per metre
- Luminous Efficacy: >105 lumens per watt (enhanced efficiency)

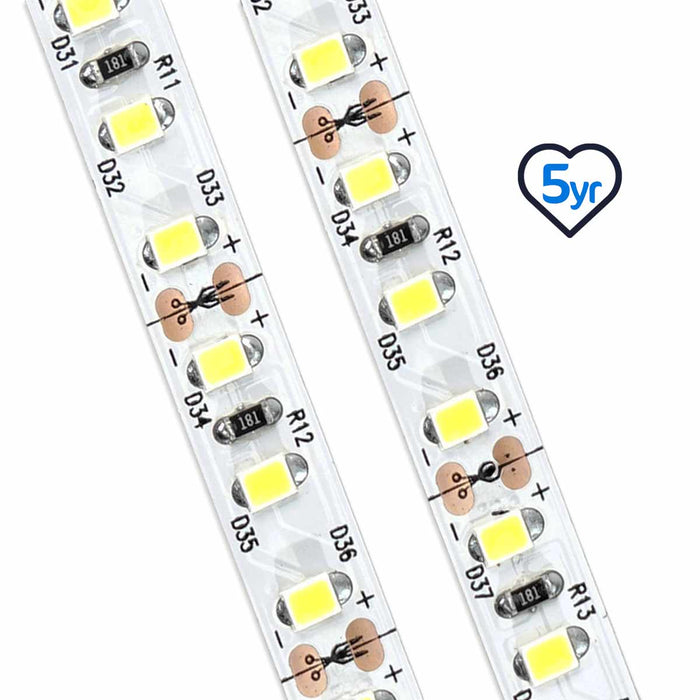

- Cut Points: Every 50mm (6 LED intervals)
- PCB Dimensions: W8mm × H2.5mm
- Max Run (Single End Power): Up to 5 metres
- Max Run (Both End Power): Up to 10 metres
- Power Injection Required: Every 5m for runs longer than 10m
Environmental & Performance
- Operating Temperature: -10°C to +45°C
- Storage Temperature: -20°C to +60°C
- IP Rating: IP20 (Indoor use only - suitable for dry locations. Can be used outdoors when protected in sealed letters/channels)
- Lifespan: 30,000 hours typical operation
- Warranty: 5 years return-to-base (RTB)
Colour Temperature Options

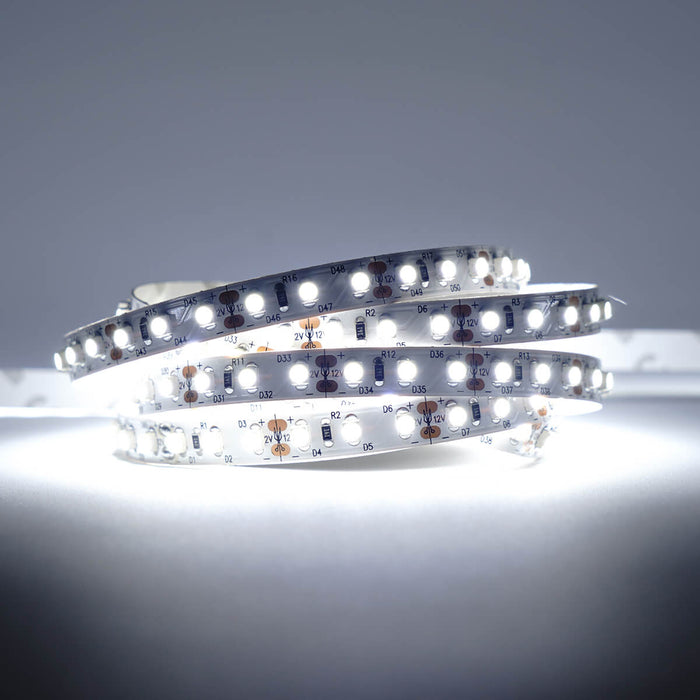

- Pure White: 6500K - 1106 lumens/m (crisp, daylight white)
- Natural White: 4000K - 1009 lumens/m (neutral, office lighting)

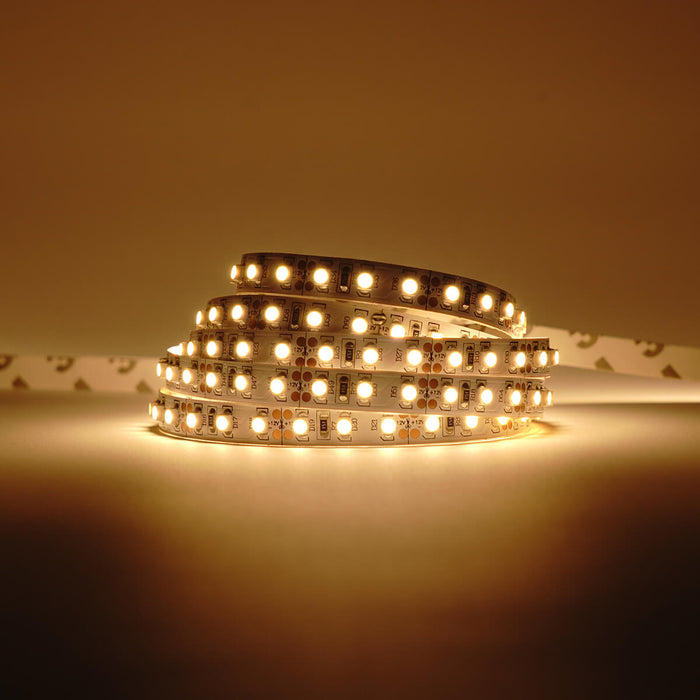

- Warm White: 3000K - 968 lumens/m (cosy, residential lighting)
- Very Warm White: 2700K - 1001 lumens/m (intimate, restaurant lighting)
- Colour Consistency: Maintained within single production batch
Installation & Compatibility
- Mounting: Pre-applied professional adhesive tape
- Surface Requirements: Clean, dry, degreased surface
- Power Supply: 24V constant voltage LED drivers only
- Heat Management: Standard PCB design suitable for general applications
- Connection: Solderable pads or connector compatible
Quality Notes
- Batch Consistency: LED strips from different production batches may have slight colour variations
- Wire Connection: Per-metre cuts may require separate wire connection
- Professional Installation: Recommended for commercial applications
- 2nd Gen Technology: Advanced SMD2835 chips deliver enhanced efficiency and performance with extended 5-year warranty coverage
