E10 Flat Cabochon Adaptor & Cap - 13 Colours
View full product details

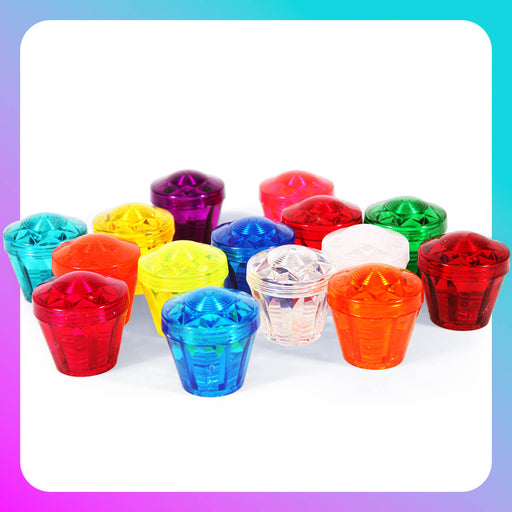

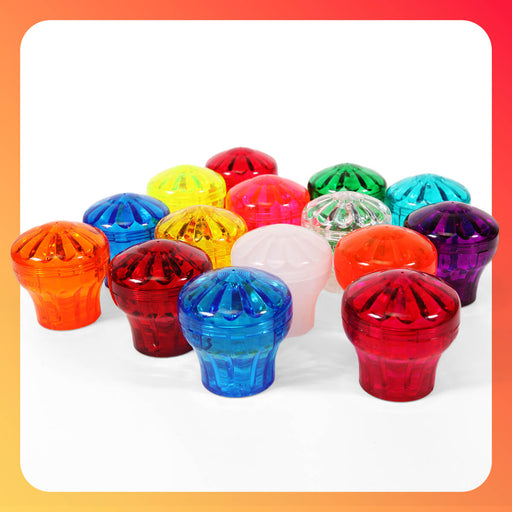

- E10 'UFO' Flat Cabochon Adaptor in White
With a choice of cap in 13 Colours:
Aqua, Clear, Orange, Yellow, Blue, Green, Red, Opal, Fuchsia, Purple, Fluorescent Pink, Fluorescent Yellow & Fluorescent Orange
The adaptor base is 47mm dia, and with the standard E10 40mm dia cap, the overall height is 21mm.
It has an extended back which protrudes 14mm and is 18mm dia.
A standard E10 lampholder would screw into the this part from the back
Our E10 Flat Fairground lights create a different effect from the standard cabochons, giving an stunning illumination to the face whilst being very low profile units.
They are made of multicolor transparent metachrylate and have a bright effect with central luminous lens.
You will need the following items to complete the fairground lights:
1. E10 Spike Lampholder and Nut
2. E10 24v LED or 24v or 230v Incandescent Bulb
3. 24v Power Supply Unit (PSU) if applicable
Drill a 14mm hole in your panel or letter face, push the spike lamp holder fitting through the back of the hole and screw the E10 Base to the front on the thread of the spike fitting. Easy.
The LED or incandescent bulb can be screwed in through the centre of the base and then the cap is screwed over the top.
This isn't only a very simple method for the initial fix, it is also perfect for the maintenance of the sign as you only need to be able to get to the face.
