RGBW BC-354F Controller with Remote - 20A
SKU R7-S9-A

RGBW BC-354F Controller with Remote - 20A

  • Voltage: 12v and 24v
  • Warranty: 3yr
£65.00 - £65.00
£65.00
£65.00 - £65.00
£65.00

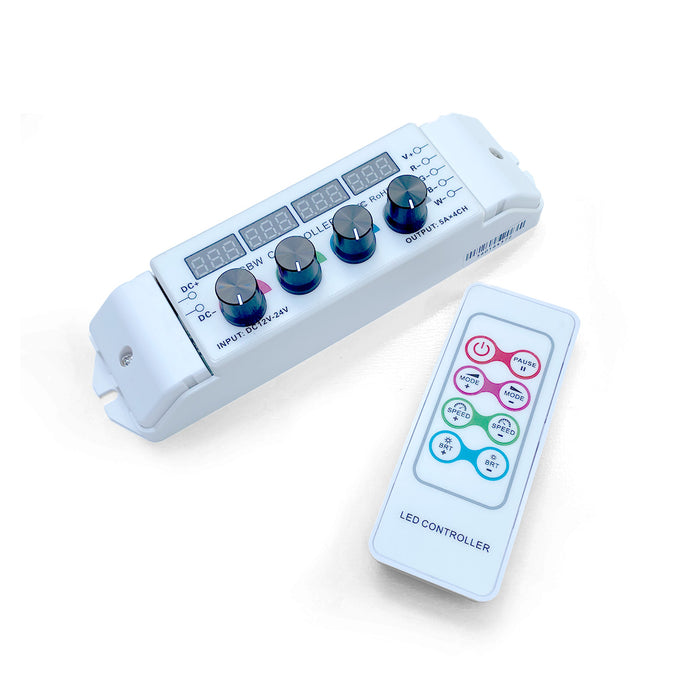

Our BC-354F RGBW Controller, with remote, is a universal high-performance unit for entire colour changing. The remote control allows you to change the usual program, speed and brightness settings, and the controlled itself has 4 rotary knobs to allow you to pick a DIY colour. The controller also has 37 pre-programmed modes to choose from with a simple push of a button.

The controller itself will need to be protected from the weather and can either be positioned inside the sign, a waterproof junction box or inside the building.

Perfect for use with our 12v/24v RGBW Modules & Strips.

  • Input Voltage: 12/24vdc
  • Max Current Load: 5A x 4 Channels MAX 20A
  • Max Output Power: 240w/480w (5v/12v/24v)
  • Working Temp: -30C ~ 55C
  • Controller Size: 176*46*30mm
  • Remote Size: 100*39*9mm
  • Working Frequency: 433.92Mhz
  • Remote Working Voltage: 3V
  • Range: 30m

Data Sheet
